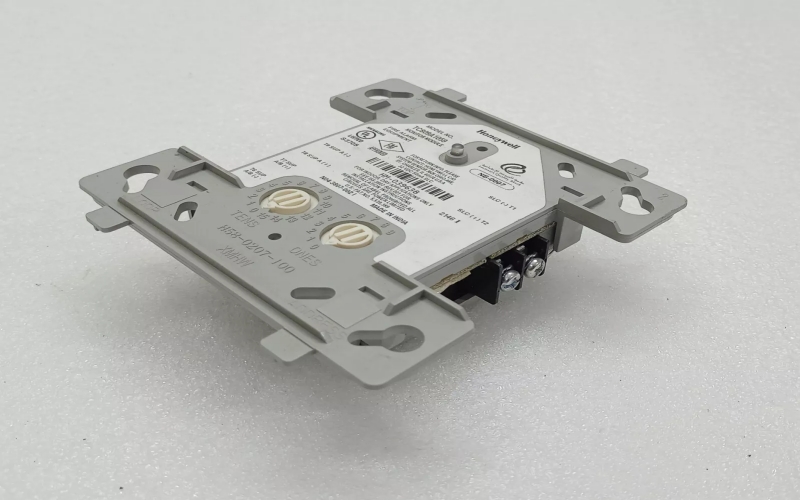

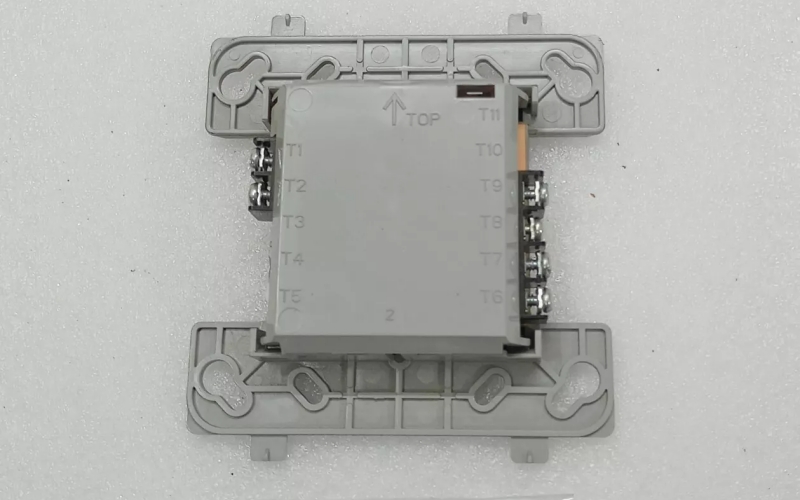

Honeywell TC809A1059 FlashScan® Monitor Module

General Description

The Honeywell TC809A1059 is a state-of-the-art FlashScan® Monitor Module for intelligent fire alarm systems. This module provides advanced monitoring capabilities for initiating devices, ensuring reliable performance and enhanced safety in commercial and industrial applications.

Technical Specifications of Honeywell TC809A1059

l Operating Voltage: 15 to 32 VDC

l Maximum Current Draw: 5.0 mA (LED on), 350 μA (LED flashing)

l Temperature Range: 32°F to 120°F (0°C to 49°C)

l Humidity Range: 10% to 93% (non-condensing)

l EOL Resistance: 47K ohms

l Maximum IDC Wiring Resistance: 40 ohms

l Dimensions: 4.5 in. (114 mm) high x 4 in. (102 mm) wide x 1.25 in. (32 mm) deep

l Weight: Approximately 16 oz. (454 g)

Detailed Features of Honeywell TC809A1059

l Addressable Input: Each module can be individually addressed using built-in rotary switches.

l LED Indicators: Features a panel-controlled LED that indicates normal operation and alarms.

l Fault-Tolerant Design: Supports two- and four-wire initiating device circuits for enhanced reliability.

l Compatibility: Designed for use with Honeywell's FS90 Plus Fire & Security and XLS1000 systems.

l Supervision Capabilities: Provides full analog supervision of circuits, ensuring prompt detection of faults.

Applications

The TC809A Monitor Module is ideal for:

A. Fire alarm systems in commercial buildings

B. Industrial facilities requiring reliable fire detection

C. Educational institutions with extensive safety needs

D. Any environment needing effective monitoring of fire alarm devices

Installation

Installation of the TC809A requires adherence to local codes and standards:

1. Mount the module directly to a standard electrical box.

2. Connect wiring according to the provided diagrams.

3. Set the module address using the rotary switches.

4. Ensure proper termination with a 47K ohm end-of-line resistor.

Related Part Numbers

l TC809B Monitor Module

l TC809D Dual Monitor Module
