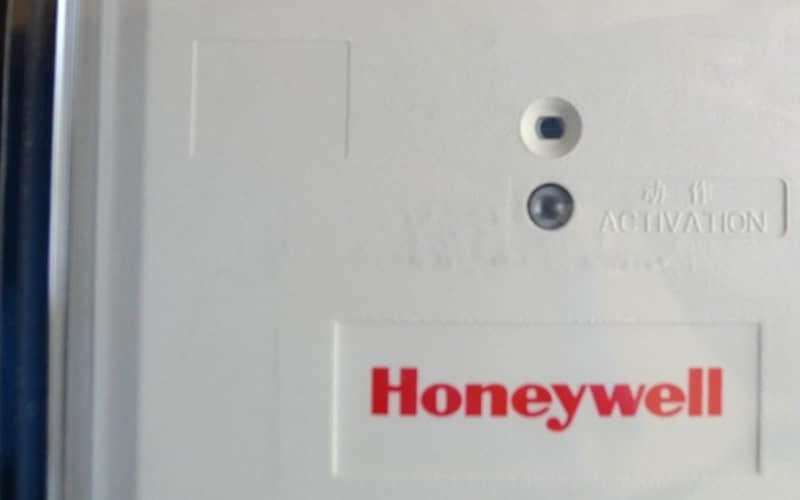

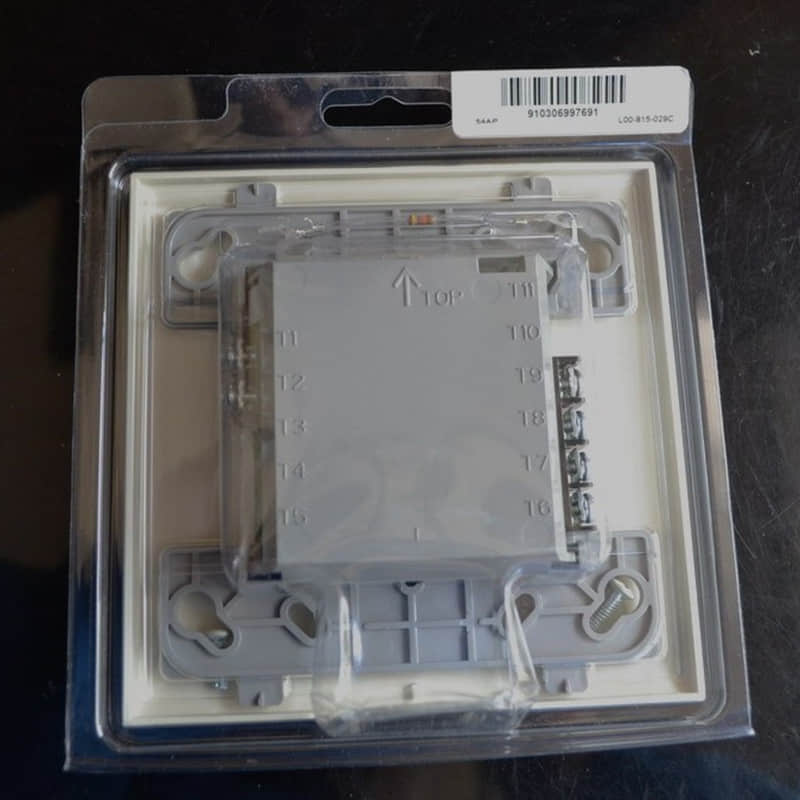

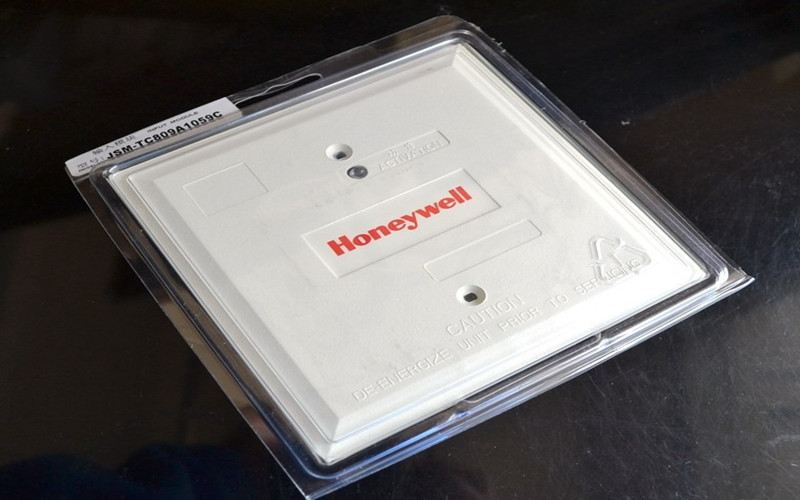

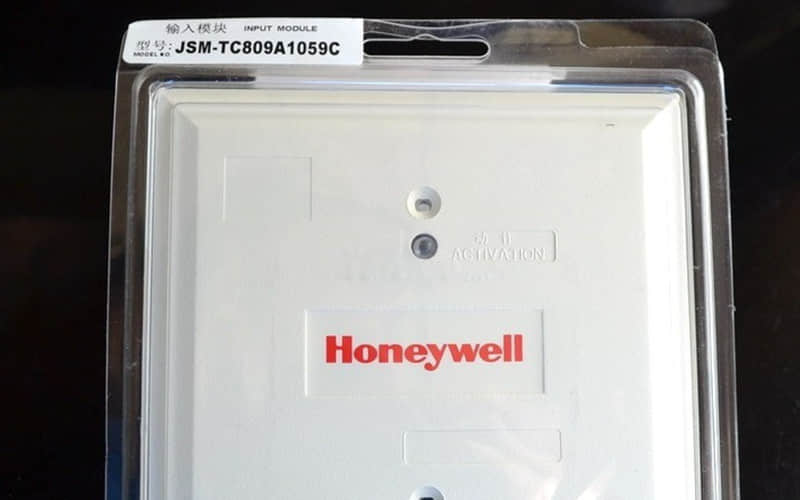

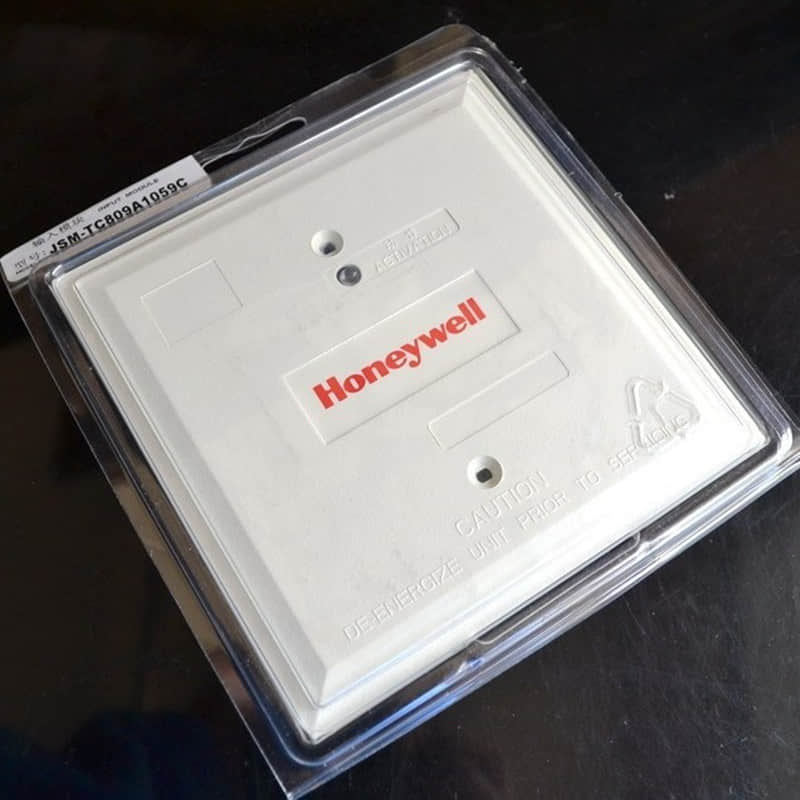

Honeywell JSM-TC809A1059C Input Monitoring Module

General Description:

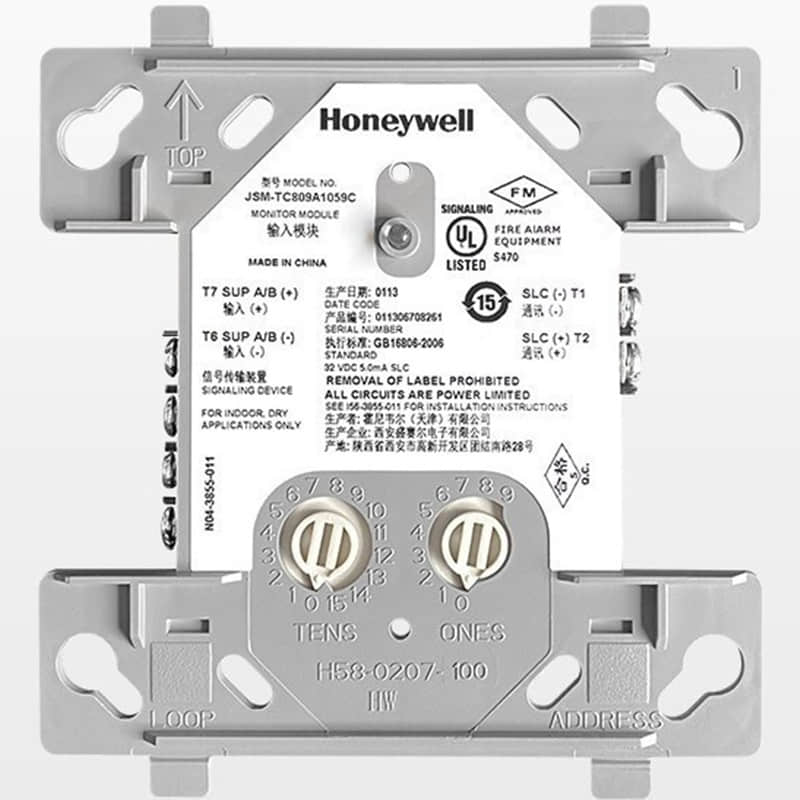

The Honeywell JSM-TC809A1059C Input Monitoring Module is designed for intelligent two-wire systems, allowing users to set the module address using an integrated decimal coding switch. This module supports both two-wire and four-wire fault-tolerant loop connections, enabling monitoring of devices with normally open contacts and reporting fire alarms. It can also monitor safety devices with normally open or normally closed contacts. The panel controls the LED indicator on the module.

Technical Specifications of Honeywell JSM-TC809A1059C :

l Normal Operating Voltage: 15-32 VDC

l Maximum LED Current: 5.0 mA

l Average Operating Current: 475 μA (group poll), 450 μA (direct poll), 600 μA (max during communication with shorted loop)

l End-of-Line Resistance: 47 kΩ

l Maximum Loop Resistance: 1500 Ω

l Maximum Loop Voltage: 11 V

l Maximum Loop Current: 450 μA

l Operating Temperature Range: -10°C to 55°C (GB), 0°C to 49°C (UL)

l Operating Humidity Range: 10% to 95% RH (GB), 10% to 93% RH (UL), non-condensing

l Dimensions: 124.6 mm x 124.6 mm x 57.5 mm

l Compatible with SMB500/W module back box

l Standards Compliance: GB16806-2006 & UL864
