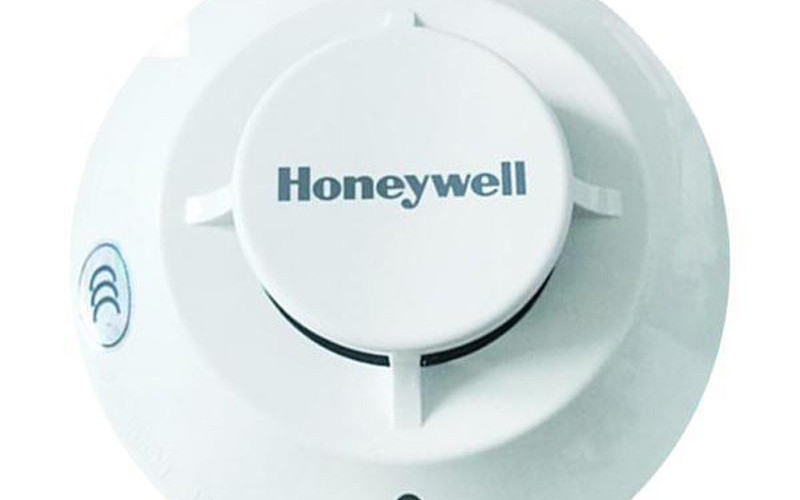

Honeywell JTY-GD-TC806B1076C Smoke Fire Detector

General Description:

The Honeywell JTY-GD-TC806B1076C Point-type Photoelectric Smoke Fire Detector is an addressable detector that provides precise fire location information to emergency personnel. It features adjustable sensitivity settings for various environments. By collecting smoke concentration data, the control panel can determine when maintenance is required.

The JTY-GD-TC806B1076C employs a unique optical detection chamber design, allowing quick and reliable responses to multiple fire sources. This series supports the ASIC protocol.

Product Features of Honeywell JTY-GD-TC806B1076C：

1. Sleek and attractive design

2. Stable noise-resistant communication technology

3. Decimal address setting

4. Dual-colour, dual LED design for 360-degree visibility

5. Green blinking in normal status, solid red during alarms

6. Built-in magnetic test switch or controller-controlled automatic testing

7. This modern ultra-thin, intelligent analogue photoelectric smoke detector has a dedicated processing chip. Its sensitivity can be adjusted through software based on the environment, and it continuously displays changes in the concentration of smoke in real-time. It effectively protects against insects and dirt while resisting electromagnetic interference.

8. The system automatically compensates for non-fire factors like dust, temperature, and humidity, ensuring stable sensitivity and significantly reducing false alarm rates.

Technical Specifications of Honeywell JTY-GD-TC806B1076C :

A. Ultra-thin design with aesthetic appeal

B. Advanced photoelectric smoke chamber with excellent signal-to-noise ratio

C. Compatible with 500 series products

D. Resistant to strong airflow (up to 20 m/s) without false alarms

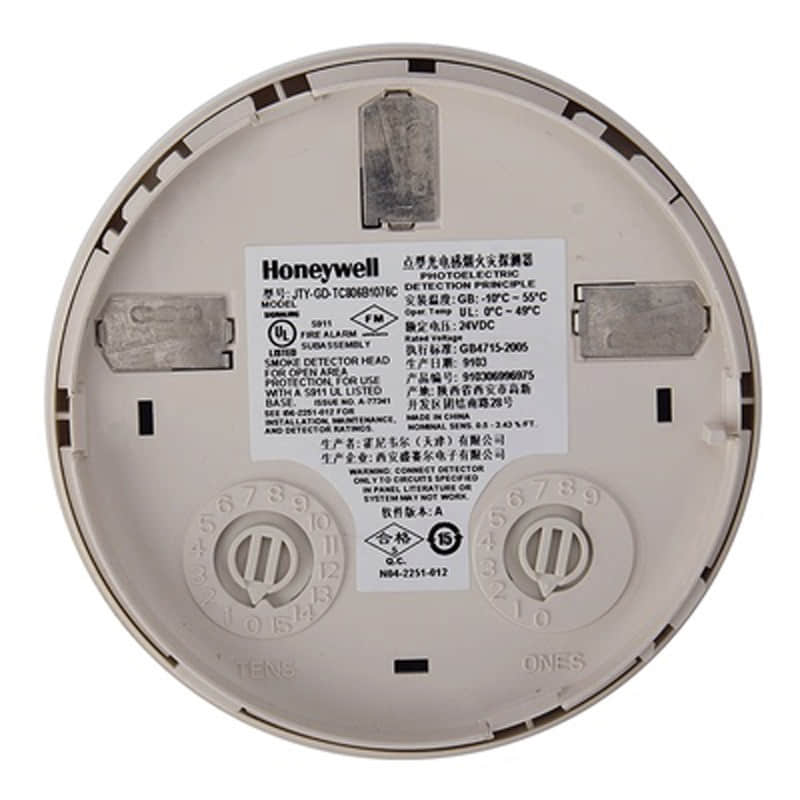

E. A two-wire system with polarity; decimal address DIP switch located at the base

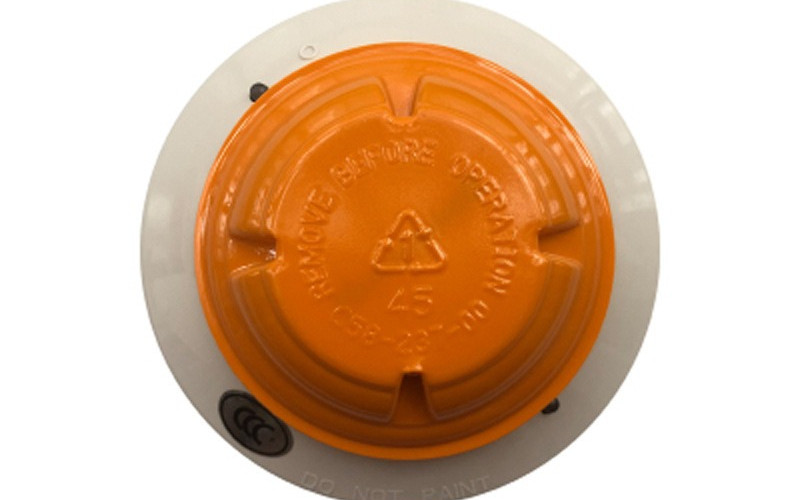

F. Sealed against dust, insects, and back pressure

G. Special shielding measures for strong anti-interference performance

H. Direct decimal address setting for ease of use

I. Dual LED display visible from 360 degrees

J. LED blinking state controlled by the controller for monitoring or alarm status

K. Sensitivity testing hole and magnetic testing for easy field checks

L. Integrated electronic circuitry for easy maintenance and replacement

M. Remote indication capability (can include door lights)

N. Complies with UL268, EN54, and GB4715-93 standards

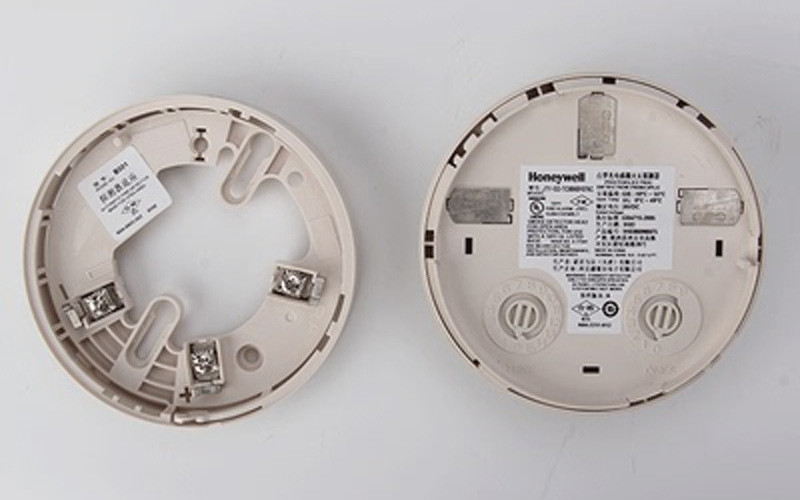

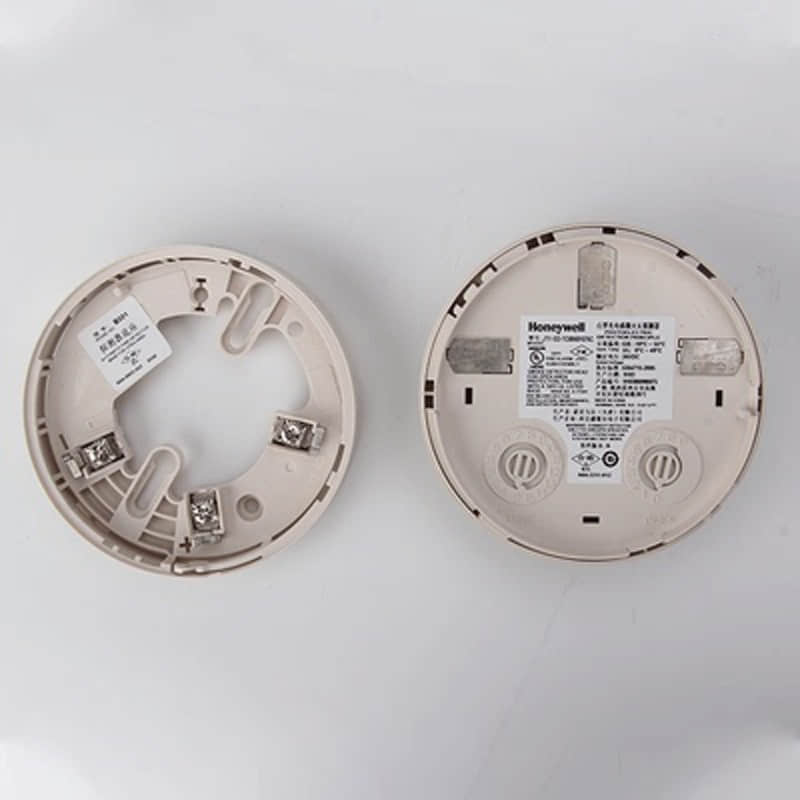

O. Compatible with base 14506414-002 and related controllers

P. Removable top cover for easy cleaning and maintenance on-site

Q. Static current: ≤230μA (at 24VDC)

R. Alarm current: 6.5mA (at 24VDC, LED constant on)

S. Wind speed resistance: 20 m/s
