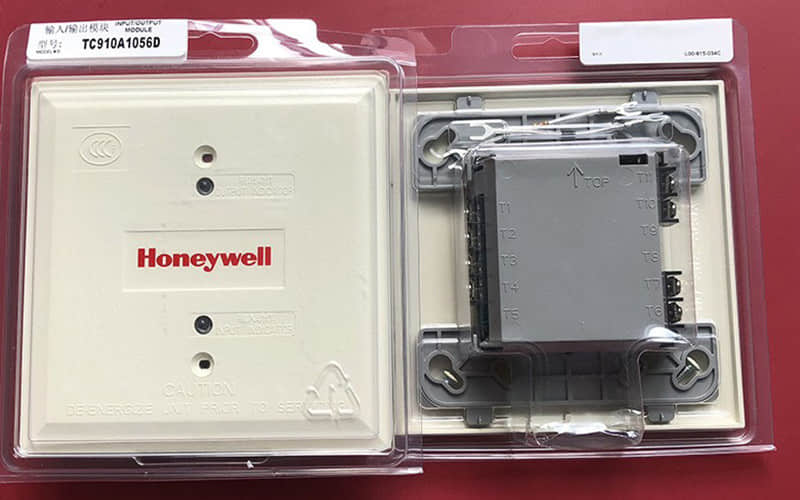

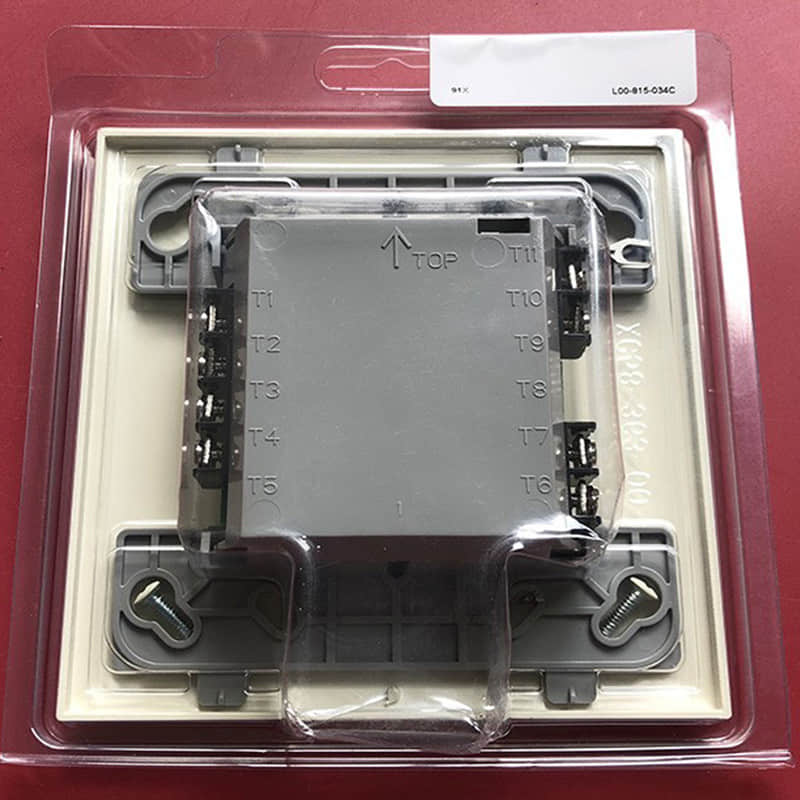

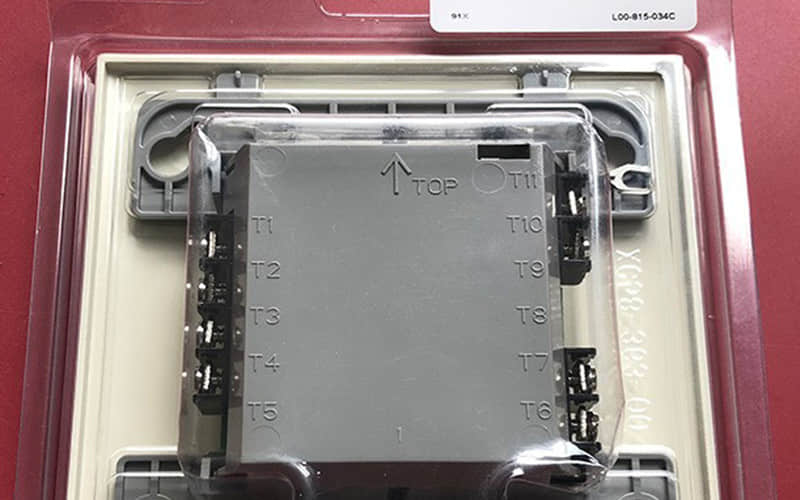

Honeywell of TC910A1056D Intelligent Input/Output Module

The TC910A1056D module features single output and single input functionality. Its dual LED indicators can display off, flashing, or steady states based on commands from the controller. The input channel monitors passive ordinarily open contacts and feeds their status back to the controller. The output channel provides a set of normally open contacts and monitors the output wiring and external power supply.

The Honeywell TC910A1056D Intelligent Input and Output Module features single output and single input functionality. Its dual LED indicators can display off, flashing, or steady states based on commands from the control panel.

The input channel monitors passive ordinarily open contacts and feeds their status back to the controller. The output channel provides a set of normally open contacts and monitors the output wiring and external power supply.

Many systems commonly use this smart control module. These include programmable thermostat systems and smart thermostats. Honeywell Home solutions and energy-efficient control panels also use it.

Andere wichtige Honeywell-Modelle sind:

- Honeywell TC809A1059

- Honeywell TC810N1013

- Honeywell TC10PEU

- Honeywell TP910A

- Honeywell TC806D1049

- Honeywell T991A1061/U

- Honeywell TC810R1024.

ST3000 transmitter, STD725 pressure transmitter, STD810 pressure transmitter, and STT850 temperature transmitter. They also provide strong performance in industrial settings. Many of these devices feature built-in type identification that automatically identifies all criteria for seamless integration.

Honeywell’s range also covers efficient 7-day programmable thermostat solutions for air conditioners, combining energy-efficient product features with reliable automation.

2. What is the lifespan of a Honeywell thermostat?

Most Honeywell thermostats last 10 to 15 years under normal use.

l Mechanical thermostats can last approximately 20 years but may lose calibration over time.

l Digital and smart thermostats (e.g., Honeywell Home smart thermostats) typically last around 10 years because of electronics/software ageing.

l Replacement signs include temperature inconsistencies, an unresponsive control panel, higher energy bills, or failed programmable thermostat schedules.

3 . How to Reset the Honeywell Temperature Sensor?

A. Wireless sensors: Take out the batteries for 30 seconds. Put them back in, then press the connect button until the LED blinks. After that, re-pair with the thermostat.

B. Wired sensors: power off, disconnect briefly, reconnect for auto-calibration.

C. Built-in thermostat sensors: press the reset button combinations. This varies by model, such as the T-series or 8000 series smart thermostats. You can also reinsert the batteries.

D. Always refer to your model guide, as steps may differ across products.

4. How to check the Honeywell model?

To find your Honeywell model, look for the label or sticker on the device. Usually, it is on the back, bottom, or battery compartment.

Models like Honeywell TC910A1056D, Honeywell TC809A1059, or TC806D1049 will have alphanumeric codes. If missing, check the user manual, control panel settings, Honeywell Home app, or packaging. You may also enter the serial number on Honeywell’s official site or contact support for verification.

5. Features of TC910A1056D Intelligent Input/Output Module

A. Built-in Model Identification System: The Control panel automatically identifies the module.

 B. Direct Loop Power Supply: No extra supply needed.

 C. Anti-Interference Capability: Resistant to EMF/RFI.

 D. SEMS Screws with Clips: Easy wiring.

 E. Decimal Addressing (101-199) via CP900M encoder.

 F. LED Indicators: Off, flashing, or steady per controller commands.

6. Technical Specifications of TC910A1056D

l Model: TC910A1056D

l Operating Voltage: 15~32 VDC

l Max Current: 3.5 mA @ 24 VDC (LED steady)

l Temperature: -10°C to 55°C

l Humidity: 10%–95% RH

l Static Current: 350 μA @ 24 VDC

l Rated External Voltage: DC 24V

l Max External Power Supply: 2A

7. Applications

l Fire Alarm Systems

l Industrial Automation

l Commercial Buildings

l Security Systems

l Air conditioners and programmable thermostat integration

The intelligent control module ensures reliable product features and system efficiency across industries.

8. Installation

Connect to the fire alarm control panel using specified wiring and follow safety regulations.

9 .Related Part Numbers

l Honeywell TC910A1057D Input Module

l Honeywell TC910A1058D Output Module
