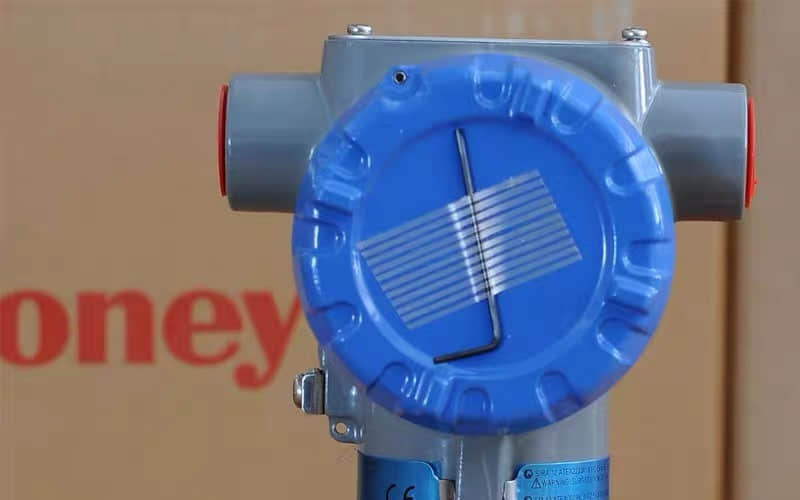

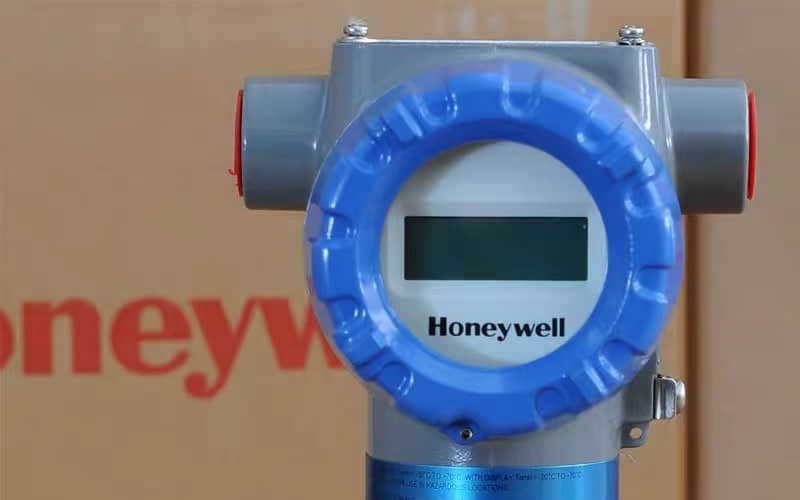

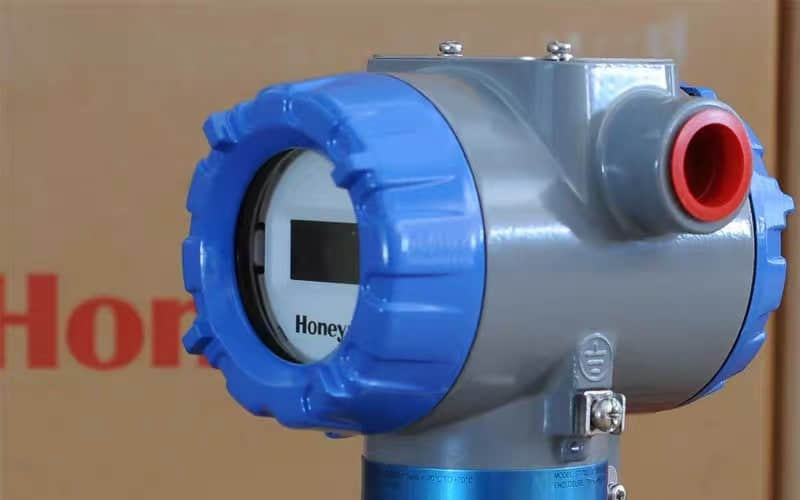

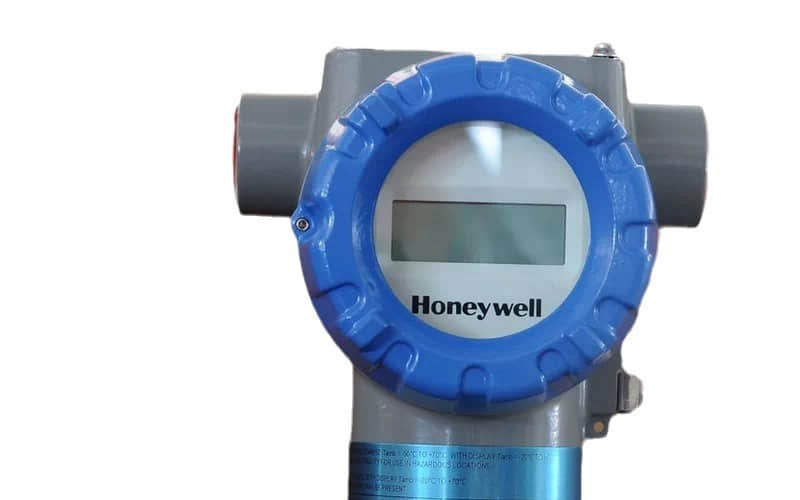

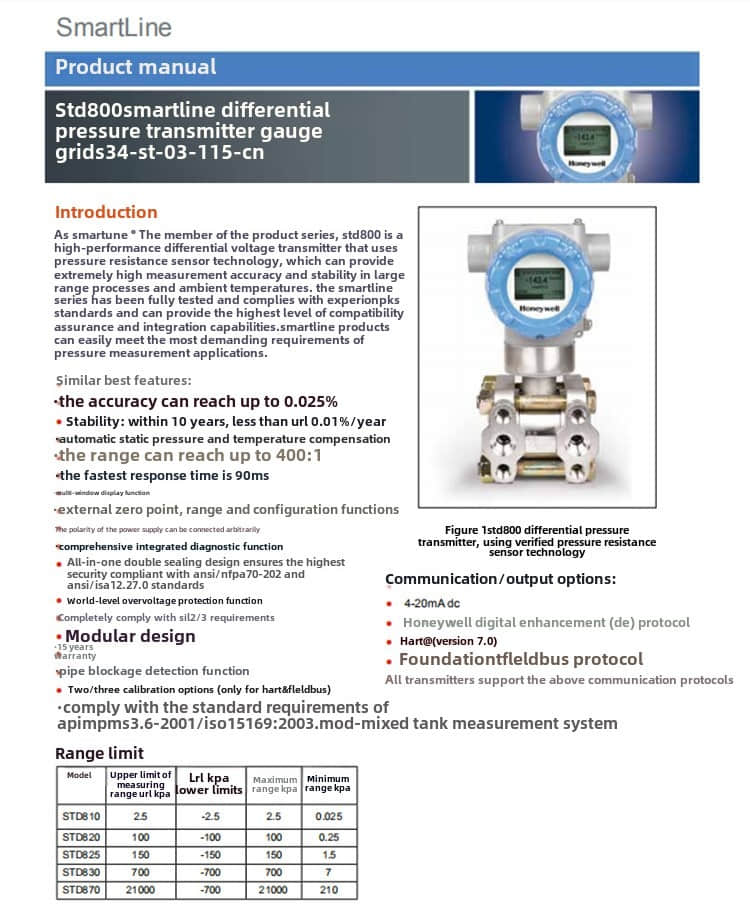

Honeywell STD810 Differential Pressure Transmitter

1.General Description

The Honeywell STD810 Differential Pressure Transmitter is a high-quality device. It measures differential pressure accurately in many industrial and important process applications. std810 includes only zero shift with static pressure

Part of the SmartLine® family, the STD810 SmartLine Differential Pressure Transmitter offers advanced piezoresistive sensor technology combined with integrated temperature and static pressure compensation. The transmitter includes zero shift with static pressure functionality to ensure consistent accuracy under changing operating conditions.

The STD810 offers a rangeability of up to 100:1 and an accuracy of 0.035%. It meets the high demands for pressure measurement. This includes uses in custody transfer and energy management.

The team tested the system completely. They made sure it works well with Experion® PKS. This ensures smooth integration with Honeywell process control systems.

Its tough design and smart technology make it great for important tasks. It meets FM Explosion Proof, Intrinsically Safe, Non-incendive, and Dustproof standards. This ensures high reliability and safety for valuable applications.

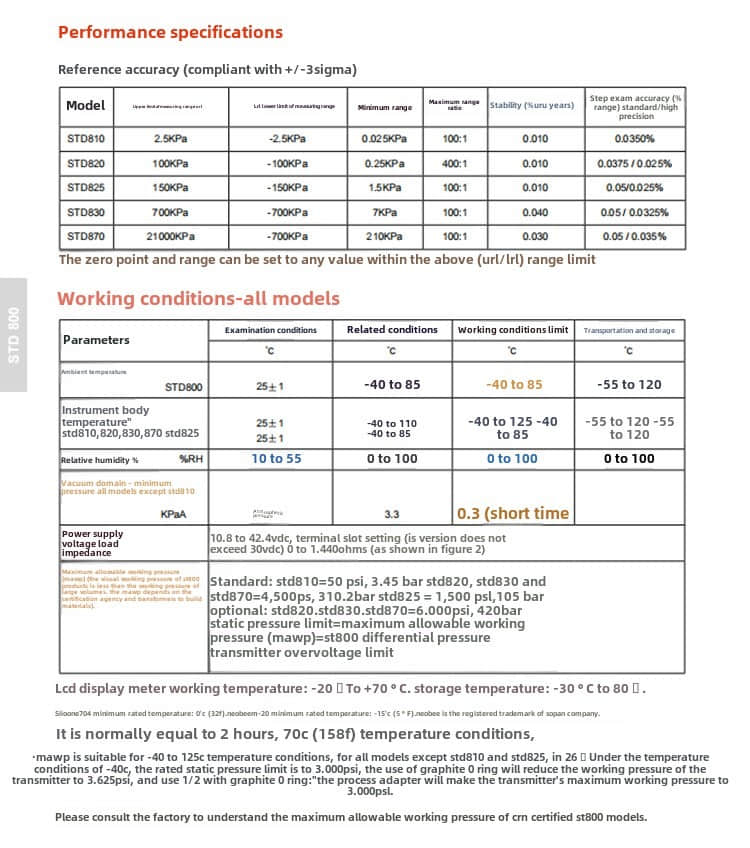

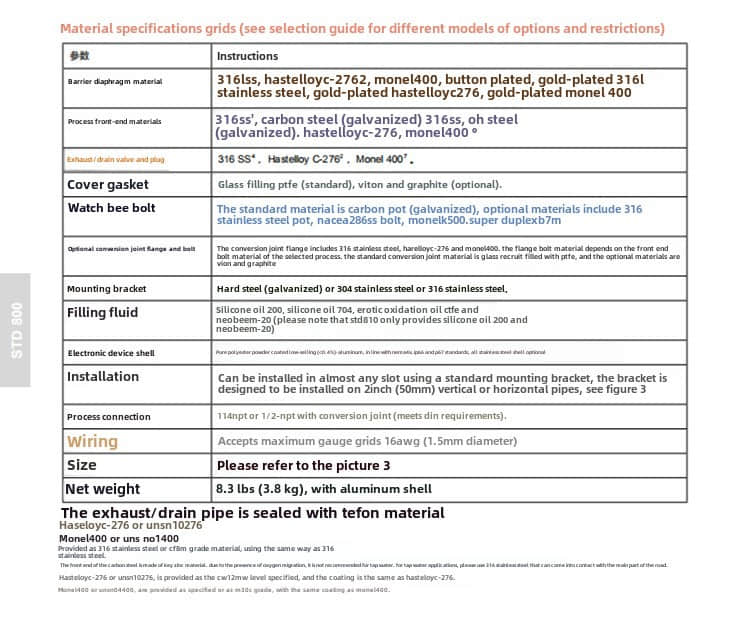

2.Technical Specifications of st800 differential pressure transmitters

l Measurement Range: -10 to 10 inH₂O (-25 to 25 bar)

l Accuracy: ±0.0375% of calibrated span (up to 0.035% typical)

l Rangeability: Up to 100:1 (application-dependent)

l Stability: ±0.01% of URL per year for 10 years

l Response Time: 90 ms

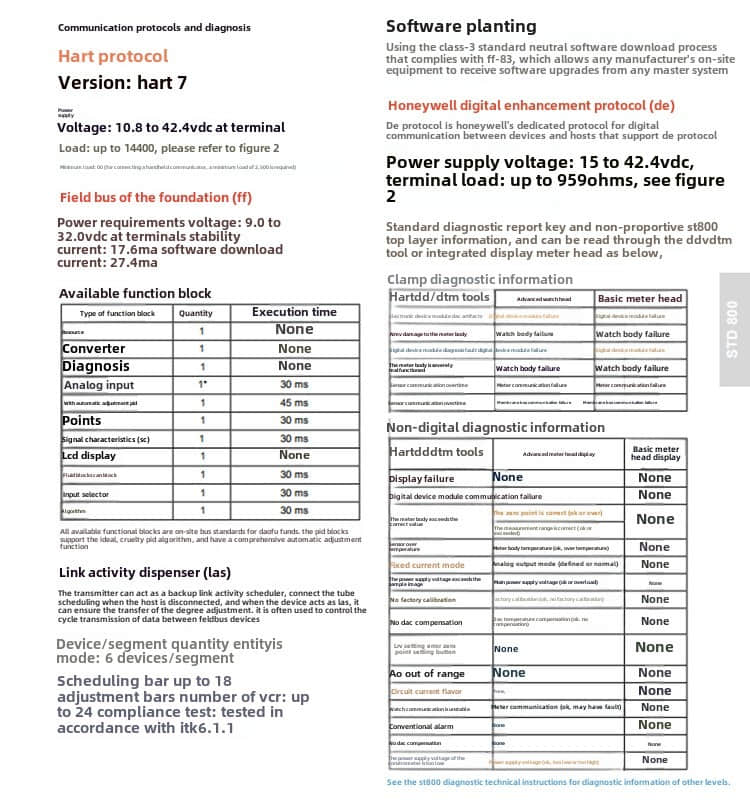

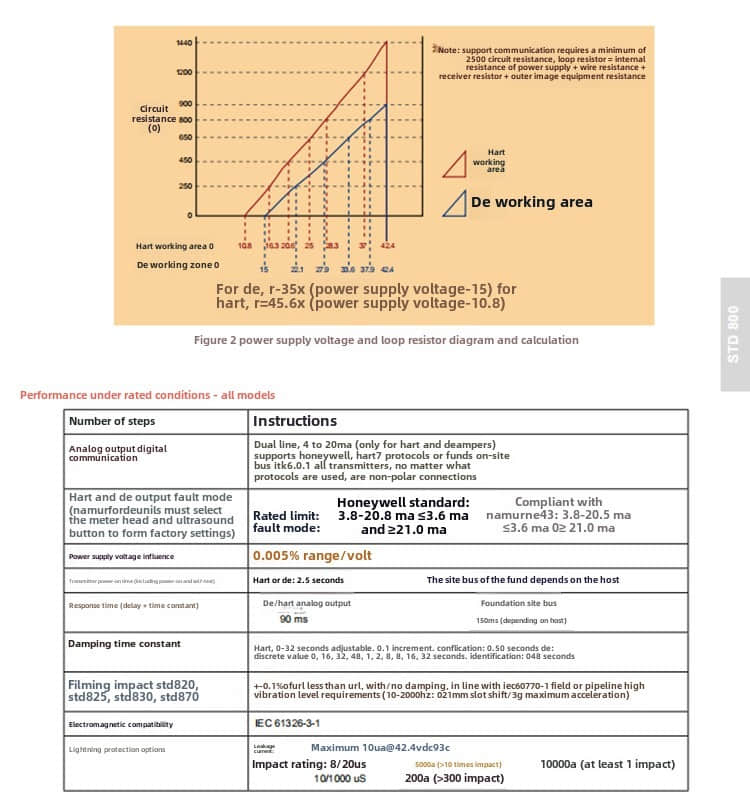

l Output Options: 4-20mA, HART®, Honeywell Digitally Enhanced (DE), FOUNDATION™ Fieldbus

l Overpressure Protection: Up to 50 psi (3.45 bar)

l Operating Temperature: -20°C to 70°C

l Storage Temperature: -30°C to 80°C

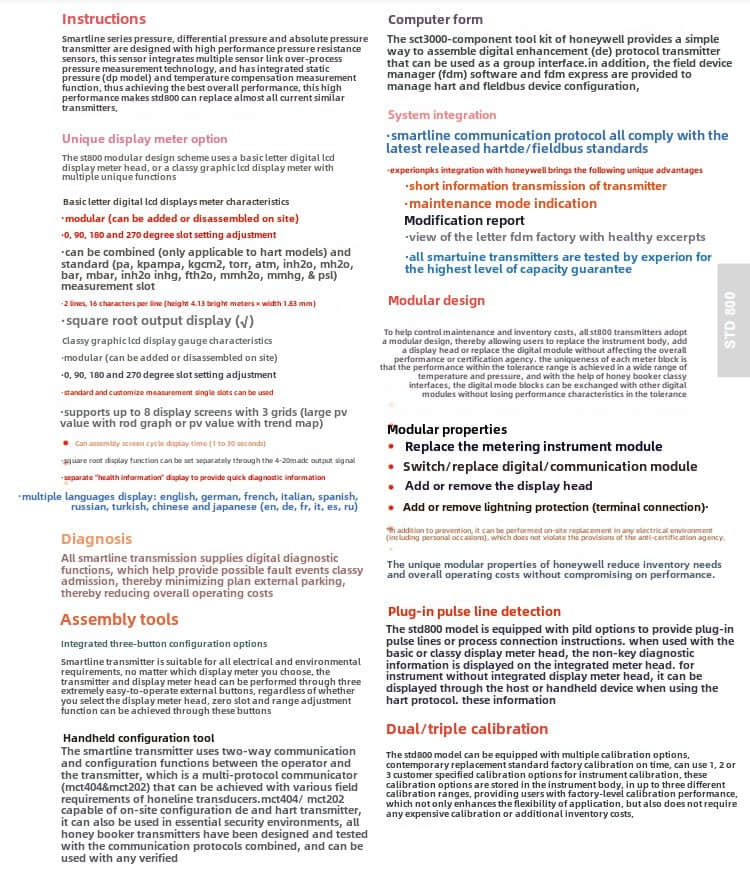

3.Honeywell STD810 Features

l High-performance SmartLine differential pressure transmitter technology

l Automatic static pressure and temperature compensation for enhanced stability

l Wide rangeability up to 400:1

l External zero, span, and configuration adjustments

l Polarity-insensitive electrical connections for simplified wiring

l Comprehensive onboard diagnostics and health monitoring

l Integral Dual Seal design for improved process safety

l FM Explosion Proof, Intrinsically Safe, Non-incendive, and Dustproof certifications

l Full compliance with Experion® PKS for optimized system performance

l Designed for critical process loops, custody transfer, and energy applications

4.Applications

l Flow measurement in critical process loops

l Level measurement in tanks and vessels

l Filter monitoring for clogging or contamination detection

l Custody transfer and energy balance monitoring

l Pressure measurement in high-value applications requiring precision and stability

l Process loops and high-pressure systems where safety and accuracy are essential

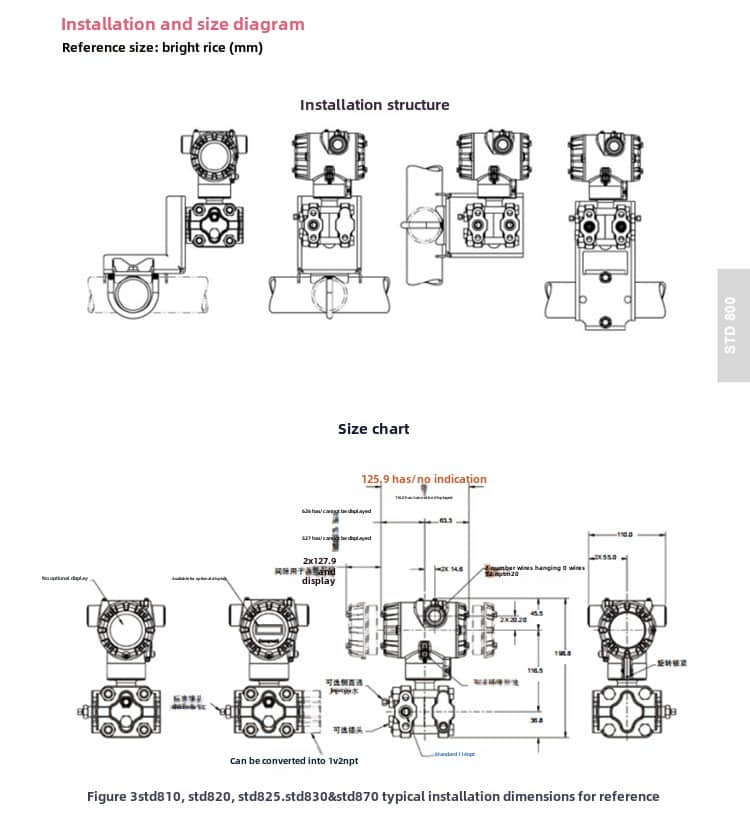

5.Honeywell STD810 Installation Procedure

A. Preparation:

 Configure the transmitter for its intended process measurement environment, considering static pressure and temperature conditions.

B. Mounting:

 Install the transmitter in a vibration-free, moderate-temperature area using appropriate process connections (e.g., 1/2" NPT or flange).

C. Wiring:

 Connect the differential pressure transmitter to the control system via the specified output (4–20mA, HART®, etc.). The polarity-insensitive design simplifies installation.

D. Configuration:

 Use the local display or configuration tools to adjust parameters such as zero, span, and damping.

E. Testing:

 Apply known pressure differentials to verify the transmitter’s output accuracy and performance under static pressure conditions.

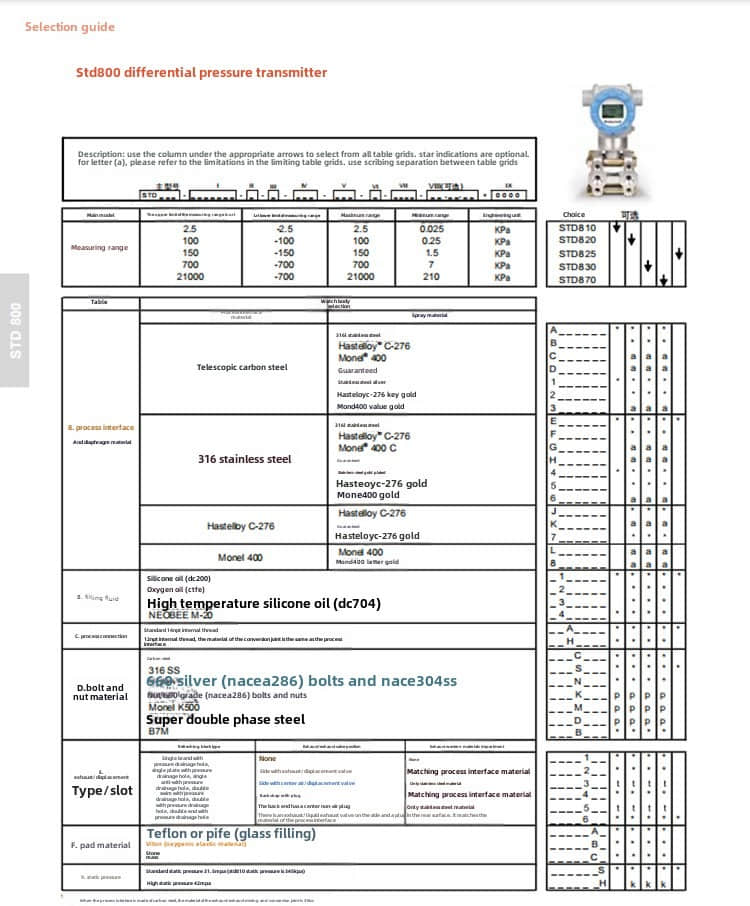

6.Honeywell STD810 Related Part Numbers

l Terminal Assembly: 50075472-531 (HART/DE without lightning protection)

l End Cap, Display (Aluminum): 50049832-501

l Meter Body Gasket Kit: 51452865-501 (Glass Filled PTFE)

l Bolt and Nut Kit: 51452866-501 (Carbon steel)
