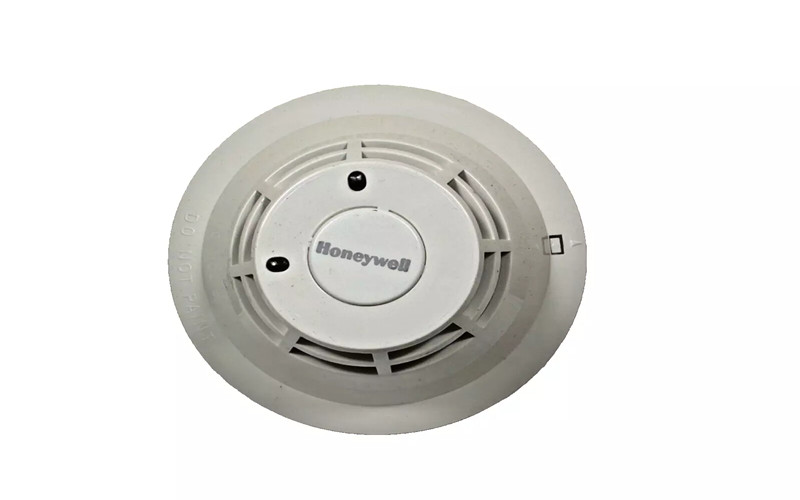

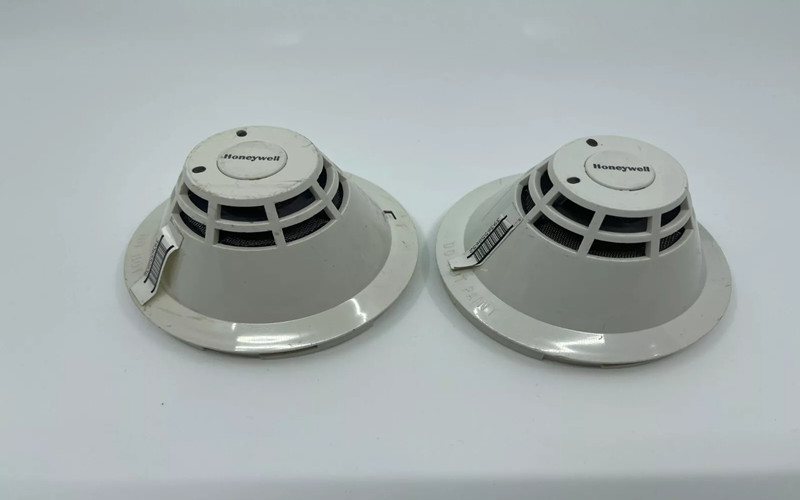

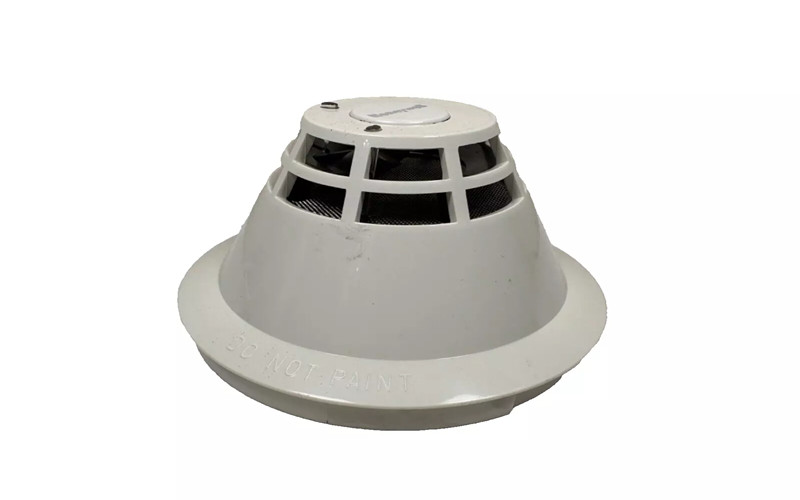

Honeywell XLS-PS Intelligent Photo Detector
Looking for reliable addressable smoke detection for commercial or industrial fire safety systems? This technical guide covers the Honeywell XLS-PS intelligent photo detector, detailing its photoelectric sensing technology, datasheet specifications, application scenarios, installation guidelines, and related Honeywell XLS system components.
General Description of Honeywell XLS-PS
The Honeywell XLS-PS is an advanced, intelligent photoelectric smoke detector that provides reliable smoke detection for fire alarm systems. This detector utilizes sophisticated sensing technology to identify smoke produced by a wide range of combustion sources, ensuring prompt alerts in case of fire. Its plug-in design allows easy installation and maintenance, making it versatile for various applications.
Technical Specifications & Datasheet Overview
l Type: Intelligent Photoelectric Smoke Detector
l Operating Voltage: 15 to 32 VDC
l Current Draw: 20 mA (maximum)
l Sensitivity Range: 0.67% to 3.77%/ft
l Temperature Range: 32°F to 120°F (0°C to 49°C)
l Humidity Range: 10% to 93% (non-condensing)
l Dimensions: 4.5" diameter x 2.5" height
l Weight: Approximately 0.40 lbs (0.18 kg)
l Certifications: UL Listed, FM Approved
Detailed Features
The XLS-PS includes:
A. Intelligent Photoelectric Sensing Technology: Provides enhanced detection capabilities for various types of smoke.
B. Plug-in Design: Facilitates easy installation and replacement without extensive rewiring.
C. Dual LED Indicators: These indicators offer clear visual feedback on operational status; green indicates regular operation, while red signals an alarm condition.
D. Compatibility with Fire Alarm Control Panels: Works seamlessly with multiple Honeywell fire alarm systems, ensuring flexibility in system design.
Applications of Honeywell XLS-PS
The Honeywell XLS-PS Intelligent Photo Detector is suitable for a wide range of applications, including:
1. Commercial Buildings: These are ideal for office spaces, retail environments, and other commercial properties where reliable smoke detection is critical.
2. Industrial Facilities: Provides essential monitoring in manufacturing plants and warehouses to ensure safety against fire hazards.
3. Residential Complexes: Enhances fire safety in apartment buildings and multi-family dwellings by offering dependable smoke detection.
4. Educational Institutions: Suitable for schools and universities, ensuring the safety of students and staff by providing efficient fire alarm coverage.
5. This detector's advanced sensing technology makes it particularly effective in environments where early smoke detection is crucial. It helps minimize potential damage and ensure occupant safety.
Installation
Due to its plug-in design, installing the XLS-PS is straightforward. Using appropriate mounting hardware, the detector can be easily mounted on standard electrical boxes or surfaces. Following local codes and regulations during installation is essential to ensure optimal performance and compliance with safety standards.
Related Part Numbers
l Honeywell XLS-ELEM Intelligent Module
l Honeywell XLS3000 Fire Alarm Control Panel
Frequently Asked Questions (FAQ)
Q1: What fire alarm control panels are compatible with the Honeywell XLS-PS photo detector?
A: The XLS-PS is an intelligent addressable smoke detector specifically designed for seamless integration with Honeywell XLS series systems, including the Honeywell XLS3000 fire alarm control panel.
Q2: What do the dual LED indicators on the Honeywell XLS-PS signify?
A: The dual LEDs provide 360-degree visual status verification: flashing green indicates normal operational polling, while continuous solid red indicates an active fire alarm condition.
Q3: Where can I download the official Honeywell XLS-PS datasheet PDF, manual, or request a price quote?
A: Complete technical datasheets, wiring schematics, and factory-certified price quotes can be requested directly by emailing our technical sales engineering team at [email protected].
