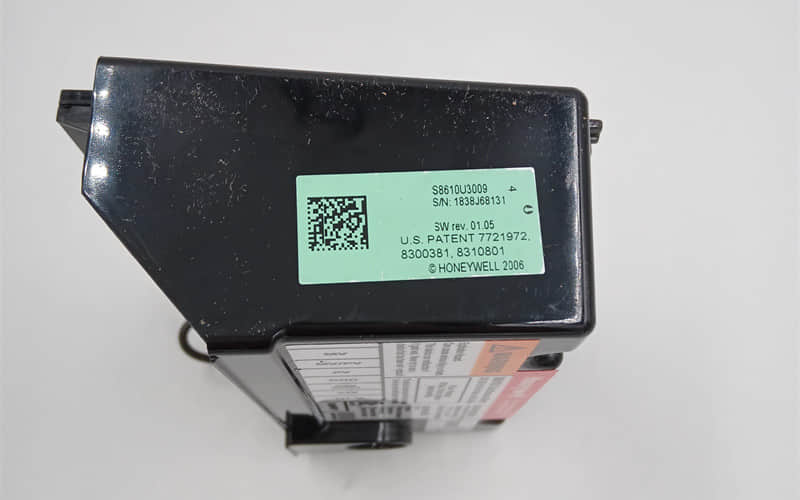

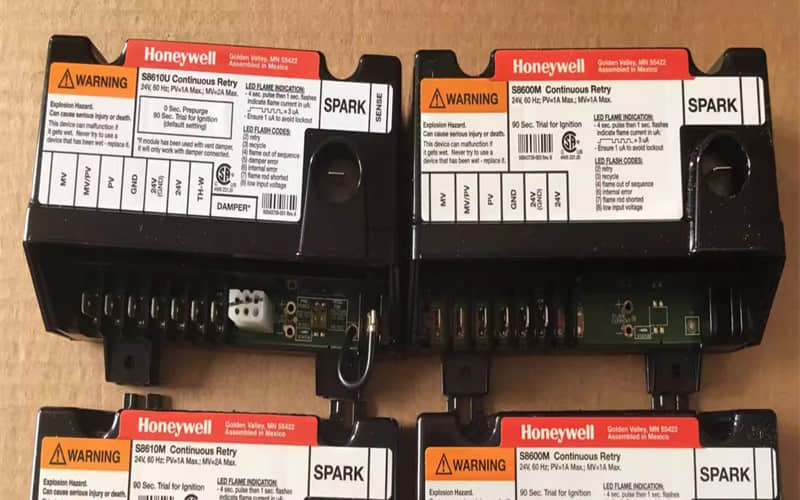

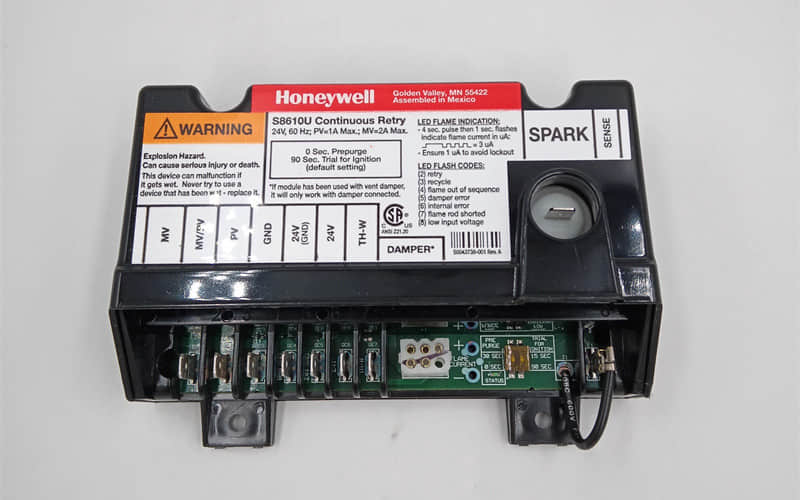

Honeywell S8610U3009 Furnace Intermittent Pilot Control

1.General Description

The Honeywell S8610U3009 is an intermittent pilot control for furnaces. People also call it the Honeywell S8610U3009/U Universal Intermittent Pilot Ignition Module. This module helps with the ignition sequence, flame monitoring, and safety shutoff for furnaces, boilers, and water heaters. It offers electronic control of most intermittent pilot ignition systems, automatically lighting the pilot burner and monitoring the flame using a flame rectification system.

This module manages the gas valve, pilot, and main burner, ensuring safe startup, operation, and shutdown. Compatible with natural and LP gas systems, it operates on 24 VAC and features diagnostic LED indicators. Its universal design replaces multiple Honeywell and competitive models, making it ideal for residential and light commercial heating applications.

2.Honeywell S8610U3009 Cross Reference

The Honeywell S8610U Universal Intermittent Pilot Ignition Control is made to replace many older pilot controls. This includes models from White-Rodgers, Robertshaw, and Resideo.

Highly beneficial for retrofitting and service work. It supports single-rod and dual-rod flame sensing and works on natural and LP gas systems. When cross-referencing, this Honeywell S8610U3009 Honeywell ignition module effectively replaces over 400 part numbers, making it a reliable universal substitute for older modules.

3.Honeywell S8610U Error Codes

2 flashes: Pilot flame not detected (~5-minute retry delay)

3 flashes: Flame failed during a run cycle

4 flashes: Flame sensed with no call for pilot

5 flashes: Vent damper fault (failed to open or close)

6 flashes: Internal control fault (module error)

7 flashes: Flame rod shorted to ground (or flame-sense circuit fault)

8 flashes: Low voltage detected (24 VAC supply low)

4.Specification

l Type: Universal Intermittent Pilot Control Module

l Model: S8610U3009

l Voltage: 24 VAC, 60 Hz

l Gas Type: Natural Gas or LP (Propane)

l Ignition Type: Intermittent Pilot

l Flame Detection: Flame rectification (single or dual rod)

l Max Gas Valve Rating: 0.5 Amps (pilot), 1 Amp (main burner)

l Operating Temperature: 0°F to 175°F (-18°C to 79°C)

l Mounting: Wall or bracket mount, universal design

l Dimensions: Approx. 3.5" x 2.5" x 1.5"

l Safety Features: Automatic retry, flame supervision, gas shutoff if pilot fails

l Compatibility: Replaces multiple White-Rodgers, Robertshaw, and Resideo models

l LED Diagnostics: Flash codes for troubleshooting

5.Application

The Honeywell S8610U3009 /U Furnace Intermittent Pilot Control is made for homes and small businesses. It works with heating systems that use intermittent pilot ignition. It controls the ignition sequence, monitors the flame, and shuts off when needed. It manages pilot ignition, main burner operation, and flame sensing to ensure safe startup and operation.

This device works with natural gas and LP systems. It supports single-rod or dual-rod flame sensing. This makes it great for retrofits and repairs.

Its universal design lets it replace many older Honeywell, White-Rodgers, and Robertshaw modules. This improves reliability and safety in heating applications.

6.Related Part Numbers

Honeywell

- S8610U1003

- S8610F1008

- S8610M1003

- S8610U1011

- S8610F1000

- S8610U1001

- S8610F1002

Honeywell R4343E1014 Flame Detector Relay.

Resideo S8600H3002 Pilot Control Ignition Module
