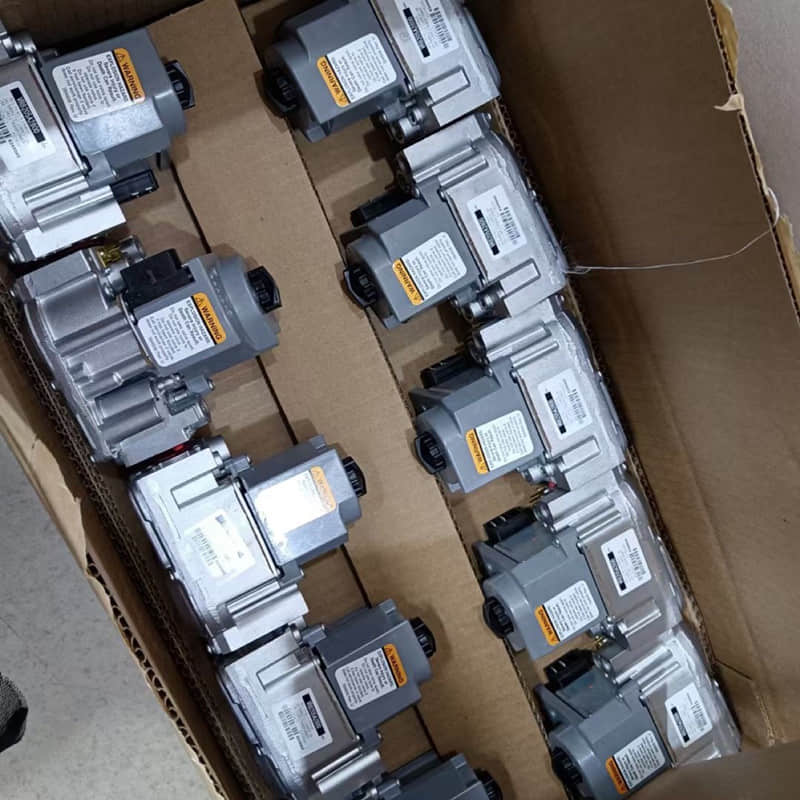

Honeywell VR8215S1503 Ignition Gas Valve

1. Introduction

The Honeywell VR8215S1503 is a gas valve. People also know it as the VR8215S1503 gas valve, Honeywell VR8215S1503, and Resideo VR8215S1503.

Honeywell furnaces and other systems use this valve. Engineers design it for a combination gas control. It works with hot surface and direct spark ignition systems.

This 24 VAC gas-fired ignition valve is small and works well for gas appliances. It can handle capacities from 15,000 to 200,000 BTU per hour.

This is equal to 30 to 415 cubic feet per hour. It has a manual valve, two automatic operators, and a built-in pressure regulator. This setup ensures precise control of the heat delivered.

Easy-to-reach adjustments and wiring connections make installation and maintenance simple. This design is perfect for HVAC systems, air conditioning, furnaces, boilers, and other gas-fired appliances. It supports natural LP gas conversion for flexible applications.

2 . Specifications

l Application: Single-stage direct ignition gas control for hot surface/direct spark systems

l Voltage: 24 VAC (50/60 Hz)

l Inlet/Outlet Size: ” “x ½” NPT

l Body Pattern: Straight-through

l Pressure Regulator Setpoint: 3.5” WC

l Capacity: 15,000 to 200,000 BTU/h (30–415 cfh) at 1” WC pressure drop

l Operating Temperature Range: -40°F to +175°F

l Mounting Orientation: 0° to 90°

l Electrical Connections: ¼” quick-connect male terminals, accessible from the top of the control

l Pilot Gas Outlet: None

l Conversion Kits: Natural to LP and LP to Natural gas available

l Approvals: CSA Certified (112395)

l Other Features: Controls include a manual valve, two automatic operators, and a pressure regulator

3. Application

l The Honeywell VR8215S1503 is perfect for gas appliances that use up to 150 ft³/hr. This includes furnaces, boilers, and water heaters that use hot surface ignition or direct spark systems. Its dual safety shutoff—with a solenoid-operated first automatic valve and diaphragm-operated second automatic valve—ensures safe and reliable operation.

l The integrated pressure regulator maintains consistent gas pressure, improving appliance performance and longevity. This manufacturer designs this valve for VAC gas-fired appliances. It supports the conversion from natural gas to LP gas.

l It includes a manual valve and two automatic operators. The design allows easy access for wiring connections and top adjustments. This ensures reliable HVAC and air conditioning performance for professionals and technicians.
