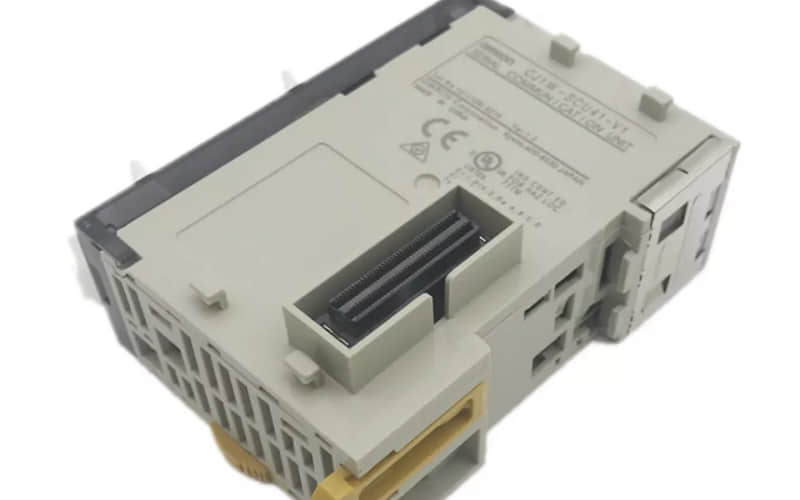

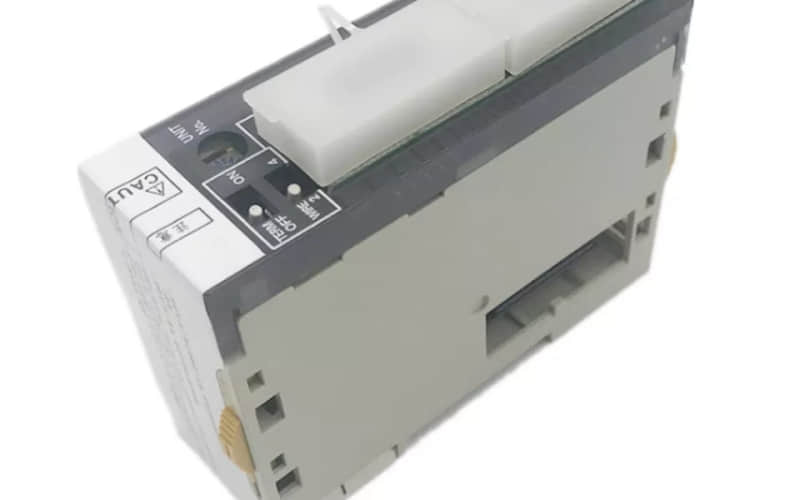

Omron CJ1W-SCU41-V1 Communication Unit

General Description

The Omron CJ1W-SCU41-V1 is part of the CJ series of communication units specifically engineered to facilitate high-speed connections between controllers and external devices. This unit is well-suited for environments where reliable communication is critical, such as manufacturing, process control, and building automation. Its dual-port design enhances flexibility, enabling simultaneous connections to multiple devices.

Technical Specifications

l Specification Details

l Model Number CJ1W-SCU41-V1

l Type Communication Unit

l Number of Ports 2 (RS-232C and RS-422A/485)

l Current Consumption 280 mA

l Baud Rate 1200 to 230400 bps

l Maximum Communication Distance RS-232C: 15 m; RS-422A/485: 500 m

l Dimensions (H x W x D) 104.5 mm x 31 mm x 65 mm

l Weight 110 g

l Operating Temperature 0 to 55 °C

Omron CJ1W-SCU41-V1 Detailed Features

1. Protocol Macro Functionality: Enables advanced communication setups with protocol macros for customized data handling.

2. Multiple Connection Configurations: Supports various configurations, including point-to-point and multidrop connections.

3. Error Detection: Built-in error detection mechanisms enhance reliability during data transmission.

4. Simple Backup Function: Allows protocol macro data backup to the CPU unit's memory card for easy restoration.

Omron CJ1W-SCU41-V1 Applications

The CJ1W-SCU41-V1 is widely used in:

A. Manufacturing Automation: Connecting PLCs to sensors, actuators, and other control devices.

B. Process Control Systems: Facilitating communication between controllers in complex process environments.

C. Building Management Systems: Integrating HVAC systems and lighting controls through reliable data exchange.

D. Robotics: Managing communications between robotic systems and control units.

Installation Process

l Preparation:

Gather necessary tools (screwdriver, wire strippers) and components (CJ1W-SCU41-V1 module).

Ensure the power supply is turned off before installation.

l Mounting the Unit:

Attach the CJ1W-SCU41-V1 module securely to a DIN rail or panel according to specifications.

l Wiring Connections:

Connect the RS-232C and RS-422A/485 ports using appropriate cabling.

Ensure proper grounding and wiring according to the specified configurations.

l Power Connection:

Connect the power supply to the module within the specified voltage range.

Testing:

Power on the system and check LED indicators for operational status.

Test each communication port for proper functionality.

l Precautions

Always disconnect the power before installation to prevent electrical shock.

Follow local electrical codes during wiring to ensure safety.

Ensure that the module operates within its specified temperature and humidity ranges.
