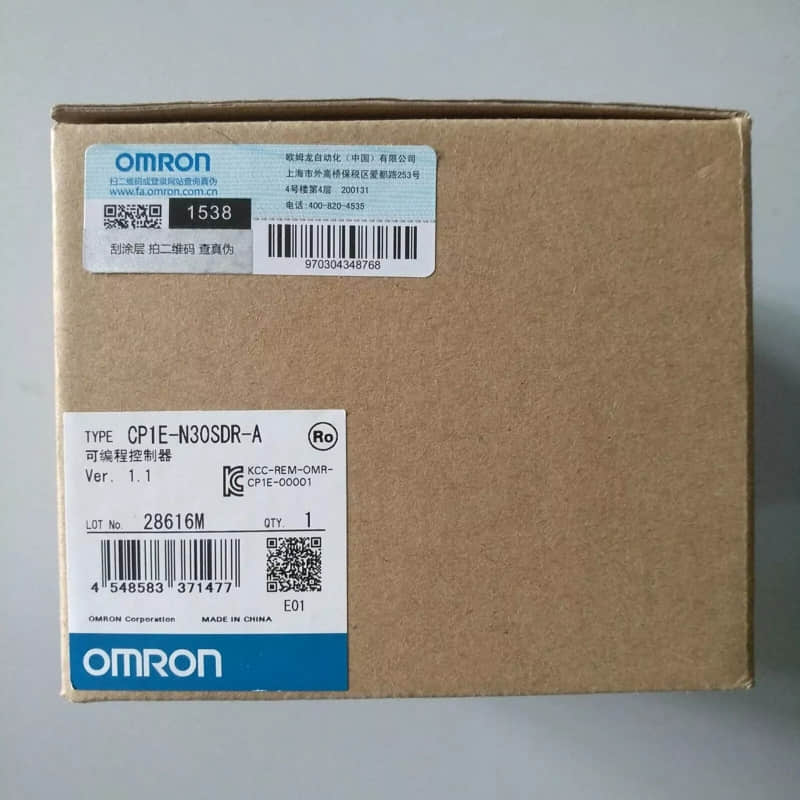

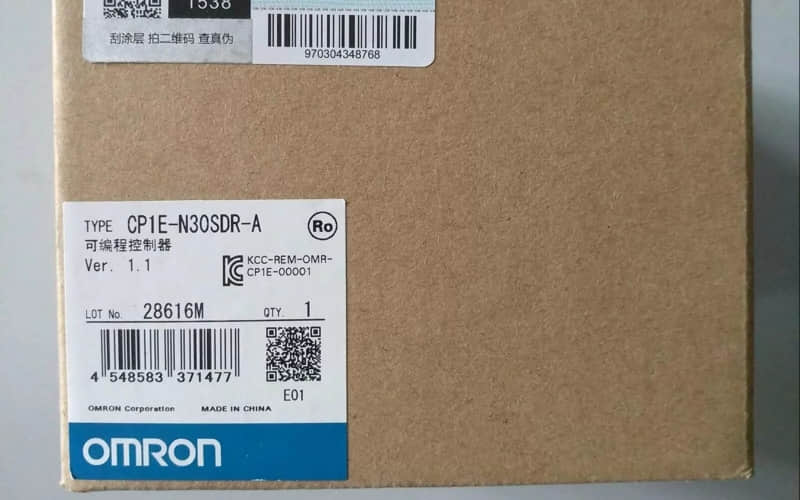

Omron CP1E-N30SDR-A PLC Module

General Description of CP1E-N30SDR-A:

The Omron CP1E-N30SDR-A is a compact and cost-effective Programmable Logic Controller (PLC) module for small-scale automation and control applications. It combines high-speed processing, versatile functionality, and ease of use, making it an ideal choice for industrial environments. This PLC module ensures reliable application performance with built-in analogue inputs and a robust design.

Technical Specifications:

- Model: CP1E-N30SDR-A

- Power Supply: 24 VDC

- I/O Points: 18 digital inputs, 12 digital outputs (transistor)

- Analog Inputs: 2 built-in channels (0-10 V or 0-20 mA)

- Program Memory: 8 KB

- Data Memory: 4 KB

- High-Speed Counter: 10 kHz (single phase)

- Communication Ports: RS-232C and RS-485

- Operating Temperature: 0°C to 55°C

- Dimensions: 90 mm (W) x 90 mm (H) x 75 mm (D)

- Weight: 400 g

Detailed Features of CP1E-N30SDR-A:

1. Compact Design: Space-saving construction ideal for small control panels.

2. High-Speed Processing: Ensures quick response times for real-time control.

3. Built-in Analog Inputs: Supports direct connection of analogue sensors without additional modules.

4. Flexible Communication: RS-232C and RS-485 ports enable easy integration with other devices.

5. User-Friendly Programming: Compatible with Omron's CX-Programmer software for intuitive setup.

6. Durable Construction: Designed to withstand harsh industrial environments.

Applications:

- Industrial Automation: Control of machinery, conveyors, and assembly lines.

- Process Control: Monitoring and regulating temperature, pressure, and flow.

- Building Automation: Lighting, HVAC, and security systems.

- Packaging Machinery: Coordinate filling, sealing, and labelling processes.

- Water Treatment: Management of pumps, valves, and filtration systems.

Installation:

1. Mounting: Use the provided mounting holes to secure the PLC module on a DIN rail or flat surface.

2. Wiring: Connect the power supply (24 VDC) to the designated terminals. Wire digital inputs/outputs and analogue inputs as per the application requirements.

3. Communication Setup: Connect the RS-232C or RS-485 port to external devices or a PC for programming and monitoring.

4. Programming: Use Omron's CX-Programmer software to create and upload the control program.

5. Testing: Power on the module and verify the functionality of inputs, outputs, and communication ports.

Related Part Numbers in the Same Series:

- CP1E-N20SDR-A: 12 digital inputs, 8 digital outputs, 2 analog inputs

- CP1E-N40SDR-A: 24 digital inputs, 16 digital outputs, 2 analog inputs

- CP1E-N60SDR-A: 36 digital inputs, 24 digital outputs, 2 analog inputs
