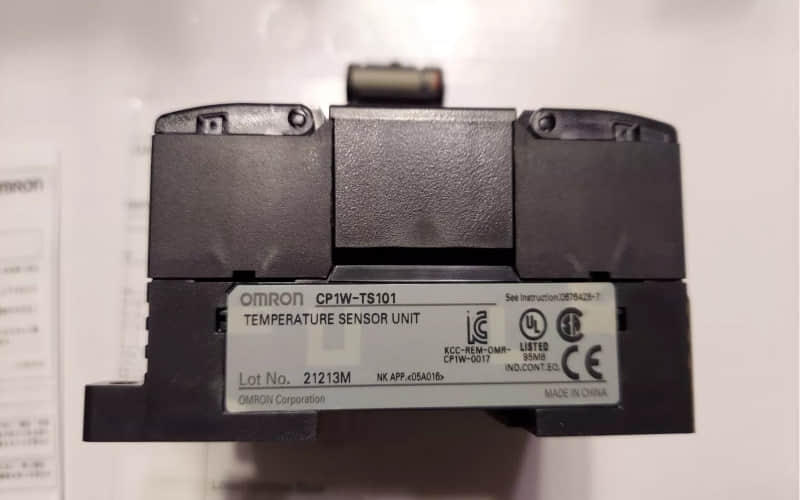

Omron CP1W-TS101 Temperature Sensor Unit

General Description:

The Omron CP1W-TS101 is a temperature sensor unit designed for precise temperature monitoring and control in industrial automation systems. It is compatible with Omron CP1E and CP1L series PLCs, supportss thermocouple inputs, and provides reliable, high-accuracy temperature data. Its compact design and easy integration make it ideal for efficient temperature management applications.

Omron CP1W-TS101 Technical Specifications:

- Model: CP1W-TS101

- Compatibility: CP1E and CP1L series PLCs

- Input Type: Thermocouple (K, J, T, R, S, B, E, N, PLII, W5Re/W26Re)

- Channels: 2 channels

- Temperature Range:

  - K, J, T, E, N: -200°C to 1300°C

  - R, S, B: 0°C to 1800°C

  - PLII: 0°C to 1390°C

  - W5Re/W26Re: 0°C to 2300°C

- Resolution: 0.1°C or 0.1°F

- Accuracy: ±0.3% of full scale

- Conversion Time: 250 ms per channel

- Dimensions: 35 mm (W) x 90 mm (H) x 65 mm (D)

- Weight: 150 g

- Operating Temperature: 0°C to 55°C

- Storage Temperature: -25°C to 75°C

- Relative Humidity: 25% to 85% (non-condensing)

Omron CP1W-TS101 Detailed Features:

1. High Precision: Delivers accurate temperature readings with a resolution of 0.1°C or 0.1°F.

2. Wide Compatibility: Supports multiple thermocouple types for versatile applications.

3. Compact Design: Space-saving construction for efficient use in control panels.

4. Easy Integration: Seamlessly connects to Omron CP1E/CP1L series PLCs.

5. Fast Conversion: 250 ms per channel for quick temperature monitoring.

6. Durable Construction: Built to withstand harsh industrial environments.

Applications:

- Industrial Automation: Temperature monitoring in machinery, ovens, and furnaces.

- Process Control: Precise temperature regulation in chemical, food, and pharmaceutical industries.

- HVAC Systems: Monitoring and controlling heating and cooling systems.

- Energy Management: Temperature tracking in power generation and distribution systems.

- Laboratory Equipment: Accurate temperature measurement in research and testing environments.

Omron CP1W-TS101 Installation Process (Step by Step):

1. Power Off: Ensure the PLC and all connected devices are powered off before installation.

2. Mounting: Attach the CP1W-TS101 to a DIN rail or flat surface using the provided mounting holes.

3. Connect to PLC: The dedicated connector links the CP1W-TS101 to the CP1E/CP1L series PLC.

4. Wiring: Connect the thermocouple sensors to the designated input terminals on the CP1W-TS101.

5. Secure Wiring: Ensure all connections are properly secured and free from loose wires.

6. Power On: Restore power to the PLC and connected devices.

7. Configuration: Use the PLC programming software to configure the temperature sensor unit and set up monitoring parameters.

8. Testing: Verify the functionality of the temperature sensor unit and ensure accurate temperature readings.

Precautions:

- Avoid installing the unit in areas with excessive dust, moisture, or vibration.

- Ensure proper grounding to prevent electrical interference.

- Use only compatible thermocouples and cables for reliable performance.

- Follow Omron's guidelines for wiring and configuration to avoid errors.

Related Part Numbers in the Same Series:

- CP1W-TS102: 4-channel temperature sensor unit with thermocouple inputs.

- CP1W-TS001: 2-channel temperature sensor unit for RTD inputs.

- CP1W-TS002: 4-channel temperature sensor unit for RTD inputs.

- CP1W-TS003: 2-channel temperature sensor unit for analog inputs.
