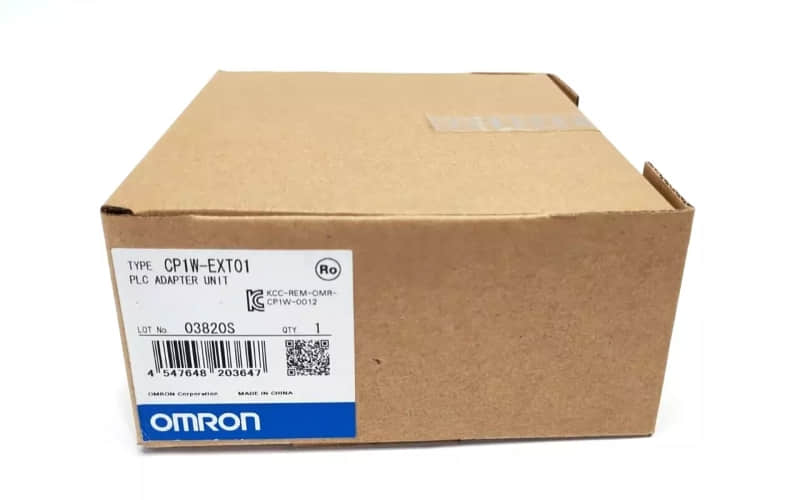

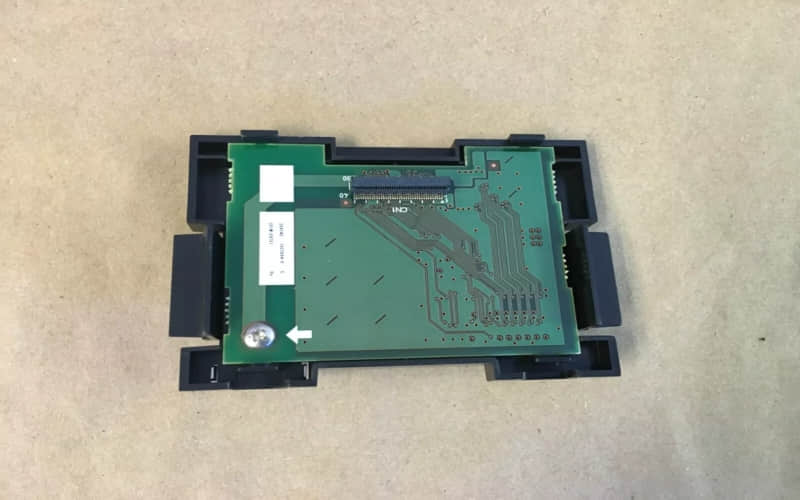

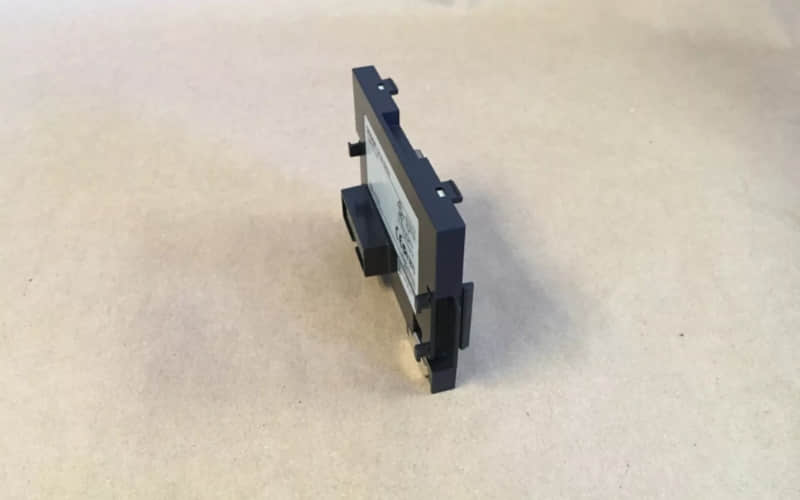

Omron CP1W-EXT01 PLC Adapter Unit

General Description:

The Omron CP1W-EXT01 is an adapter unit designed to expand the I/O capabilities of Omron CP1E and CP1L series Programmable Logic Controllers (PLCs). It allows for the connection of additional I/O units, enabling greater flexibility and scalability in automation systems. With its compact design and reliable performance, the CP1W-EXT01 is essential for industrial control applications requiring extended I/O functionality.

Technical Specifications of CP1W-EXT01:

- Model: CP1W-EXT01

- Compatibility: CP1E and CP1L series PLCs

- Maximum Expandable Units: Up to 7 units (including CP1W-EXT01)

- Connection Method: Daisy-chain connection

- Dimensions: 35 mm (W) x 90 mm (H) x 65 mm (D)

- Weight: 150 g

- Operating Temperature: 0°C to 55°C

- Storage Temperature: -25°C to 75°C

- Relative Humidity: 25% to 85% (non-condensing)

Detailed Features of CP1W-EXT01 :

1. I/O Expansion: Enables connection of additional I/O units to CP1E/CP1L series PLCs.

2. Compact Design: Space-saving construction for efficient use in control panels.

3. Daisy-Chain Connection: Simplifies wiring and reduces installation time.

4. High Reliability: Built to withstand industrial environments with robust construction.

5. Cost-Effective: Provides an affordable solution for expanding system capabilities.

6. Easy Integration: Compatible with a wide range of Omron I/O units for seamless system design.

Applications of CP1W-EXT01 :

- Industrial Automation: Expand I/O for machinery control, conveyor systems, and assembly lines.

- Process Control: Add inputs/outputs for monitoring and controlling sensors, valves, and actuators.

- Packaging Systems: Enhance filling, sealing, and labeling control.

- Building Automation: Increase Icapacity of /O lighting, HVAC, and security systems

- Water Treatment: Manage additional pumps, valves, and sensors in treatment plants.

Installation Process (Step by Step):

1. Power Off: Ensure the PLC and all connected devices are powered off before installation.

2. Mounting: Attach the CP1W-EXT01 to a DIN rail or flat surface using the provided mounting holes.

3. Connect to PLC: The dedicated connector links the CP1W-EXT01 to the CP1E/CP1L series PLC.

4. Daisy-Chain I/O Units: Connect additional I/O units to the CP1W-EXT01 in a daisy-chain configuration.

5. Secure Wiring: Ensure all connections are properly secured and free from loose wires.

6. Power On: Restore power to the PLC and connected devices.

7. Verify Operation: Check the system to ensure the CP1W-EXT01 and connected I/O units function correctly.

Precautions:

- Avoid installing the unit in areas with excessive dust, moisture, or vibration.

- Ensure proper grounding to prevent electrical interference.

- Follow Omron's guidelines for maximum expandable units to avoid overloading the system.

- Use only compatible I/O units and cables for reliable performance.

Related Part Numbers in the Same Series:

- CP1W-20EDR: 12-point DC input/8-point relay output unit

- CP1W-16ER: 8-point DC input/8-point relay output unit

- CP1W-32ER: 16-point DC input/16-point relay output unit

- CP1W-40EDT: 24-point DC input/16-point transistor output unit
