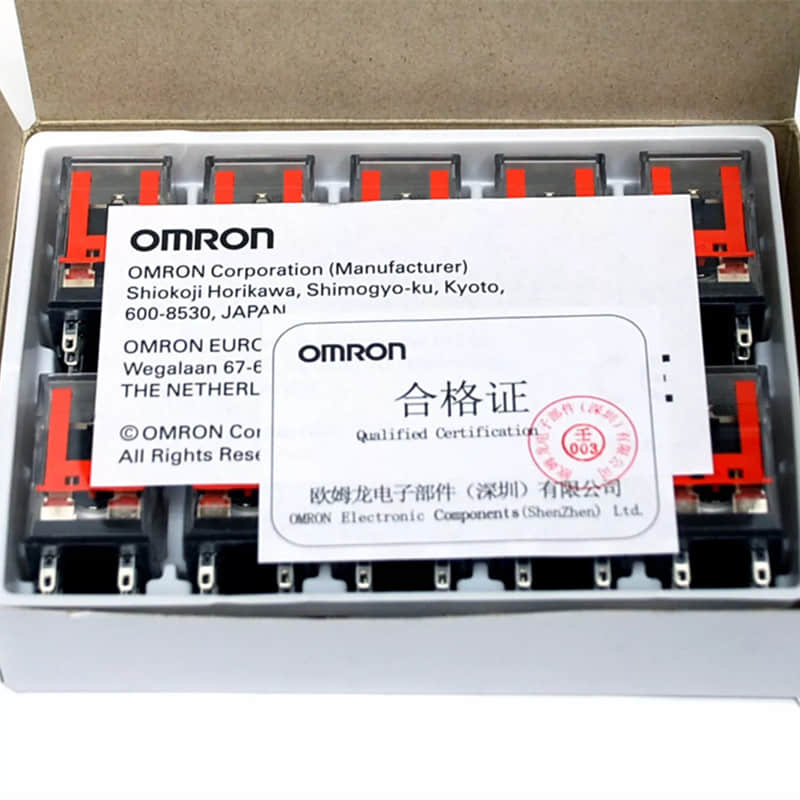

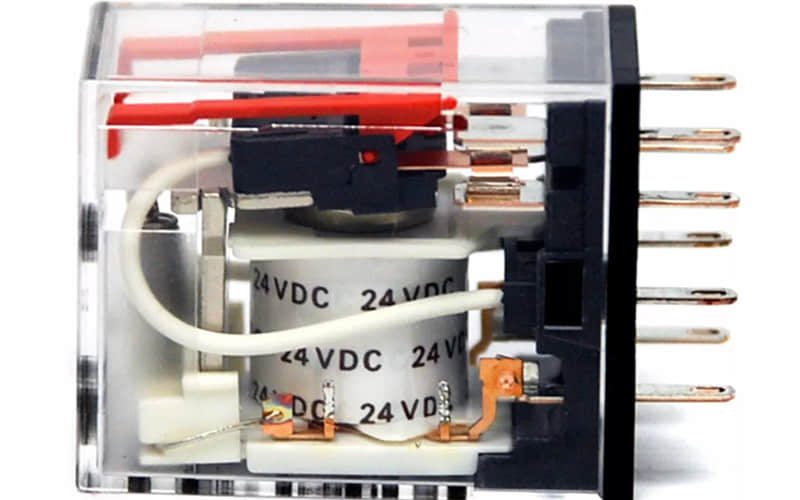

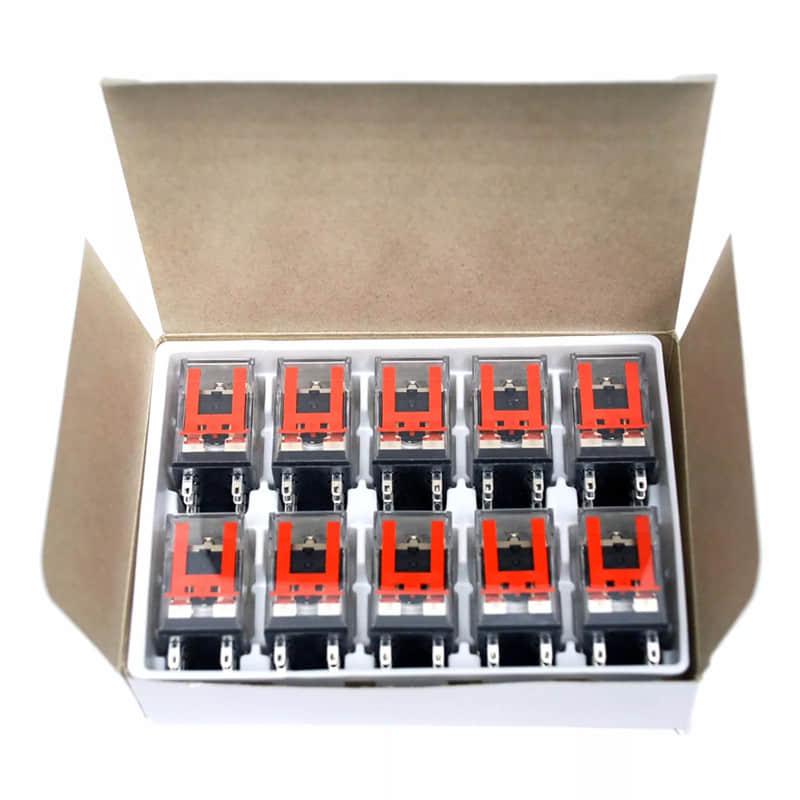

OMRON Relay MY2N-GS Coil 24VDC

General Description:

The OMRON MY2N-GS Relay is a compact, highly reliable general-purpose relay designed for various industrial and automation applications. With a 24VDC coil, this relay offers efficient performance and durability, making it ideal for control panels, machinery, and other electrical systems. Its robust construction ensures long-term reliability, even in demanding environments.

Technical Specifications:

- Coil Voltage: 24VDC

- Contact Configuration: 2 Form C (DPDT)

- Contact Rating: 10A at 250VAC, 10A at 30VDC

- Switching Capacity: Resistive Loads: 10A 250VAC/30VDC, Inductive Loads: 7.5A 250VAC/30VDC

- Electrical Life: 100,000 operations (minimum)

- Mechanical Life: 20,000,000 operations (minimum)

- Contact Resistance: 100mΩ (maximum)

- Insulation Resistance: 1,000MΩ (minimum)

- Dielectric Strength: 2,000VAC for 1 minute (between coil and contacts)

- Operating Temperature Range: -40°C to +70°C

- Storage Temperature Range: -40°C to +70°C

- Weight: Approximately 25g

Features of MY2N-GS :

- Compact and space-saving design

- High switching capacity for versatile applications

- Screw terminals for easy wiring and secure connections

- LED indicator for visual status monitoring

- Meets international safety and quality standards

Applications of MY2N-GS :

- Industrial automation systems

- Control panels and PLCs

- HVAC systems

- Power distribution systems

- Machinery and equipment control

Installation Procedure (Step by Step):

1. Preparation: Ensure the power supply is turned off before installation.

2. Mounting: Secure the relay onto a DIN rail or mounting bracket using appropriate hardware.

3. Wiring: Connect the coil terminals (A1 and A2) to the 24VDC power supply. Ensure proper polarity.

4. Load Connection: Connect the load to the relay's contact terminals (NO, NC, and COM) per the circuit requirements.

5. Testing: Power on the system and verify the relay's operation by checking the LED indicator and load activation.

6. Final Check: Ensure all connections are secure and the relay functions as expected.

Related Part Numbers of MY2N-GS :

- MY2N-GS AC24

- MY2N-GS AC110/120

- MY2N-GS AC220/240

- MY2N-GS DC12

- MY2N-GS DC48
