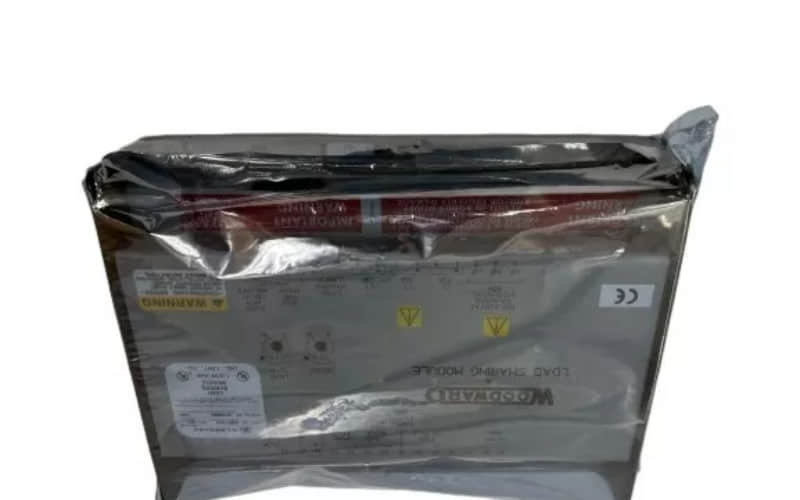

WOODWARD 9907-838 Load Sharing Module

General Description of 9907-838 :

The WOODWARD 9907-838 Load Sharing Module is a high-performance electronic module designed for power generation systems. It ensures precise load distribution between multiple generators, optimizing performance and efficiency. With its advanced features and robust design, the 9907-838 is ideal for applications requiring reliable and accurate load sharing in demanding environments.

Technical Specifications of 9907-838

- Input Voltage: 18-32 VDC

- Operating Temperature: -40°C to +85°C

- Communication Interfaces: CAN, J1939, RS-232, RS-485

- Dimensions: 150 x 100 x 50 mm

- Weight: 0.5 kg

- Certifications: CE, UL, and RoHS compliant

Detailed Features:

1. Precise Load Distribution: Ensures balanced load sharing between multiple generators.

2. Advanced Diagnostics: Provides real-time monitoring and fault detection for proactive maintenance.

3. User-Friendly Interface: Easy-to-use controls and configuration options.

4. Robust Construction: Designed to withstand harsh environments, including vibration and extreme temperatures.

5. Flexible Integration: Compatible with various engines and control systems.

6. Customizable Settings: Adjustable parameters to meet specific application requirements.

Applications:

- Power Generation: Maintains stable load sharing for standby and prime power systems.

- Industrial Engines: Ensures precise load distribution for generators, compressors, and pumps.

- Marine Propulsion: Provides reliable load sharing for marine vessels.

- Oil and Gas: Ideal for offshore platforms and remote installations requiring robust performance.

- Rail and Transportation: Ensures efficient operation of locomotives and heavy-duty vehicles.

Installation of 9907-838:

1. Mounting: Securely mount the load-sharing module in a clean, dry, and vibration-free location.

2. Wiring: Connect the power, communication, and sensor cables according to the wiring diagram provided in the manual.

3. Configuration: Use the integrated interface or software to configure load-sharing parameters and stability settings.

4. Testing: Perform a thorough system test to ensure proper operation and communication.

5. Commissioning: Before putting the system into service, verify all functions, including load sharing and diagnostics.

Related Part Numbers in the Same Series:

- 9907-837 Load Sharing Module

- 9907-839 Load Sharing Module

- 9907-840 Load Sharing Module

- 9907-841 Load Sharing Module
