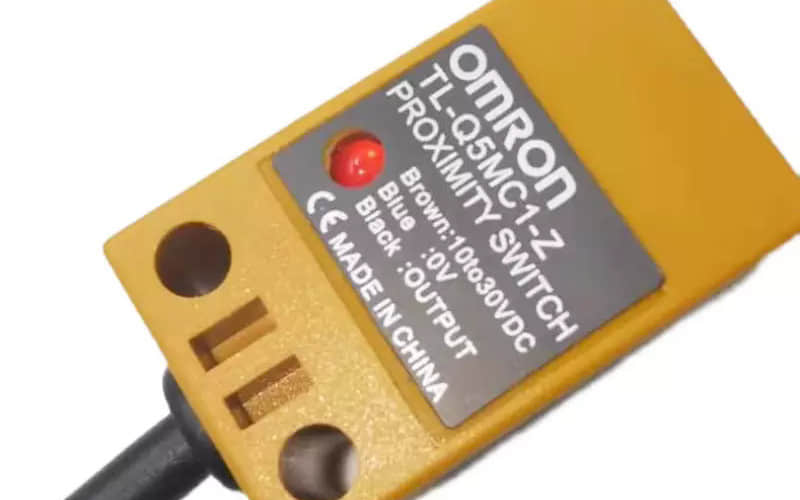

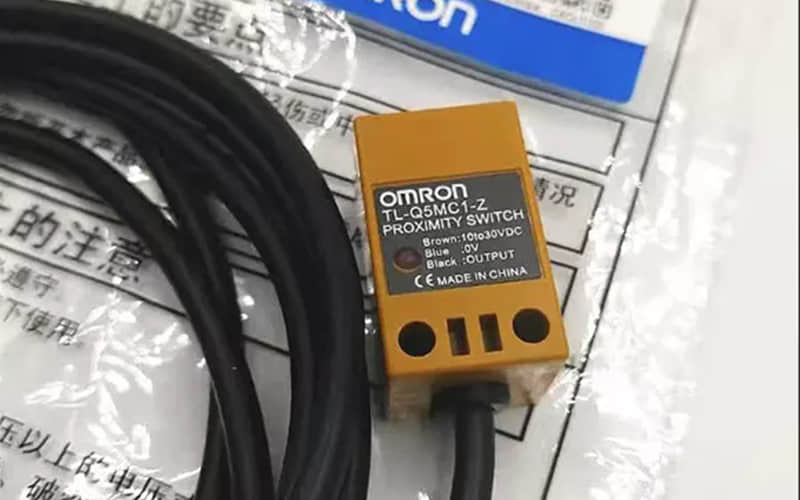

OMRON TL-Q5MC1-Z Proximity Sensor 2M 10-30VDC

General Description:

The OMRON TL-Q5MC1-Z is a high-performance proximity sensor for industrial automation and precise object detection. With a 2-meter cable and an operating voltage range of 10-30VDC, this sensor ensures reliable performance in demanding environments. Its compact and durable design makes it suitable for various applications, including machinery, conveyor systems, and assembly lines.

Technical Specifications:

- Operating Voltage: 10-30VDC

- Output Configuration: NPN

- Sensing Distance: 5mm

- Output Current: 200mA (maximum)

- Response Frequency: 500Hz

- Hysteresis: 15% (maximum) of sensing distance

- Protection Circuit: Reverse polarity protection, short-circuit protection

- Operating Temperature Range: -25°C to +70°C

- Storage Temperature Range: -35°C to +80°C

- Housing Material: Nickel-plated brass

- Cable Length: 2 meters

- Ingress Protection Rating: IP67

- Weight: Approximately 50g

Features of TL-Q5MC1-Z:

- High sensing accuracy for reliable object detection

- Durable construction for use in harsh industrial environments

- Reverse polarity and short-circuit protection for enhanced safety

- Compact design for easy integration into existing systems

- IP67 rating for dust and water resistance

Applications of TL-Q5MC1-Z:

- Industrial automation systems

- Conveyor belt systems

- Assembly line monitoring

- Packaging machinery

- Robotics and material handling

Installation Procedure (Step by Step):

1. Preparation: Ensure the power supply is turned off before installation.

2. Mounting: Use appropriate mounting hardware to secure the proximity sensor in the desired location.

3. Wiring: Connect the sensor's cable to the control system or PLC, ensuring correct polarity and voltage (10-30VDC).

4. Positioning: Adjust the sensor's position to achieve the optimal sensing distance (5mm) from the target object.

5. Testing: Power on the system and verify the sensor's operation by detecting the target object.

6. Final Check: Ensure all connections are secure and the sensor functions as expected.

Related Part Numbers of TL-Q5MC1-Z:

- TL-Q5MC2-Z (2M cable, PNP output)

- TL-Q5MC1-E (2M cable, NPN output, M8 connector)

- TL-Q5MC2-E (2M cable, PNP output, M8 connector)

- TL-Q5MC1 (1M cable, NPN output)

- TL-Q5MC2 (1M cable, PNP output)
