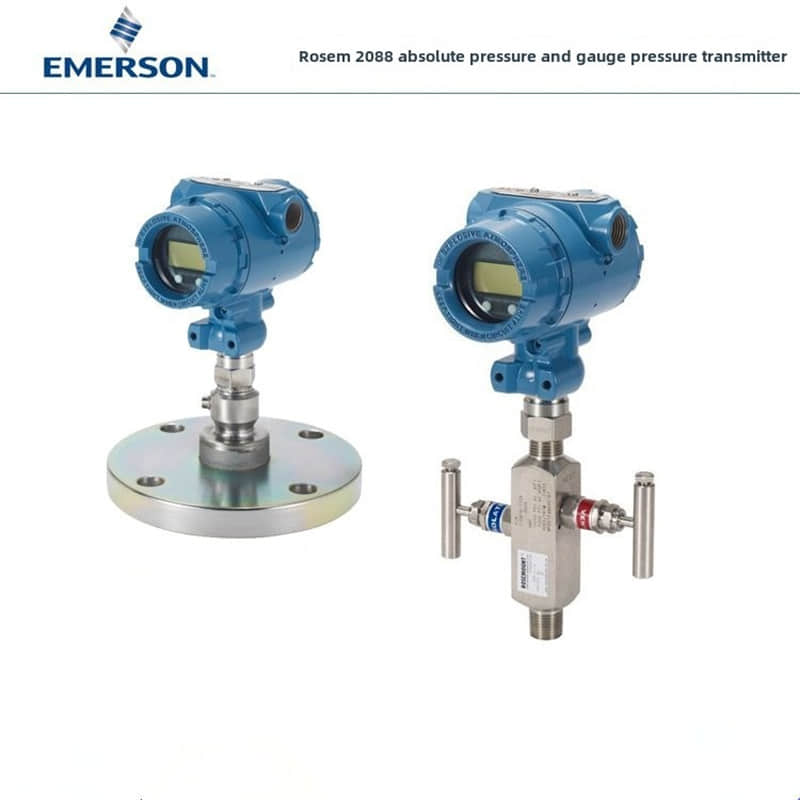

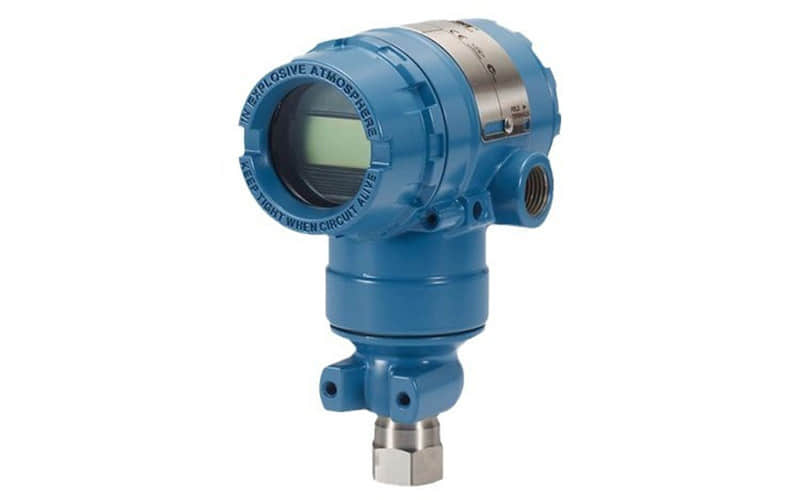

Rosemount 2088 Gauge and Absolute Pressure Transmitters

1. General Description

The Rosemount 2088 Pressure Transmitter, also called the Emerson Rosemount 2088 or Rosemount Model 2088, is exceptionally reliable. The design measures gauge and absolute pressure accurately. It offers proven reliability and accurate, stable, and reliable pressure measurement across a wide range of industrial applications.

The Rosemount 2088 Smart Pressure Transmitter uses piezoresistive sensor technology, converting applied pressure into precise electrical signals through the piezoresistive effect. Its solid-state polysilicon pressure sensor works with a 316L stainless steel isolating diaphragm. This design ensures long-term stability, high accuracy, and resistance to tough process conditions.

This Pressure Transmitter (0 to 3 BAR) comes in gauge and absolute types. It works well in oil and gas, chemical, HVAC, and water treatment applications. They design it for municipal water and wastewater operators.

It offers a lightweight and compact design. This makes installation and maintenance easier while keeping measurement accuracy.

Inside, the Rosemount 2088 features a Wheatstone bridge circuit and precision strain gauges to ensure dependable signal conversion. Its smart electronics and built-in configuration buttons make calibration and setup straightforward—no external tools required.

2. What is the difference between Rosemount 2088 and 3051?

The Rosemount 2088 is a compact, cost-effective gauge and absolute pressure transmitter ideal for standard industrial use. It offers good accuracy (about ±0.075% of span) and reliable diagnostics. Its easy setup makes it great for general use.

In contrast, the Rosemount 3051 series offers higher accuracy (about ±0.04%), advanced diagnostics, and a broader measurement range. The 3051 suits critical process control applications that require extreme precision and extended functionality.

If you need a simple, reliable, and durable transmitter, the Rosemount 2088 is an excellent choice. Experts recommend the Rosemount 3051 for high-end precision and advanced communication.

3. How accurate is the Rosemount 2088 Pressure Transmitter?

The Rosemount 2088 Pressure Transmitter provides standard accuracy of ±0.10% of span, ensuring precise, repeatable results in industrial settings.

For applications requiring tighter control, a high-accuracy version is available with performance up to ±0.065% of span. This level of precision keeps readings stable and reduces drift. This makes the Rosemount 2088 Gauge Pressure Transmitter good for routine tasks and important process monitoring.

4. Are Emerson and Rosemount the same?

Emerson is a global industrial technology leader that designs automation, control, and instrumentation products.

Rosemount, a brand under Emerson, specializes in pressure, temperature, flow, and level measurement solutions.

The Emerson Rosemount 2088 represents the brand’s commitment to delivering innovative, dependable, and precise instrumentation. While Emerson is the parent company, Rosemount focuses on high-performance sensing and control equipment widely used across industries.

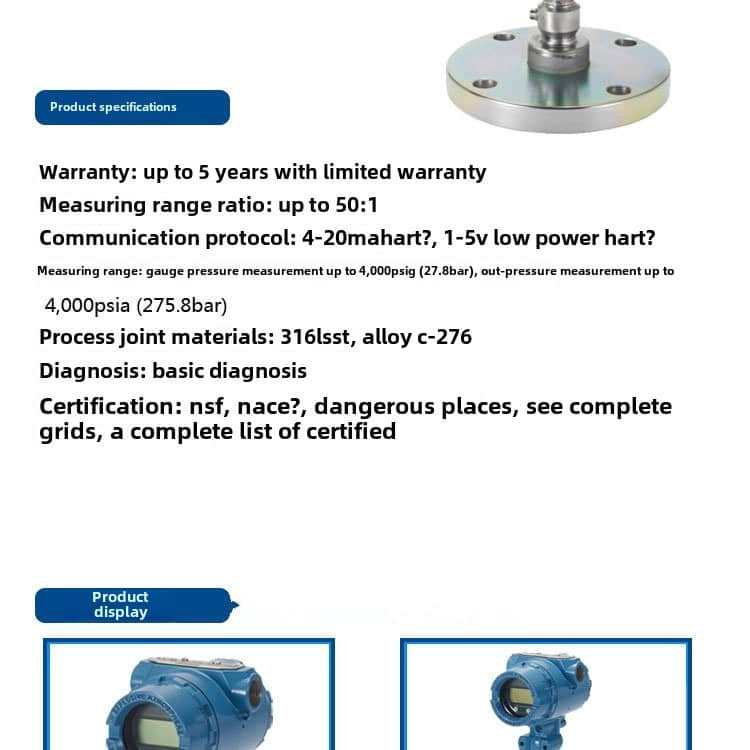

5. Technical Specifications

l Measurement Type: Gauge and Absolute Pressure

l Measurement Range: Up to 10,000 psi (689 bar); available in Pressure Transmitter 0 to 3 BAR configurations

l Accuracy: ±0.075% of calibrated span

l Stability: ±0.10% of URL for 1 year

l Sensor Type: Solid-state polysilicon piezoresistive sensor

l Isolating Diaphragm: 316L Stainless Steel

l Output Signal: 4–20 mA with HART® Protocol or 1–5 VDC HART Low Power

l Power Supply: 10.5–36 VDC

l Process Connection: ½" NPT(F)

l Temperature Range: -40 to 185°F (-40 to 85°C)

l Housing Material: Aluminum with polyurethane coating; NEMA 4X rated

l Weight: Approximately 3.8 lbs (1.7 kg)

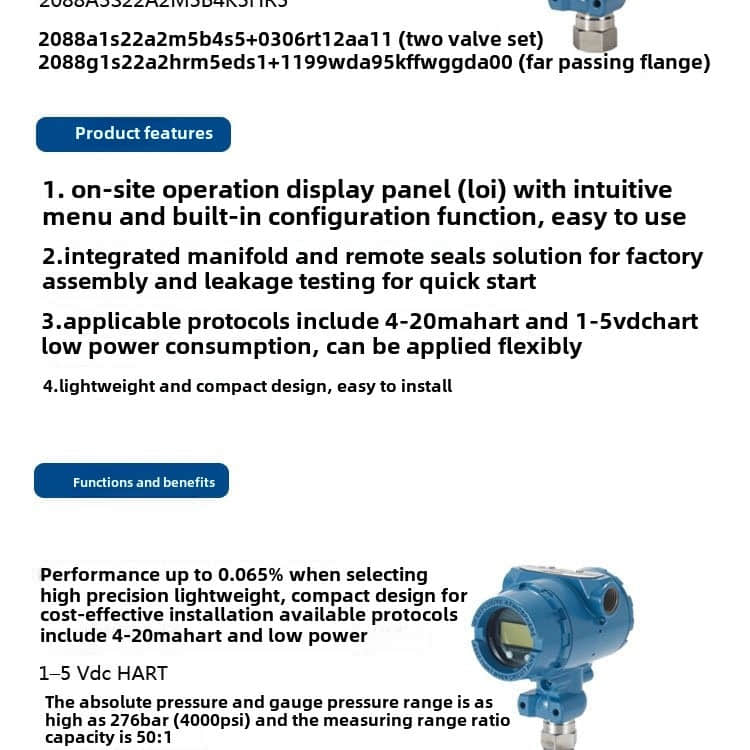

6. Rosemount 2088 Features

l Accurate, Stable, and Reliable Pressure Measurement: Proven performance in both gage and absolute pressure applications.

l Advanced Piezoresistive Sensor Technology: Converts applied pressure into precise electrical signals for superior reliability.

l Solid-State Polysilicon Sensor with 316L Diaphragm: Provides durability, corrosion resistance, and consistent accuracy.

l Compact and Lightweight Design: Simplifies installation, especially in space-limited environments.

l Local Operator Interface (LOI): Built-in configuration buttons for fast setup and calibration.

l Smart Functionality: Compatible with HART® communication protocol for digital diagnostics and configuration.

l Wide Turndown Ratio: Up to 50:1 for versatile measurement ranges.

l Cost-Effective Solution: Combines performance and affordability for everyday industrial needs.

7. rosemount 2088 gage and absolute pressure transmitter Applications

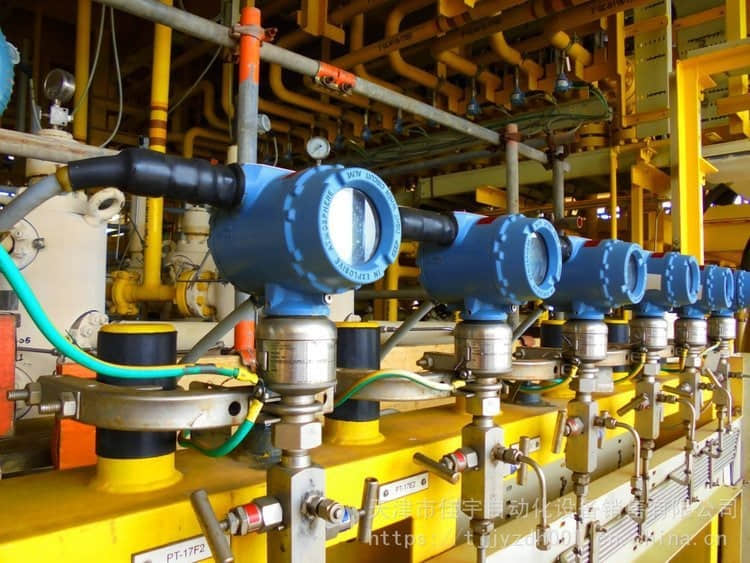

The Rosemount 2088 Smart Pressure Transmitter is designed for a wide variety of industrial applications, including:

l Municipal Water and Wastewater Management: Specifically designed to meet operational demands.

l Oil and Gas Production: Reliable for line pressure, separator, and wellhead monitoring.

l HVAC Systems: Precise control of air and fluid pressures.

l Chemical and Pharmaceutical Processing: Safe and accurate performance in corrosive environments.

l Power Generation: Monitoring and control in boiler and feedwater systems.

l General Industrial Automation: Pressure control in manufacturing and material handling systems.

8. Installation Procedure (Step by Step)

A. Preparation: Review manuals, gather tools, and verify pressure range requirements.

 B. Mounting: Install in a location with low vibration and stable temperature.

 C. Wiring: Connect power and ground according to the wiring diagram.

 D. Calibration: Adjust zero and span using built-in calibration controls.

 E. Configuration: Use LOI or HART communicator for setup and diagnostics.

 F. Testing: Verify readings and ensure stability of output signals.

 G. Finalization: Tighten connections, secure covers, and document installation results.

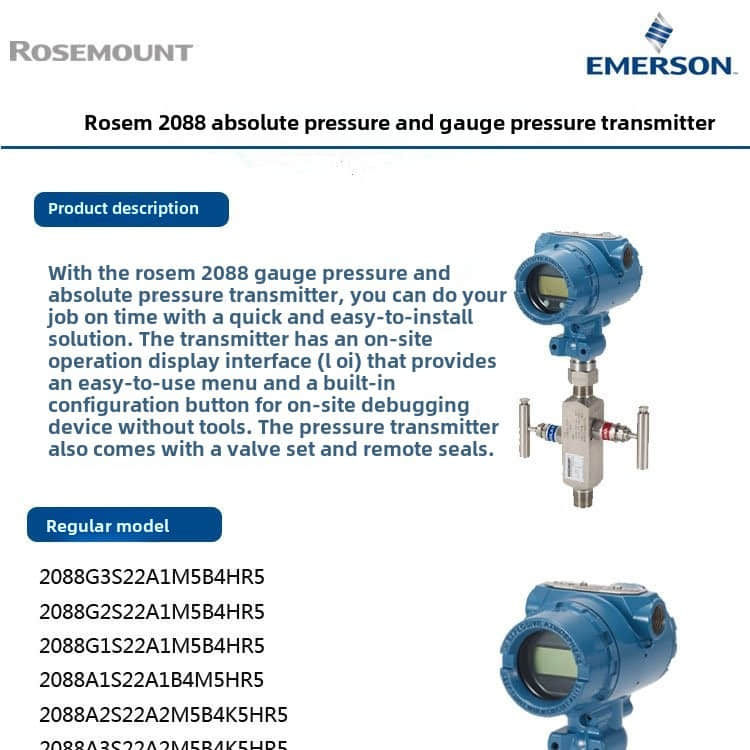

9. rosemount tm 2088 Related Part Numbers

l Rosemount 2088G – Gauge Pressure Transmitter

l Rosemount 2088A – Absolute Pressure Transmitter

       Rosemount 2051L Flange Diaphragm Level Transmitter

       Rosemount 2051T Inline Pressure Transmitter

       The Features of Rosemount 2051 for Pressure Measurement

       Back to the top: Rosemount

10.Summary

The Rosemount 2088 is a smart, reliable, and accurate pressure transmitter offering proven reliability and superior stability in both gage and absolute pressure measurements. This device uses piezoresistive sensor technology and a 316L stainless steel isolating diaphragm. It offers precise, consistent, and cost-effective performance. Plus, it comes in a compact and lightweight package.

The Rosemount 2088 Pressure Transmitter, made by Emerson, provides reliable measurements. A trusted option for water systems, industrial automation, and process industries around the world.
