Rosemount 3051L Capacitive Level Transmitter Technical & Selection Guide
Published: July 2026
Published by: Xiamen ZYM Automation & Control Co., Ltd. (Xiamen Zhenyoumei Display Products Co., Ltd.)
Author: Technical Engineering Team
Last Updated: July 2026
Executive Summary:
The Rosemount 3051L is an industry-leading capacitive liquid level transmitter engineered to convert hydrostatic pressure into highly accurate electrical signals. This comprehensive technical guide covers general descriptions, core specifications, model comparisons, installation procedures, and related part numbers for seamless industrial system integration and hardware procurement.
Table of Contents
General Description of Rosemount 3051L
Difference Between Rosemount 3051S, 3051C, and 3051L
How Does a Rosemount 3051 Transmitter Work?
Technical Specifications
Key Features & Benefits
Industrial Applications
Installation Procedure (Step-by-Step)
Frequently Asked Questions (FAQ)
Related Part Numbers & Equivalents
Sourcing Authentic Emerson Rosemount Hardware
1. General Description

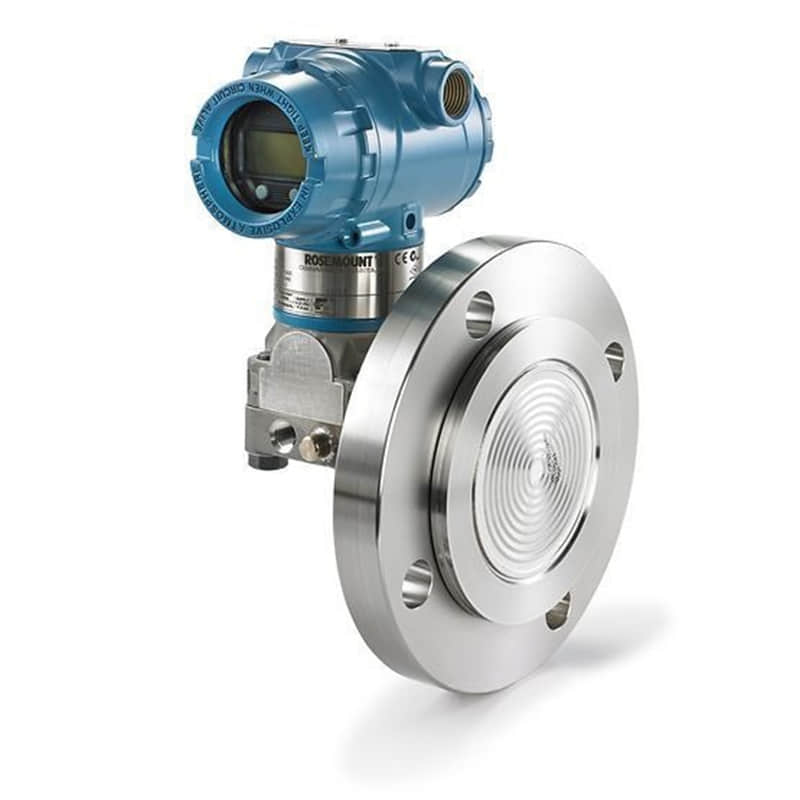

The Rosemount 3051L, also known as the Rosemount TM 3051L Level Transmitter or Emerson Rosemount 3051L, is a precise instrument designed to measure level, specific gravity, and density in demanding industrial settings.
The Rosemount 3051L changes hydrostatic pressure into an electrical signal, delivering accurate results for inventory control, material balance, and process monitoring. Utilizing advanced capacitive sensing technology, it ensures reliable measurements even under high temperatures and harsh operating conditions. Built-in diagnostics help detect electrical loop problems, reducing both random and systematic errors while cutting operational costs.
Widely utilized in chemical processing, refining, food production, and water treatment, the 3051L comes in various configurations to meet diverse plant requirements.
2. Difference Between Rosemount 3051S, 3051C, and 3051L
Rosemount 3051S Series: A high-end, premium model offering exceptional accuracy (typically ±0.04% of span) and a wide turndown ratio of up to 200:1, designed for critical applications requiring maximum precision.
Rosemount 3051C Series: Designed for general-use pressure measurement, featuring standard accuracy (approx. ±0.15% of span) and reliable performance for everyday industrial tasks.

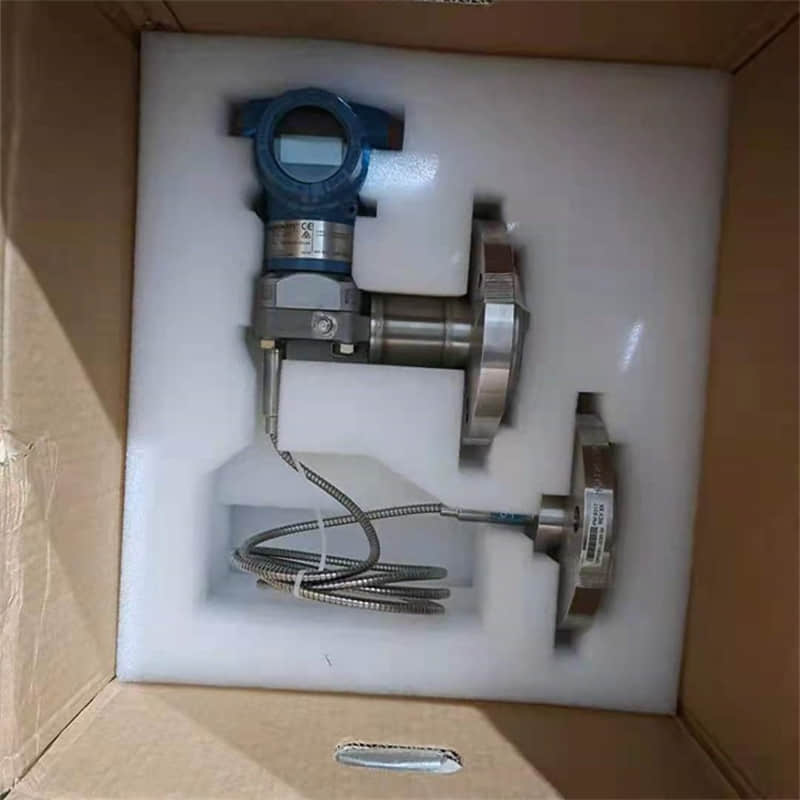

Rosemount 3051L Series: Specifically tailored for liquid level and specific gravity measurements, combining a coplanar or direct-mount transmitter head with specialized remote mount seals/diaphragms for tank applications.
3. How Does a Rosemount 3051 Transmitter Work?
A Rosemount 3051 transmitter functions by converting process pressure into standardized electrical signals:
Pressure Sensing: Process pressure causes the sensor diaphragm to flex.
Capacitive Detection: A capacitive or piezoresistive element senses this movement, generating a proportional electrical output.
Microprocessor Conversion: A built-in microprocessor converts the signal into a standardized 4–20 mA or digital (HART / Fieldbus) output, automatically compensating for temperature and static pressure variations to ensure high stability and repeatability.

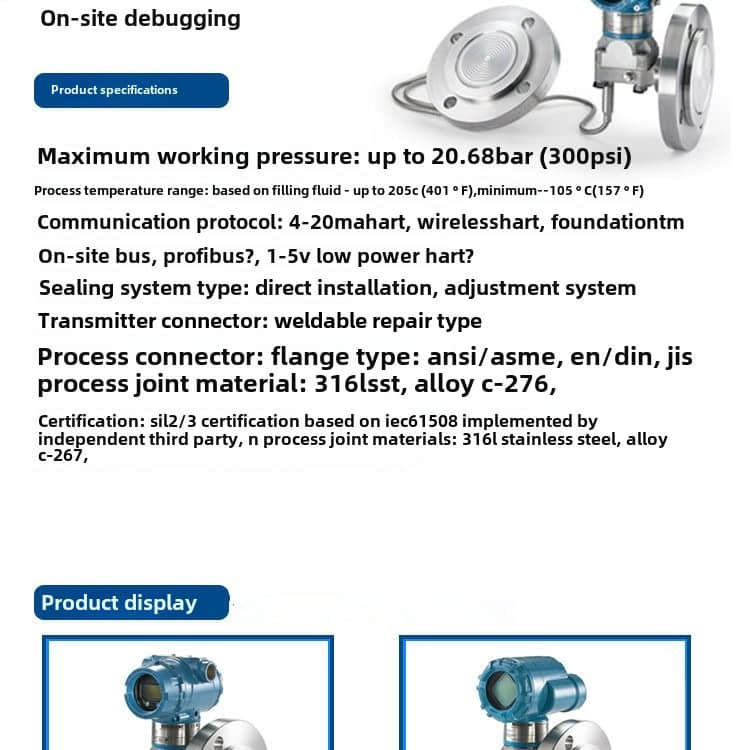

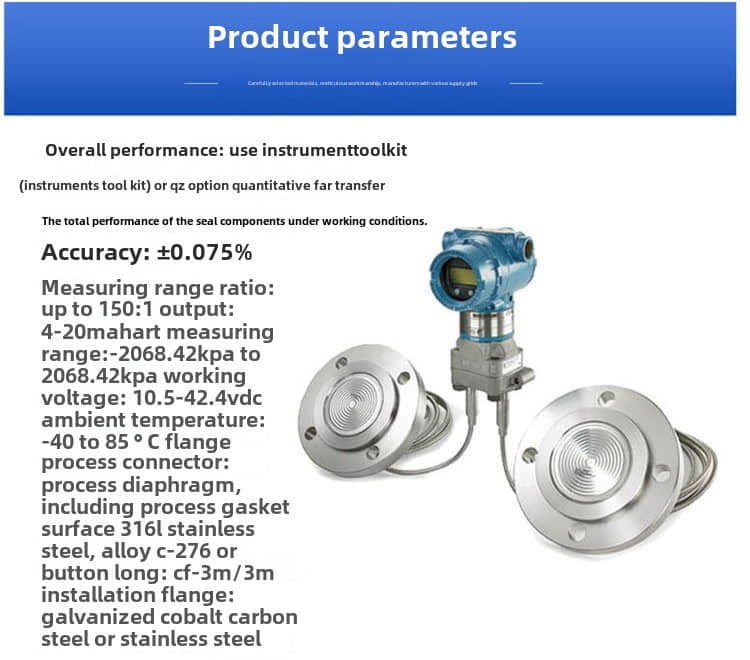

4. Rosemount 3051L Technical Specifications
Measurement Range: 0–8.3 inches H₂O to 0–300 psi
Accuracy: ±0.075% of span (high precision and improved accuracy)
Output Signal: 4–20 mA with HART Protocol or Low Power 1–5 VDC
Power Supply:
4–20 mA: 10.5–42.4 VDC
Low Power: 6–12 VDC
Wetted Materials: Stainless Steel, Hastelloy, Monel, Tantalum
Process Flange Materials: Carbon Steel, Stainless Steel
Temperature Range: Up to 401°F (205°C) depending on fill fluid
Weight: ~3.8 lbs (1.7 kg)

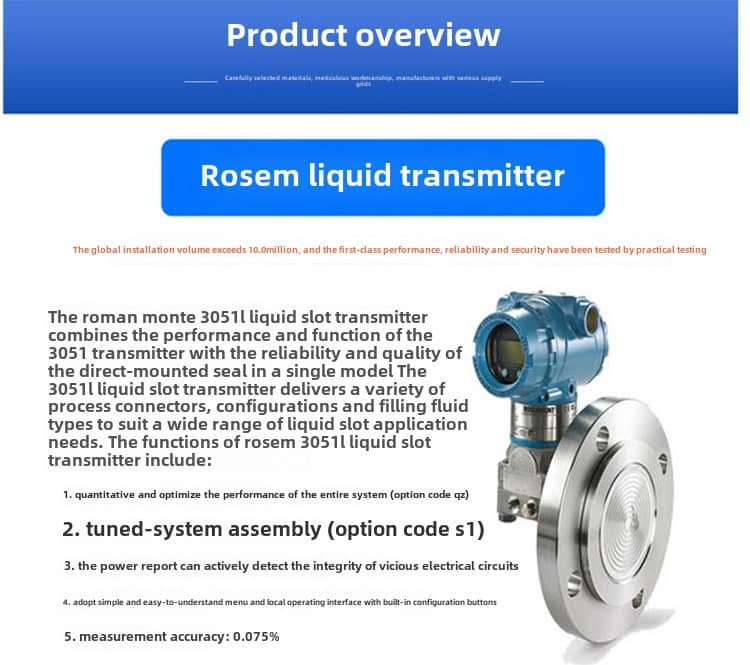

5. Rosemount 3051L Features
Capacitive Measurement Technology: Provides accurate and reliable level and pressure readings.
Precision Level & Specific Gravity Measurement: Ensures high precision and consistent results across varied media.
Built-in Diagnostics: Detects electrical loop issues to minimize random and systematic errors.

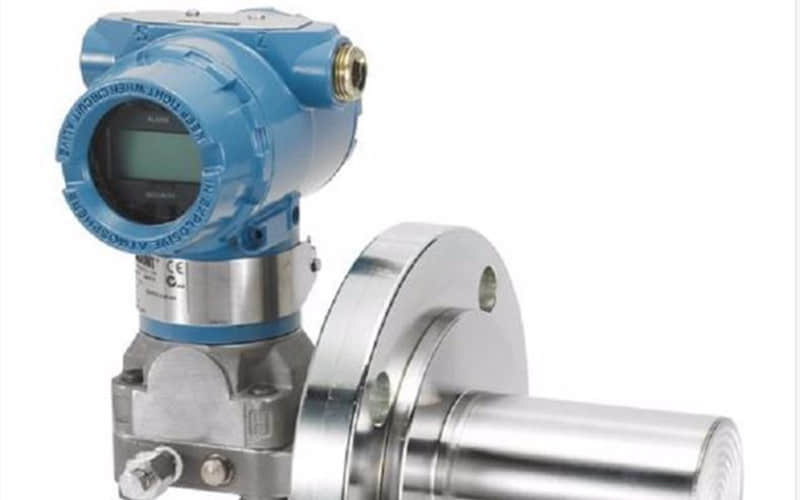

Multiple Diaphragm Options: Supports flush and extended diaphragms for diverse process needs.
Wide Rangeability: Up to 100:1 measurement range.
User-Friendly Configuration: Easy setup and data collection via local operator interface (LOI).
High Accuracy & Long-Term Stability: Delivers reliable results even under extreme environmental conditions.
Cost-Effective Design: Reduces maintenance and operational costs while improving efficiency.
6. Rosemount 3051L Applications
Liquid level measurement in storage tanks and process vessels
Inventory control in chemical and food processing industries
Material balance tracking in industrial production plants
Water and wastewater treatment facility monitoring
Specific gravity and density measurement in liquid solutions
Process automation and gravitational field applications
7. Installation Procedure (Step by Step)
A. Preparation: Gather necessary tools, review technical manuals, and verify the required measurement range.
B. Mounting: Position the transmitter securely on the vessel; avoid high-vibration areas and ensure proper drainage slope.
C. Wiring: Connect the power supply properly and ensure correct grounding to prevent electrical noise.
D. Calibration: Adjust zero and span using the internal capacitive measuring setup.
E. Configuration: Perform operational setup via the Local Operator Interface (LOI) for user-friendly management.
F. Testing: Verify the output signal and confirm the long-term stability of readings.
G. Finalization: Tighten all mechanical fittings, close terminal compartment panels, and document installation results.
8. Frequently Asked Questions (FAQ)
Q1: What is the primary use of the Rosemount 3051L?
A: The 3051L is specifically engineered for liquid level, specific gravity, and density measurements in tanks and vessels, utilizing a direct-mount or flanged diaphragm seal system.
Q2: What output protocols does the Rosemount 3051L support?
A: It supports 4–20 mA communication with the HART protocol, as well as low-power 1–5 VDC options for remote or solar-powered applications.

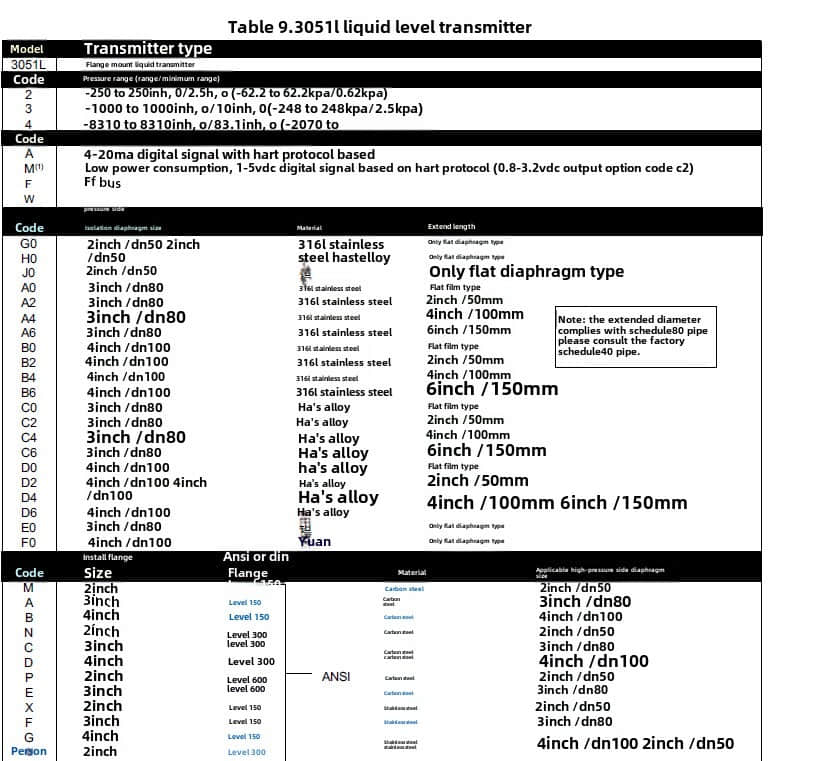

9. Related Part Numbers & Equivalents
Rosemount 3051L2AA0FD21AAM5DF – Liquid Level Transmitter
Rosemount 3051L2AA0FD21AJC6 – Liquid Level Transmitter
Rosemount 3051L2AA0GC31AJS1C6M4Q4D4T1CTDOF1SYQZGMHR7 – Liquid Level Transmitter
Rosemount 3051L2AA4FD21AAQ4 – Liquid Level Transmitter
Rosemount 2051C Coplanar Pressure Transmitter
Rosemount 3051CD Differential Pressure Transmitter
Rosemount 248 Temperature Transmitter
