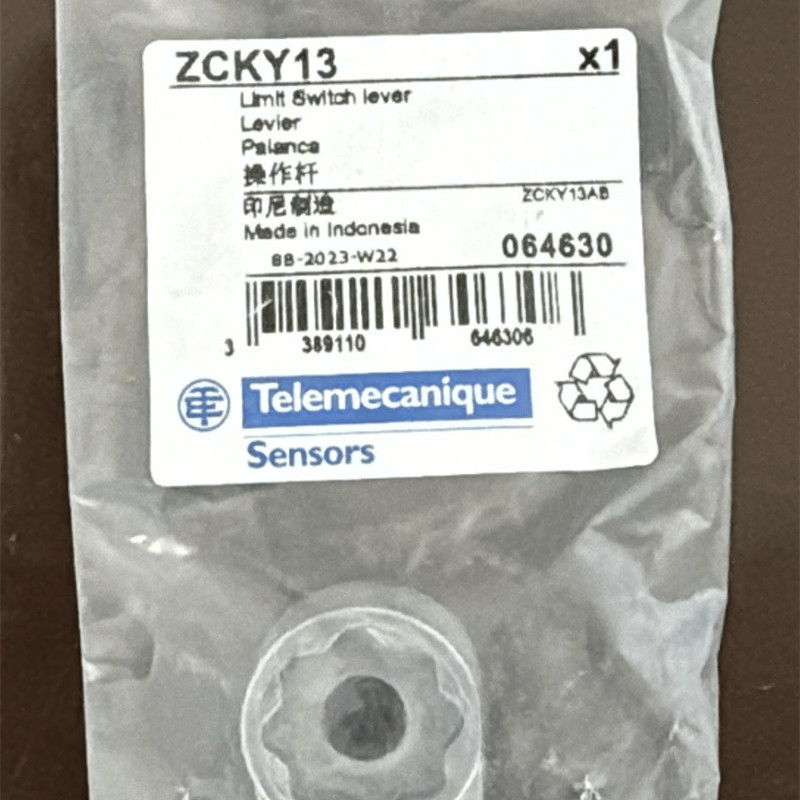

Schneider ZCKY13 Limit Switch
General Description
The Schneider ZCKY13 is part of the OsiSense XC series of limit switches. It is engineered to provide precise control and monitoring in industrial applications. With its compact design and durable materials, this limit switch is ideal for use in limited space, but performance cannot be compromised.
Technical Specifications of ZCKY13
l Specification Details
l Part Number ZCKY13
l Series OsiSense XC
l Type Limit Switch Lever
l Operating Temperature -25 °C to +70 °C
l Degree of Protection IP 66
l Contact Type Snap action with the positive opening operation
l Dimensions (L x W x H) 30 mm x 50 mm x 16 mm
l Weight Approximately 0.2 kg
l Connection Type Screw terminals
Detailed Features of ZCKY13
l Robust Construction: Built to withstand harsh environmental conditions, ensuring longevity and reliability.
l Roller Lever Mechanism: Allows for smooth operation and adaptability in various applications.
l Positive Opening Contacts: Enhances safety by ensuring contacts open reliably under fault conditions.
l Modular Design: Facilitates easy integration and replacement in existing systems.
Applications of ZCKY13
The Schneider ZCKY13 limit switch is widely utilized in various industrial applications, including:
1. Conveyor Systems: Used to detect the position of items on conveyor belts, ensuring efficient operation.
2. Automated Machinery: Provides precise control over machine operations, enhancing productivity.
3. Safety Interlocks: These devices prevent machinery from operating under unsafe conditions.
4. Material Handling Equipment: Monitors the position of moving parts, ensuring safe operation in warehouses and factories.
Installation
To install the Schneider ZCKY13 limit switch:
A. Ensure that the power supply is turned off before proceeding with installation.
B. Mount the switch securely using appropriate screws or brackets at the desired location.
C. Connect the wiring according to the specifications provided in the manual.
D. Adjust the roller lever position as needed to ensure proper actuation when the target object comes into contact.
Related Part Numbers
l ZCKJ9H29: Alternative limit switch with different actuation options.
l ZCKE05: Limit switch with different mounting configurations.
l ZCKY41: Another variant within the OsiSense XC series.
