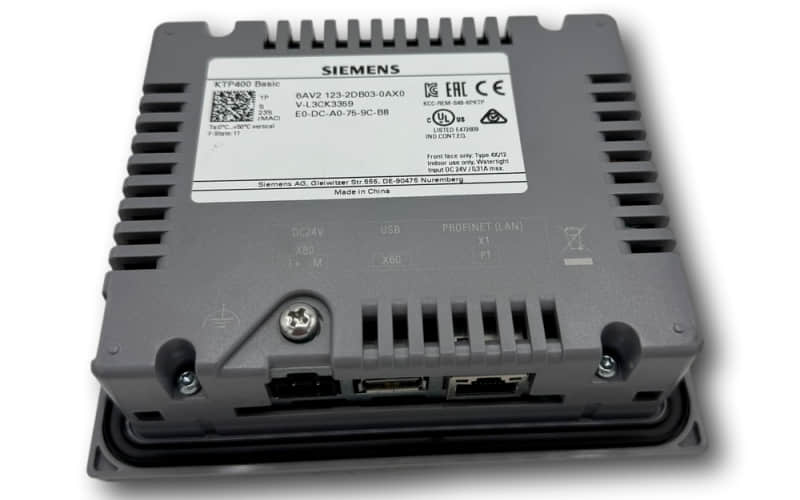

Siemens HMI 6AV2123-2DB03-0AX0

The Siemens HMI 6AV2123-2DB03-0AX0 is a SIMATIC HMI KTP400 Basic panel for key and touch operation. It features a 4" TFT display with 65536 colors and a PROFINET interface. It can be configured using WinCC Basic V13 or STEP 7 Basic V13. This device is ideal for compact plants or smaller applications, offering improved process quality and visualization.

Product Specifications and Parameters

l Display: 4" TFT widescreen display with LED backlighting, 65536 colors, and a resolution of 480x272 pixels.

l Control Elements: 4 function keys, numeric and alphanumeric on-screen keyboards.

l Interfaces: PROFINET, USB.

l Power Supply: 24 V DC, with a permissible range of 19.2 V to 28.8 V.

l Memory: 10 MB for user data.

l Mounting: Can be mounted in portrait or landscape format.

6AV2123-2DB03-0AX0 Application Fields

This HMI panel is suitable for various industrial applications, including mechanical engineering and process control, requiring compact and efficient monitoring systems.

Device Properties

1. Protection Rating: IP65 (front).

2. Operating Temperature: 0°C to 40°C.

3. Housing Material: Plastic.

4. Weight: Approximately 360 g without packaging.

6AV2123-2DB03-0AX0 Benefits

l Offers high-resolution visualization for improved process monitoring.

l Supports efficient configuration through WinCC Basic and STEP 7 Basic.

l Provides robust connectivity with the PROFINET interface.

l Compact design suitable for space-restricted installations.
