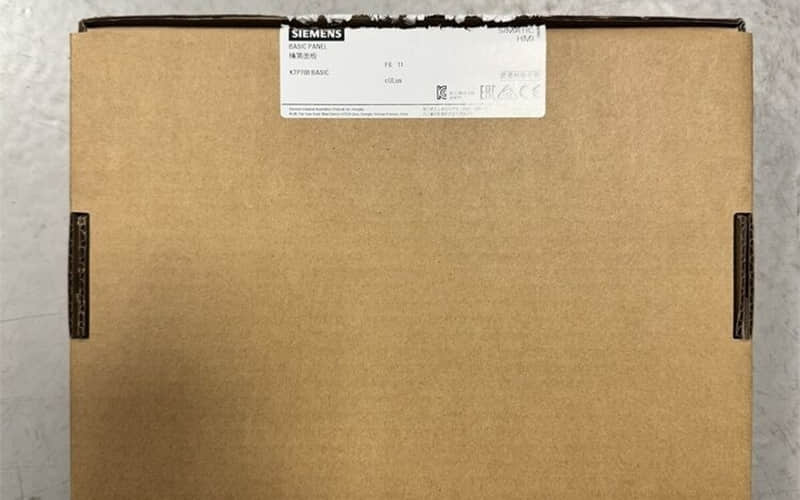

Siemens HMI 6AV2123-2GB03-0AX0

The Siemens HMI 6AV2123-2GB03-0AX0 is a KTP700 Basic Panel designed for industrial automation. It features a 7" TFT display with 65536 colors, key/touch operation, and a PROFINET interface. This device is configurable using WinCC Basic V13 and STEP 7 Basic V13, making it suitable for various industrial control applications.

6AV2123-2GB03-0AX0 Product Specifications and Parameters

l Display: 7" TFT widescreen display with LED backlighting, 800x480 resolution.

l Control Elements: 8 function keys, on-screen numeric and alphanumeric keyboards.

l Touch Operation: Analog-resistive touch screen.

l Supply Voltage: DC 24 V, range 19.2 V to 28.8 V.

l Power Consumption: 5.5 W.

l Interfaces: 1 industrial Ethernet interface, 1 USB interface.

l Protocols: PROFINET, EtherNet/IP, MODBUS TCP/IP.

6AV2123-2GB03-0AX0 Application Fields

This HMI suits various industrial automation applications, including process control, manufacturing, and monitoring systems. It can be integrated with Siemens S7 series PLCs and other compatible devices.

Device Properties

1. Mounting Options: Vertical installation with portrait and landscape orientations is possible.

2. Clock and Timekeeping: Real-time hardware clock with a backup duration of up to 6 weeks.

3. Security Features: Supports up to 50 user groups and 32 user rights.

6AV2123-2GB03-0AX0 Benefits

A. Offers a user-friendly interface with customizable screens.

B. Supports multiple communication protocols for seamless integration.

C. Energy efficiency with low power consumption.

Similar Models

6AV2123-2GA03-0AX0: Similar model with a PROFIBUS interface instead of PROFINET.
