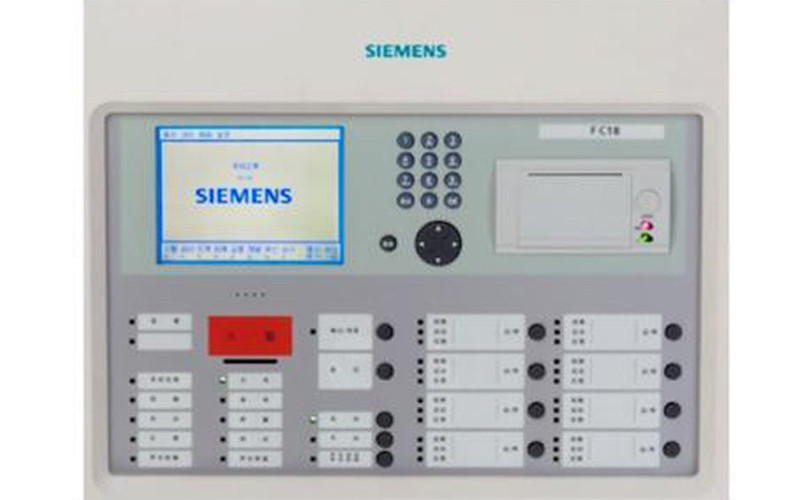

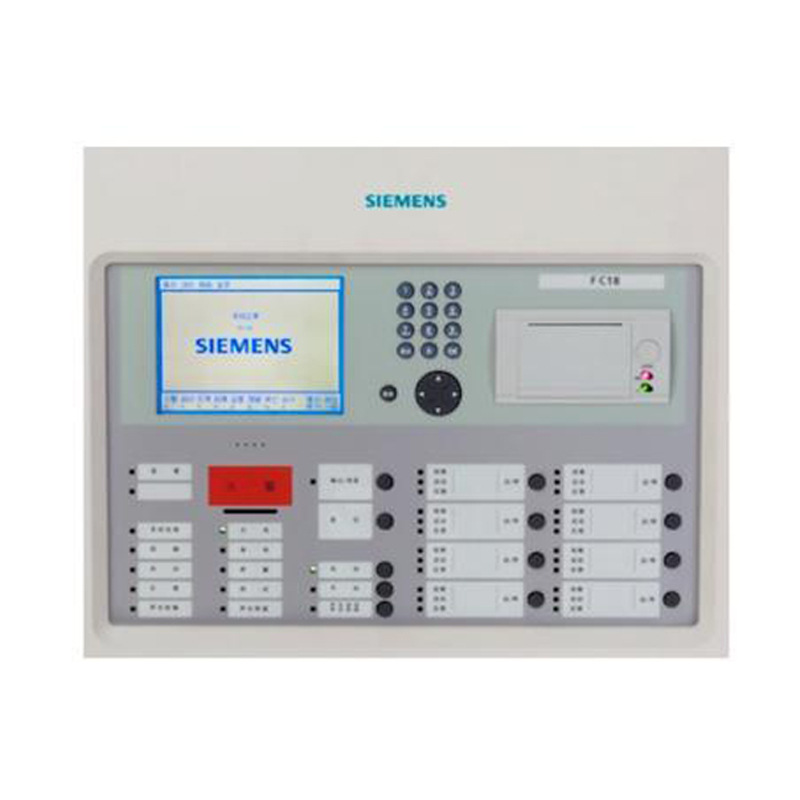

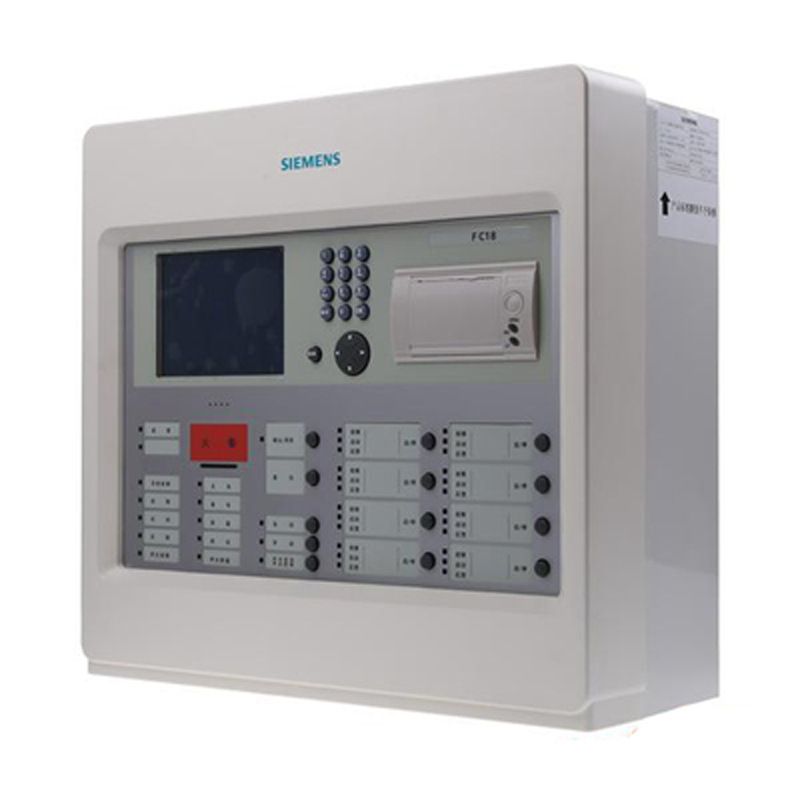

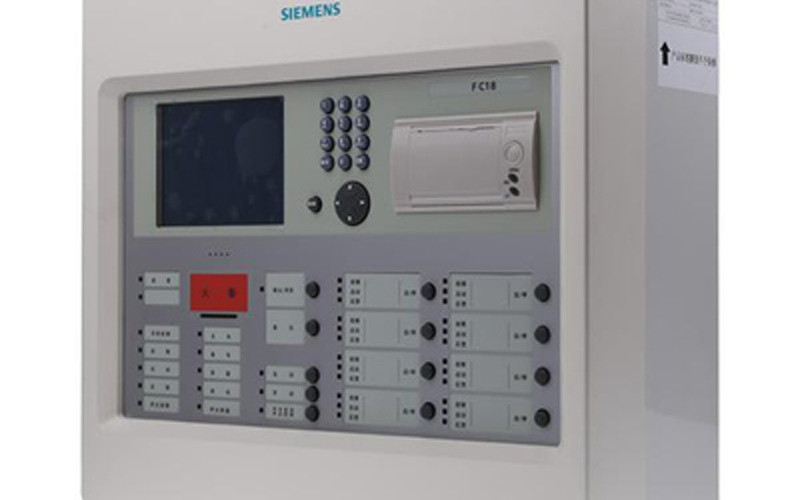

FC18-FC1840-B Fire Alarm Controller (Linkage Type) Technical Guide
Overview
The FC18-FC1840-B is a high-performance Fire Alarm Controller (Linkage Type) designed for commercial and industrial fire safety applications. Compliant with national standards GB4717-2005 "Fire Alarm Controllers" and GB16806-2006 "Firefighting Linkage Control Systems," this controller features a user-friendly Windows-style interface, massive historical data storage, robust networking capabilities, and advanced logic programming to ensure reliable and rapid emergency response.
Product Functions & Highlights
Standards Compliance: Fully complies with GB4717-2005 and GB16806-2006 standards for fire safety systems.
Intuitive Operation Interface: Features an entirely Chinese Windows-style menu interface for straightforward operation, complemented by right-click pop-up menus for quick access to available device and event actions.
Large Storage Capacity: Capable of storing up to 3,000 historical records, capturing all operational events for comprehensive audit and review.
Smart Power-Saving Screensaver: Automatically switches to screensaver mode after a set idle period with no alarms or faults to extend LCD lifespan, instantly waking up upon new events.
Flexible I/O & Control: Equipped with 2 programmable input/output channels, 1 sound and light control circuit, and 8 multi-line linkage panels for automatic or manual control of essential equipment.
Group Programming: Simplifies complex logical relations by assigning devices with identical functions into unified groups, saving setup time.
Advanced Networking: Supports network expansion of up to 8 controllers via the FC18-BUS network bus (maximum distance up to 1000 meters).
Two-Wire Non-Polarized Loop Bus (FD18-BUS): Supports maximum loop distances of 2500 meters and branch distances of 1500 meters.
Multi-Level Password Security: Three distinct user operation interfaces (Level 1, Level 2, and Level 3) protected by strict password controls.
Smart Maintenance & Diagnostics: Features automatic device mapping, adjustable detection sensitivity for environmental adaptation, and plug-in terminal blocks for effortless installation and debugging.
Technical Specifications
| Specification Item | Technical Data |
| Model | FC18-FC1840-B |
| System Capacity | Max 504 points (Single controller); Network up to 8 controllers |
| Circuit Cards (Max) | 2 |
| Display (LCD) | 320 *240 pixels with backlight |
| Manual Control Switches | 8 channels (Linkage panel) |
| Programmable I/O (Mainboard) | 2 channels (Output: 40mA 24VDC; Input: dry contact) |
| Sound & Light Alarm Channels | 1 channel (500mA 24VDC) |
| Historical Records | Up to 3,000 events |
| Backup Battery | 12VDC, 12AH * 2 |
| Input Voltage & Power Capacity | Input: 220VAC, 50Hz Power Capacity: 5A ，24VDC |
| External Power Output | 1A @ 24VDC |
| Communication Interface | USB 1.1 (requires RS232 to USB conversion module) |
| Dimensions | 437 *408 * 170mm |
| Weight (Without Battery) | 10.35kg |
| Fuses | Power: 250V @ 1.5A Battery: 250V @ 5A |
| Operating Temperature | 0 C to +40 C |
| Storage Temperature | -10 C to +50C |
| Relative Humidity | 95%(non-condensing) |
| Protection Level & Environment | IP30 Indoor & dry environment |
Sourcing & Technical Support
Request a Quote / Technical Support: Looking for pricing, lead time, or system configuration support for the FC18-FC1840-B Fire Alarm Controller? Feel free to contact our technical sales team for professional assistance.
