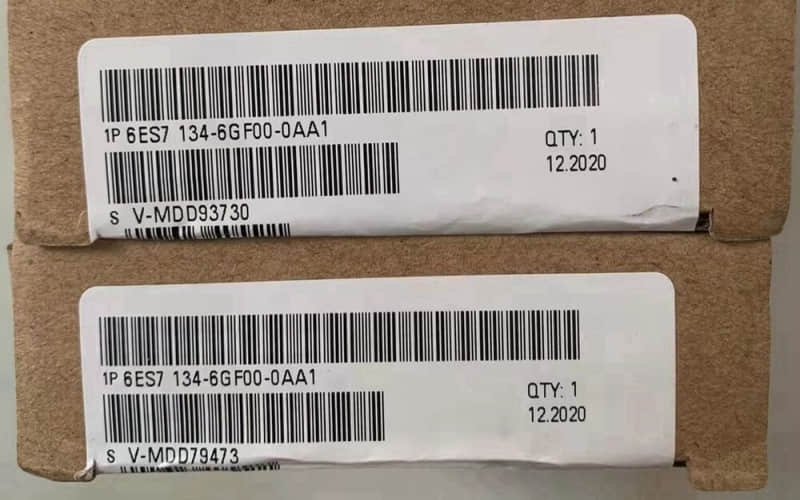

Siemens 6ES7134-6GF00-0AA1: ET 200SP Analog Input Module

6ES7134-6GF00-0AA1 General Description

The Siemens 6ES7134-6GF00-0AA1 is an analog input module designed for the ET 200SP distributed I/O system. It features eight single-ended analog inputs, supporting both 2-wire and 4-wire transducers. This module is suitable for various industrial applications requiring precise analog signal processing.

6ES7134-6GF00-0AA1 Product Specifications and Parameters

l Module Type: Analog Input Module

l Number of Inputs: 8

l Input Type: Current (2-wire and 4-wire transducers)

l Resolution: Up to 16 bits

l Operating Temperature: -30°C to 60°C (horizontal), -30°C to 50°C (vertical)

l Supply Voltage: 24 V DC

l Compatibility: BU type A0 and A1 BaseUnits

6ES7134-6GF00-0AA1 Application Fields

This module is ideal for industrial automation, process control, and monitoring systems where precise analog signal measurement is crucial.

Device Properties

1. Diagnostics: Module diagnostics with LED indicators for status and faults

2. Isolation: Channels isolated from the backplane bus

3. Colour Coding: Color code CC01 for module identification

6ES7134-6GF00-0AA1 Benefits

The module offers high-resolution analog input capabilities, robust diagnostics, and compatibility with various BaseUnits, making it versatile for industrial applications.
