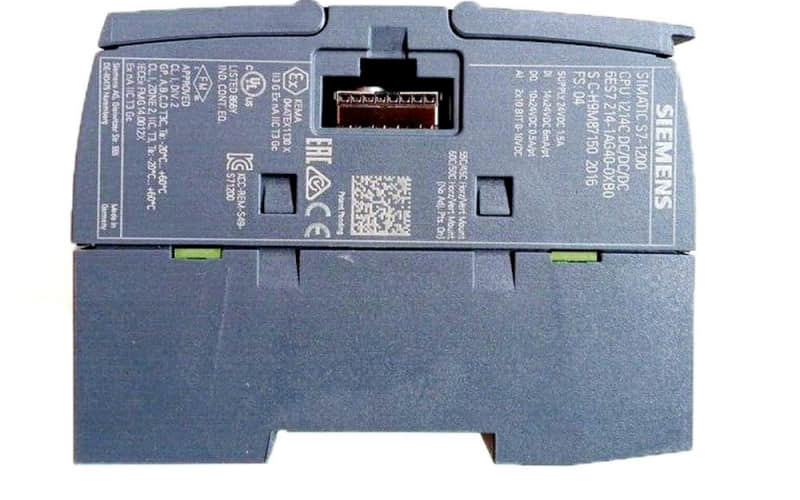

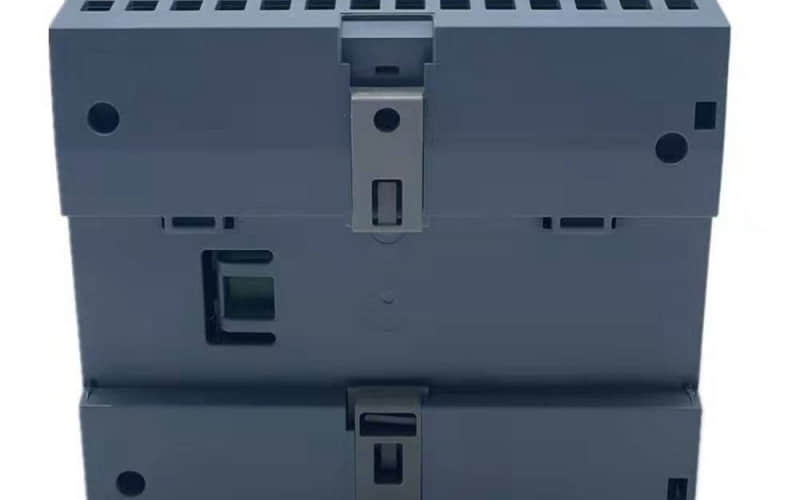

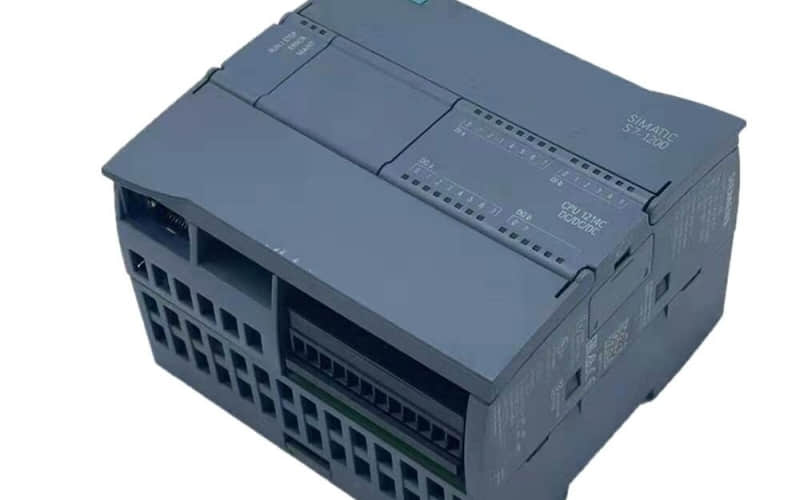

Siemens 6ES7214-1AG40-0XB0 Compact CPU

The Siemens 6ES7214-1AG40-0XB0 is a compact CPU for the SIMATIC S7-1200 series. It is designed to provide a comprehensive automation solution with integrated I/O capabilities and advanced communication features. It includes onboard digital inputs, digital outputs, and analogue inputs, making it suitable for various industrial control applications.

6ES7214-1AG40-0XB0 Product Specifications and Parameters

1. Product Type: CPU 1214C DC/DC/DC

2. Firmware Version: V4.7

3. Integrated I/O:

4. Digital Inputs: 14 channels, 24 V DC

5. Digital Outputs: 10 channels, 24 V DC

6. Analog Inputs: 2 channels, 0-10 V DC

7. Supply Voltage: 20.4 V to 28.8 V DC

8. Memory:

9. Work Memory: 150 KB

10. Load Memory: 4 MB

11. Communication: PROFINET interface

6ES7214-1AG40-0XB0 Application Fields

This CPU is primarily used in machinery and plant engineering, where compact design and integrated I/O capabilities are beneficial. It is suitable for applications such as control systems in manufacturing, process control, and automation systems.

6ES7214-1AG40-0XB0 Device Properties

l Dimensions: 110 mm width, 100 mm height, 75 mm depth

l Weight: Not specified

l Operating Temperature: -20°C to 60°C

l IP Rating: IP20

l Relative Humidity: Up to 95% without condensation

6ES7214-1AG40-0XB0 Benefits

The Siemens 6ES7214-1AG40-0XB0 offers several benefits, including its compact design, integrated I/O capabilities, and robust programming options. It supports various industrial protocols and provides reliable operation in demanding environments.
