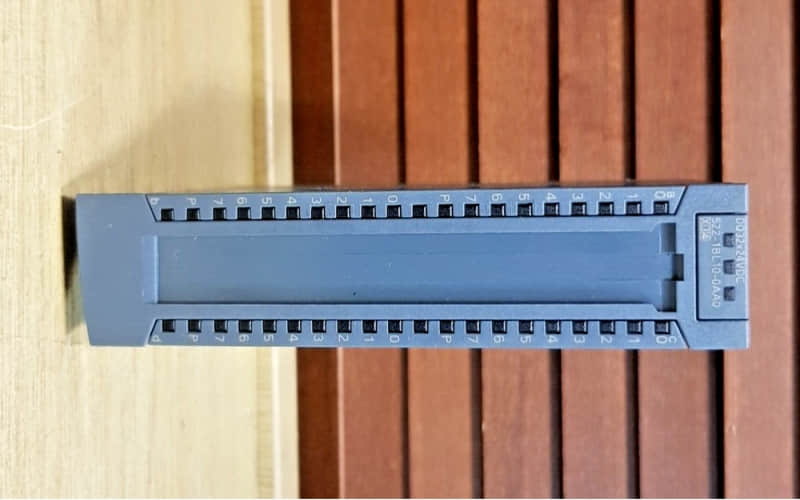

6ES7522 1BL10 0AB0 Siemens Digital Output Module

1. Overview of the 6ES7522 1BL01 0AB0

1.1 Features and Specifications

The Siemens 6ES7522 1BL01 0AB0 is a digital output module designed for the SIMATIC S7-1500 series PLCs.

1.1.1 Features:

Type: Digital Output Module for the Siemens S7-1500 series.

Integration: Seamlessly integrates with the SIMATIC S7-1500 system, offering high reliability and flexibility in industrial automation tasks.

LED Indicators: Equipped with LEDs to indicate the operational status of each output channel, simplifying troubleshooting and monitoring.

High-Speed Switching: Suitable for fast, reliable control of actuators, relays, and other industrial equipment.

Compact Design: Space-saving and optimized for use in tight control cabinets.

Diagnostic Functions: Advanced diagnostic capabilities help detect faults and malfunctions in connected devices or wiring.

Wide Range of Applications: Ideal for applications that require direct control of output devices in manufacturing processes, control systems, and industrial automation.

1.1.2 Specifications:

l Product Family: SIMATIC S7-1500, Digital Output Module

l Part Number: 6ES7522-1BL01-0AB0

l Outputs: 16 digital output channels

l Output Type: Transistor output

l Output Voltage: 24V DC

l Output Current per Channel: 0.5 A (max.)

l Rated Load: 24V DC, 0.5 A per channel

l Current Consumption: Typically 100mA from the backplane

l Status Indicators: LED indicators for each output channel

l Bus Connection: High-speed communication via PROFINET/PROFIBUS

l Protection Features: Overload and short-circuit protection for each output channel

l Operating Temperature Range: 0°C to 60°C

l Mounting Type: DIN rail mountable

l Dimensions (W x H x D): 40 mm x 130 mm x 125 mm

l Weight: Approximately 300g

l Environmental Conditions: Designed for industrial environments, with high resistance to vibrations, shocks, and temperature fluctuations.

1.2 Applications in Industrial Automation

The 6ES7522-1BL01-0AB0 is ideal for controlling machines and devices such as motors, actuators, and relays. It provides precise output control, ensuring that machines operate according to the specified conditions in automated systems.

Assembly Lines:

In assembly lines, this module can control various output devices like robotic arms, conveyors, and pneumatic cylinders. The module’s fast response time ensures that these devices operate in sync, improving productivity and reducing downtime.

Process Automation:

Used in chemical, pharmaceutical, and food processing plants, the module helps control valves, pumps, mixers, and other equipment. It ensures accurate control in continuous processes, where constant feedback and control are necessary to maintain the desired output.

Packaging Systems:

In packaging automation, this module controls output devices like sealing machines, labeling equipment, and conveyor systems. The high-speed switching capabilities help maintain high throughput while ensuring reliability and accuracy in packaging tasks.

Energy Management:

The module controls pumps in water treatment plants. It aids in monitoring energy use and ensuring efficient operation through optimized control of various outputs.

Building Automation:

The 6ES7522-1BL01-0AB0 module drives electrical components in building automation systems. By managing these outputs, it enhances comfort, efficiency, and energy savings in commercial and residential buildings.

Automated Warehousing:

In automated storage and retrieval systems (ASRS), the module plays a key role in managing output devices. It boosts operational efficiency by enabling faster material handling. Additionally, it enhances the throughput of the storage system, ensuring smooth operation.

Automotive Manufacturing:

The module can control robotic assembly stations in the automotive industry. It guarantees precise operations, executing tasks with accuracy and speed. As a result, production rates rise, and human error decreases.

Test Systems:

In test and calibration systems, the 6ES7522-1BL01-0AB0 module controls output devices in product inspection. It provides reliable switching and diagnostic capabilities to ensure the integrity of the test environment.

Smart Grids and Industrial Automation:

For controlling electrical grids and industrial plants, this module aids in regulating the operation of actuators and equipment. Its diagnostic capabilities also help in maintaining system integrity and preventing system failures in critical infrastructure.

2. Integration with Programmable Logic Controllers (PLCs)

2.1 Role in Digital Control Systems

The Siemens 6ES7522-1BL01-0AB0 digital output module plays a key role in digital control systems by integrating with Siemens PLC

v Digital Actuation:

The module converts PLC control signals into 24V DC outputs to control devices like motors, valves, and relays. It ensures precise actuation in automated systems.

v Real-Time Control:

With high-speed switching capabilities, the module provides quick and accurate control of robotic movement and conveyor systems.

v Seamless Integration:

The module integrates smoothly with S7-1500 PLCs using PROFINET/PROFIBUS, allowing easy communication between the PLC and physical outputs in industrial automation systems.

v Diagnostics and Fault Detection:

Equipped with LED indicators and diagnostic functions, it helps detect faults in connected devices, improving system reliability and simplifying troubleshooting.

v Flexibility in Automation:

Supporting up to 16 outputs, the module can control multiple devices simultaneously, making it suitable for various applications in automation systems.

v Protection Features:

Overload and short-circuit protection for each channel ensures safe operation and enhances system stability.

v Simplified Maintenance:

Its compact design and diagnostic features streamline maintenance and troubleshooting.

2.2 Enhancing Digital Signal Processing

The Siemens 6ES7522-1BL01-0AB0 digital output module enhances digital signal processing in several key ways. It enables a real-time switching of up to 16 digital outputs.

The module also provides accurate signal amplification to power high-demand devices. It features noise immunity, which protects the signal integrity, even in harsh industrial environments.

Built-in diagnostics offer real-time feedback, allowing quick troubleshooting. This helps maintain signal health and system reliability.

By optimizing signal flow and ensuring efficient processing, the module delivers precise, synchronized control across automated systems.

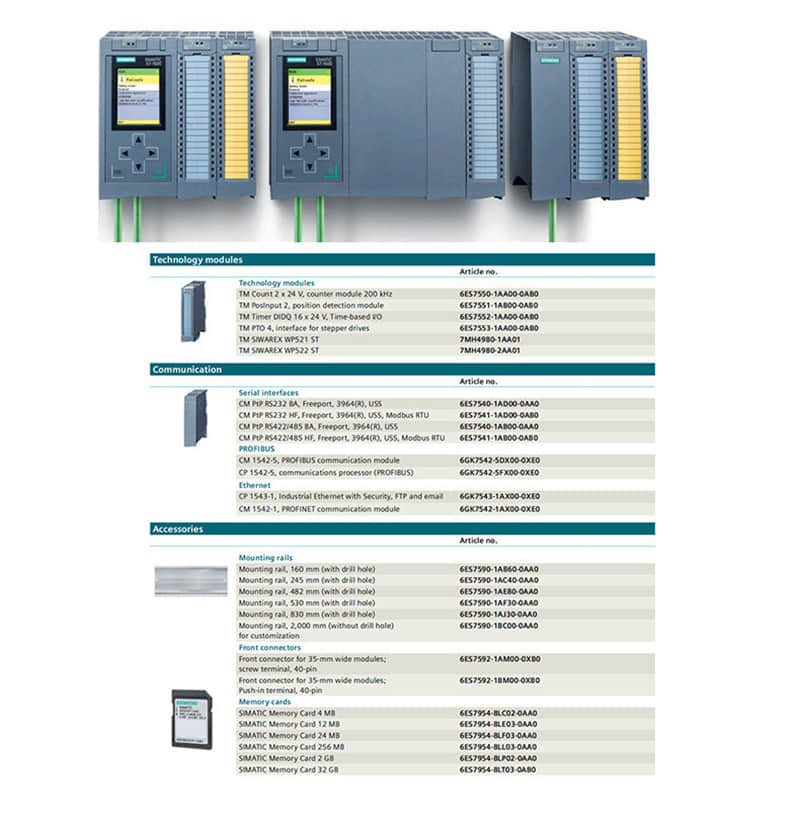

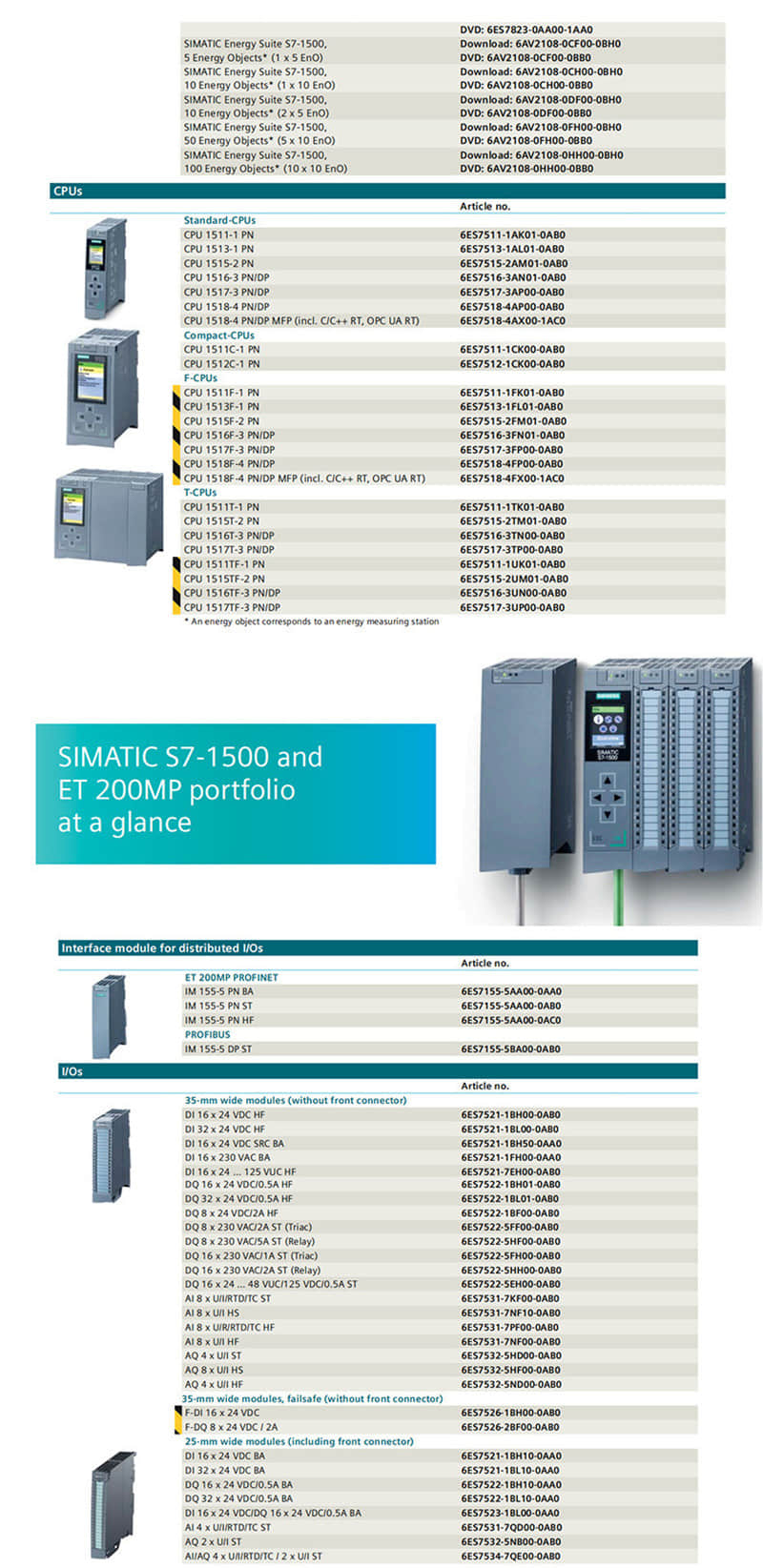

3. Product Positioning and Highlights of the SIMATIC S7-1500 Controller

Maximum productivity – ultimate ease of use

The new-generation SIMATIC S7-1500 controller sets a new benchmark through comprehensive innovations.

4. Importance in Automation Engineering

4.1 Impact on Digital Communication Technology

The Siemens 6ES7522-1BL01-0AB0 digital output module significantly impacts digital communication technology in automation systems by enabling:

ü Efficient Data Flow:

It integrates with Siemens S7-1500 PLCs via PROFINET/PROFIBUS, ensuring fast, reliable communication between the PLC and output devices.

ü  Real-Time Monitoring:

Built-in diagnostics provide immediate feedback on faults, ensuring quick corrective actions and improving system responsiveness and stability.

ü Reliable Signal Transmission:

The module handles high-frequency signals with minimal interference, ensuring clear and uninterrupted communication, even in noisy environments.

ü Scalability and Flexibility:

With 16 outputs, it enables scalable communication in large systems, reducing the need for extra modules and simplifying architecture.

ü  Industry 4.0 and IoT Integration:

With PROFINET on board, the module plugs straight into IoT and Industry 4.0 environments.

4.2 Case Studies and Real-world Examples

l Automotive Manufacturing – Robotic Arm Control

Challenge: A leading automotive manufacturer needed to automate the assembly of complex vehicle parts using robotic arms that require precise digital control.

Each robotic arm required high-speed and accurate control for tasks like welding, assembly, and part placement.

Outcome: The module enabled the synchronized operation of robotic arms. The built-in diagnostics helped monitor robotic performance and quickly detect faults, preventing costly downtime.

l Food Processing – Conveyor and Sorting Systems

Challenge

A food processor needed to guarantee that only correctly packaged items reached customers. This required real-time, pinpoint control of the conveyor-mounted sorting actuators.

Solution

A Siemens S7-1500 PLC, paired with the 6ES7522-1BL01-0AB0 digital output module, drives every actuator. Vision cameras and sensors feed the PLC instant data; the module then fires the actuators.

Outcome

Fast, reliable switching lets the line sort products at full belt speed. Built-in diagnostics flag failing actuators before they cause jams, cutting downtime. Throughput is up 25 %, and product quality is higher.

l Smart Building Automation – Lighting and HVAC Control

Challenge: A commercial building owner needed to optimize energy consumption by automating lighting and HVAC systems based on occupancy and environmental conditions.

The Siemens S7-1500 PLC integrates the 6ES7522-1BL01-0AB0 to control lighting through digital outputs. The system used occupancy sensors and environmental data to adjust settings automatically.

The system achieved up to 30% energy savings by reducing power usage during off-hours and adjusting HVAC operations. The built-in diagnostics allowed for proactive maintenance, improving system uptime and operational efficiency.

l Water Treatment – Pump and Valve Control

Challenge

A city waterworks had to coordinate pumps and valves at several sites to keep flowing efficiently around the clock.

Solution

The plant added the 6ES7522-1BL01-0AB0 digital output card to its Siemens S7-1500 PLC. The module’s 16 outputs now drive every pump in real time, all linked by PROFINET for millisecond response.

Outcome

We route the water exactly where needed. On-board diagnostics flag valve or pump faults before they escalate, preventing shutdowns and expensive repairs.

l Packaging Industry – High-Speed Packaging Line Automation

Challenge

A consumer-goods packager had to speed up its lines without introducing sorting or packaging mistakes.

Solution

A Siemens S7-1500 PLC paired with the 6ES7522-1BL01-0AB0 digital output module drives the labelers, sealers, and conveyors. All devices exchange data over PROFINET for millisecond-level, error-free signaling.

Outcome

Throughput rose 40 %, handling accuracy improved, and packaging defects fell. Built-in diagnostics spot output-channel faults before they cause downtime.

l Pharmaceutical Manufacturing – Controlled Environment Systems

Challenge: A pharmaceutical company needed precise control over critical environmental parameters such as temperature, humidity, and airflow to maintain strict product standards.

Solution: The Siemens S7-1500 PLC incorporates the 6ES7522-1BL01-0AB0 to control HVAC systems in clean rooms. It enabled precise regulation of air quality and temperature, with real-time adjustments based on sensor inputs.

Outcome: The system maintained strict environmental conditions, ensuring compliance with industry standards for pharmaceutical manufacturing. The diagnostic features helped reduce the risk of equipment failure, improving both product quality and operational efficiency.
