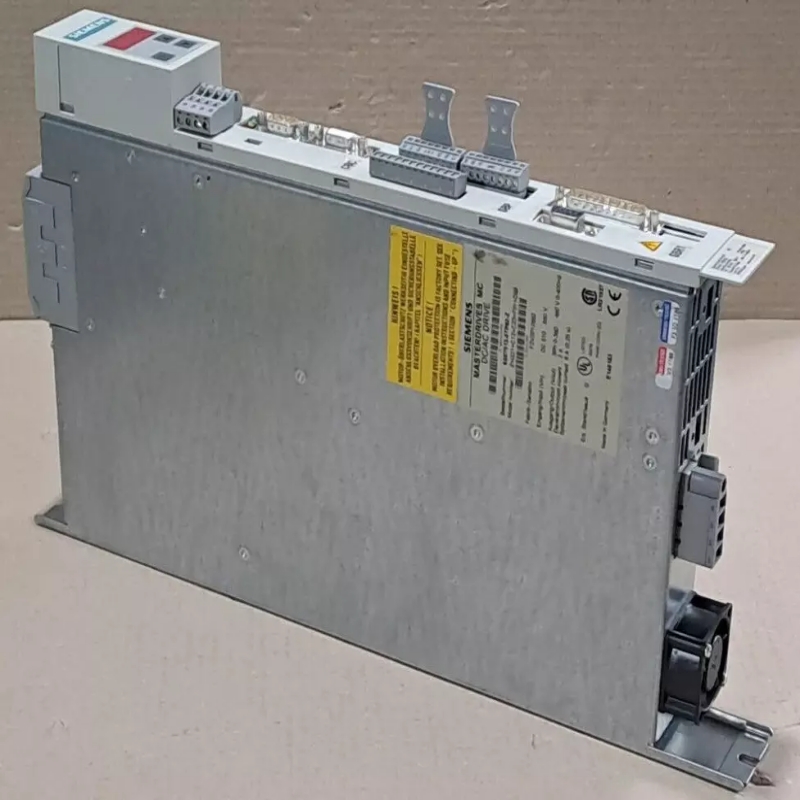

Siemens 6SE7012-0TP50 Inverter

General Description:

The Siemens 6SE7012-0TP50 is part of the SIMOVERT MASTERDRIVES MOTION CONTROL COMPACT PLUS series, an inverter designed for motion control applications. It is a spare part that comes with CD documentation, providing users with the necessary information for installation and operation.

Technical Specifications:

l Part Number: 6SE7012-0TP50

l Product Type: Frequency Converter Module

l Input Voltage: 380 - 480V AC

l Output Voltage: 0 - 480V AC

l Output Frequency: 0 - 400 Hz

l Rated Power: 5.5 kW

l Weight: Approx. 5.6 kg

l Mounting Type: Rack or wall mount

l Enclosure: IP20 (indoor use)

l Cooling Method: Air cooling

l Control Type: Vector control

l Communication Interface: RS485, Profibus DP, CANopen

l Certifications: CE, UL, RoHS compliant

l The product is no longer available; the successor model is 6SE7012-0TP70

Detailed Features of SIEMENS 6SE7012-0TP50 :

A. Precise Motor Control: The 6SE7012-0TP50 ensures smooth and efficient motor speed control, providing high-precision performance for demanding applications.

B. Energy Efficiency: Optimized for energy conservation, reducing operational costs by offering energy-saving modes without compromising system performance.

C. Seamless Integration: Designed for compatibility with Siemens automation systems, enabling easy integration with existing setups and reducing installation time.

D. Robust Protection Features: Built-in protection mechanisms such as overcurrent, overheating, and short circuit protection ensure long-lasting reliability in harsh environments.

E. Advanced Communication Protocols: Equipped with various communication options, including RS485 and Profibus DP, allowing easy integration into industrial communication networks.

Applications of SIEMENS 6SE7012-0TP50 :

(1) Industrial Automation: The 6SE7012-0TP50 is used in various industrial settings where precise motion control is required. It is suitable for packaging machines, conveyor systems, and other machinery that demand accurate motor control.

(2) HVAC Systems: Used for controlling motors in heating, ventilation, and air conditioning systems, ensuring optimal performance and energy efficiency.

(3) Conveying Systems: Perfect for conveyor belts and material handling systems, where precise speed control is essential.

(4) Pumping Stations: Applied in water and wastewater pumping systems, ensuring efficient and reliable motor operation.

(5) Machine Tools: Used in CNC and other high-precision machine tools to control motor speeds and improve machining accuracy.

Installation of SIEMENS 6SE7012-0TP50 :

l A qualified technician should install the SIEMENS 6SE7012-0TP50 module to local electrical and safety codes.

l Mounting can be done on a standard rack or wall, ensuring adequate airflow for cooling.

l Ensure all power connections are made securely and correctly, and all communication interfaces are configured adequately before operation.

l The unit should be connected to an appropriate power source and configured using Siemens’ software for optimal performance.

Related Part Numbers:

l SIEMENS 6SE7012-0TP50 Frequency Converter Module

l SIEMENS 6SE7012-0TP51 Frequency Converter Module

l SIEMENS 6SE7012-0TP52 Frequency Converter Module

l SIEMENS 6SE7012-0TP53 Frequency Converter Module

l SIEMENS 6SE7012-0TP54 Frequency Converter Module

For the previous part, please refer to the link: Siemens BDS051
