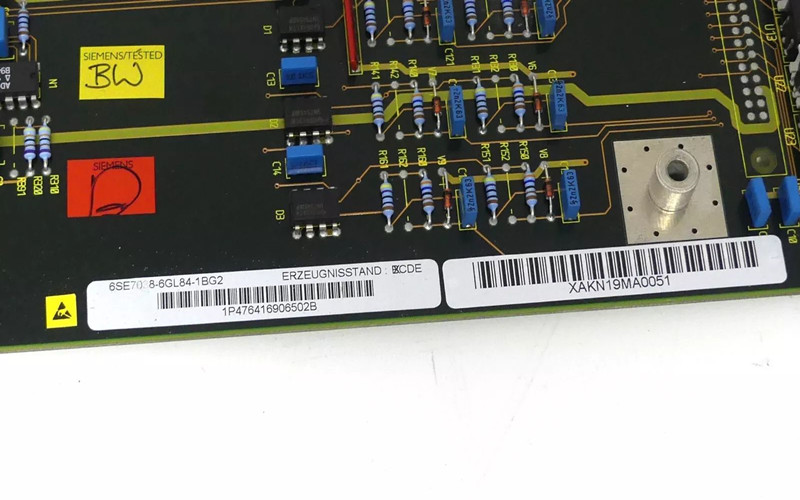

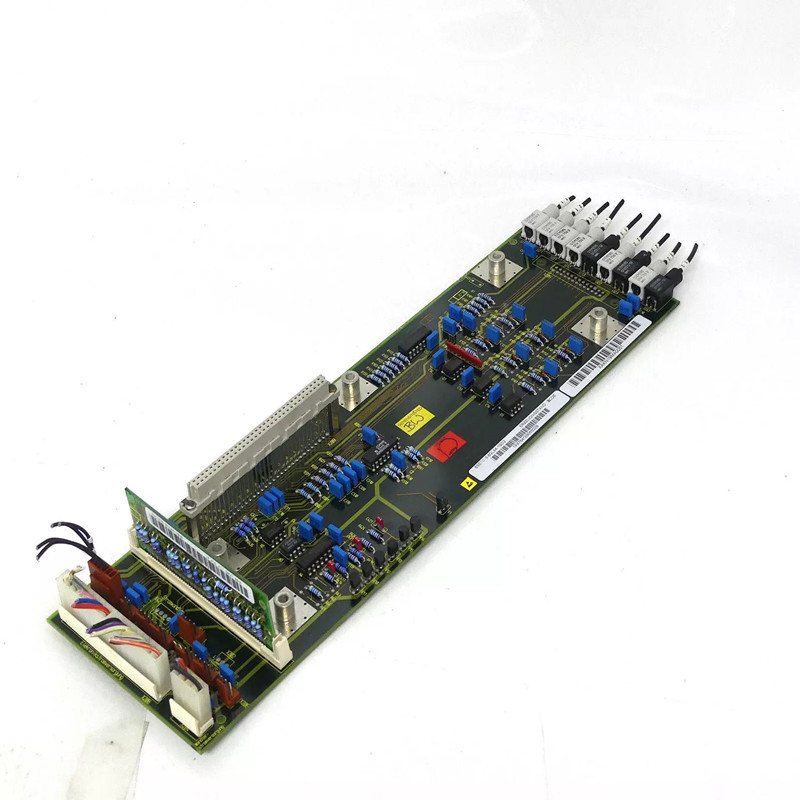

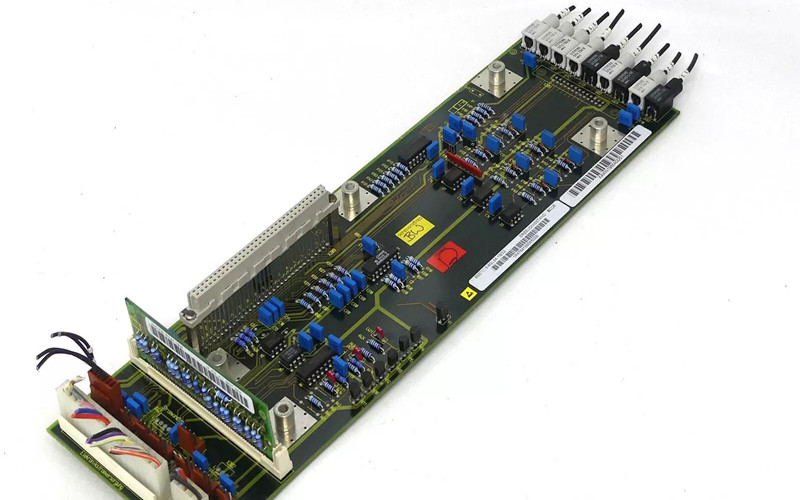

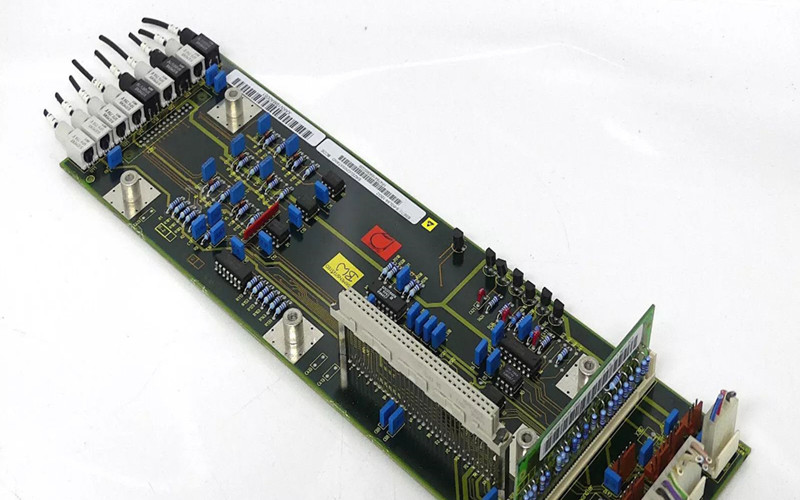

Siemens 6SE7038-6GL84-1BG2 Frequency Converter Module

General Description

The Siemens 6SE7038-6GL84-1BG2 is a sophisticated frequency converter module that precisely controls industrial drives and machinery. It is engineered to provide efficient and reliable operation, ensuring smooth operation even under demanding conditions. This part is widely used in automation systems where high performance and reliability are critical.

Technical Specifications

l Part Number: 6SE7038-6GL84-1BG2

l Type: Frequency Converter Module

l Input Voltage: 380-480V AC

l Output Voltage: 0-600V AC

l Frequency Range: 0-500Hz

l Power Rating: 4kW

l Operating Temperature: 0°C to 40°C

l Storage Temperature: -20°C to 70°C

l Dimensions: 220 x 220 x 150 mm

l Weight: 1.5 kg

l Protection Class: IP20

l Communication Interface: Profibus DP

l Cooling Type: Forced air cooling

Detailed Features of Siemens 6SE7038-6GL84-1BG2

1. Precise Frequency Control: This system provides advanced control algorithms for precise motor speed regulation, ensuring smooth and reliable performance.

2. Energy-Efficient Operation: Optimized for minimal energy consumption, reducing operational costs.

3. Compact Design: This space-saving design is suitable for various industrial applications and ensures ease of integration into existing systems.

4. Durability: The module is resistant to dust and moisture and is built for long-lasting performance in harsh industrial environments.

5. Flexible Communication: Supports Profibus DP communication protocol, allowing seamless integration with various automation systems.

Applications

The Siemens 6SE7038-6GL84-1BG2 is ideal for use in industrial automation systems, including but not limited to:

A. Conveyor Systems: Ensures smooth and efficient operation of conveyor belts, improving throughput.

B. Pumps & Fans: Provides precise control for pumps and fans, optimizing energy usage and performance.

C. Machine Tools: Enhances the performance of CNC machines and other industrial machinery, ensuring consistent and accurate operations.

D. HVAC Systems: Used in HVAC applications for precise fan and pump control, reducing energy costs while maintaining performance.

Installation of Siemens 6SE7038-6GL84-1BG2

l Step 1: Ensure the power supply is turned off before installation.

l Step 2: Mount the module securely to the designated panel or enclosure.

l Step 3: Connect the input power supply cables to the module’s terminal block, ensuring proper polarity and tight connections.

l Step 4: Attach the output connections to the controlled motor or machinery.

l Step 5: Connect the communication interface (Profibus DP) to the control system.

l Step 6: Perform a power-on test to verify correct operation before full commissioning.

Related Part Numbers of Siemens 6SE7038-6GL84-1BG2

l Siemens 6SE7038-6GL84-1BG1

l Siemens 6SE7038-6GL84-1BG3

l Siemens 6SE7038-6GL84-1BG4

l Siemens 6SE7038-6GL84-1BG5
