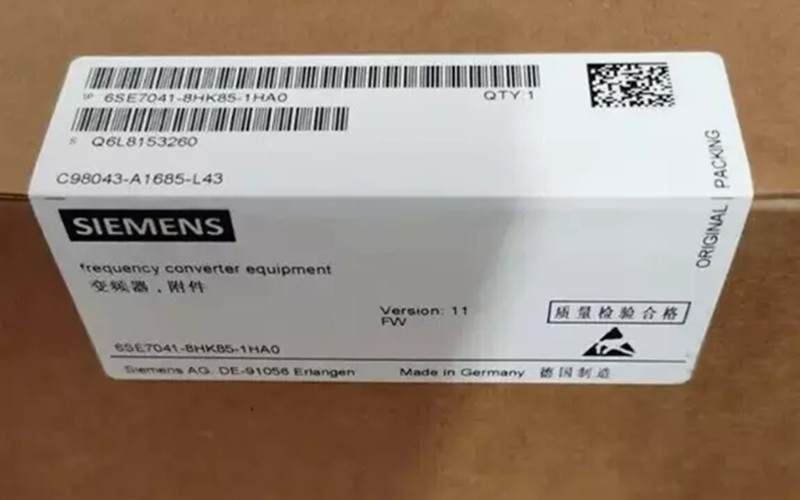

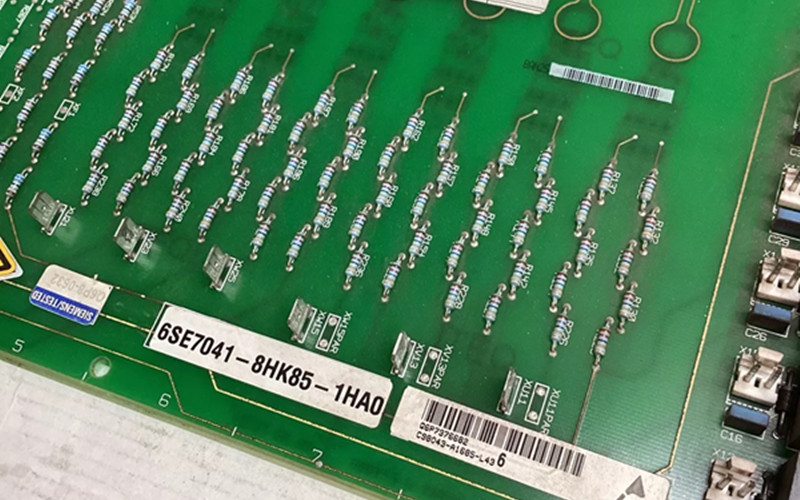

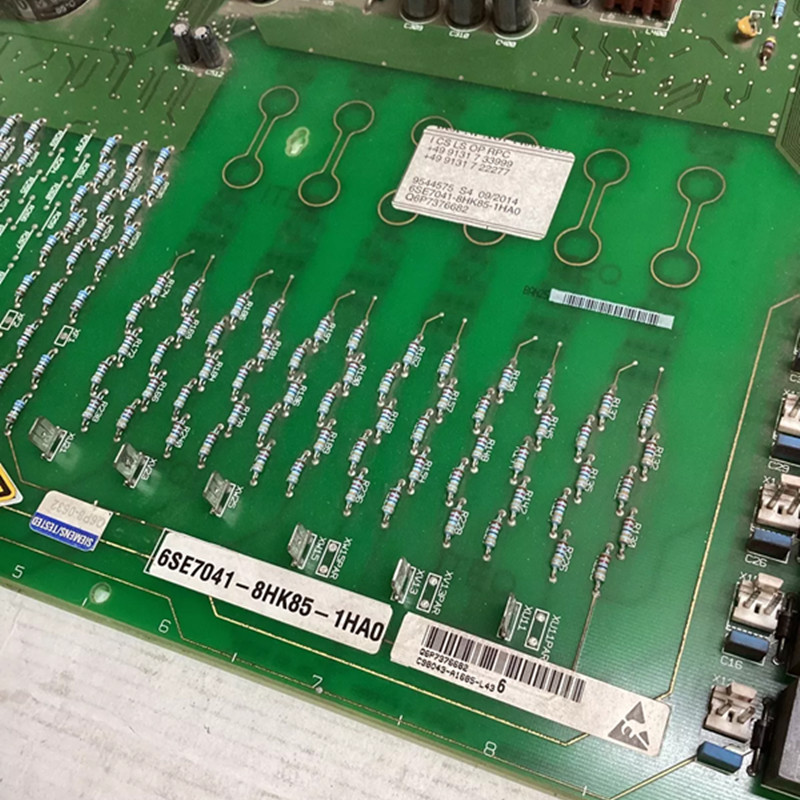

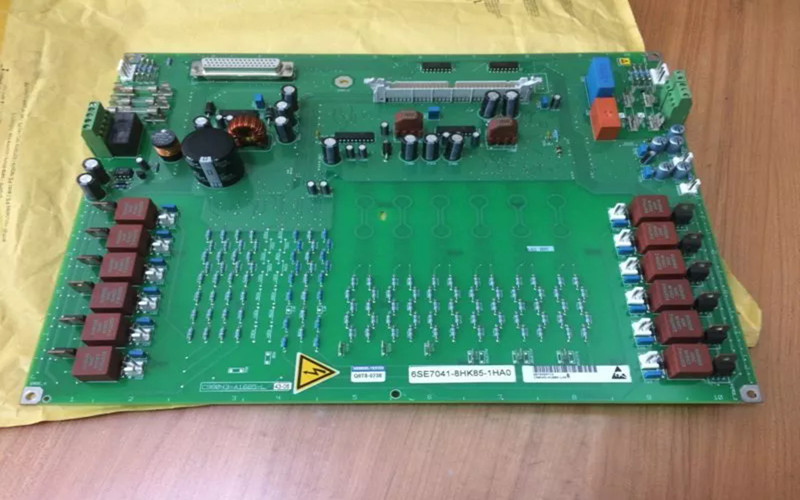

Siemens 6SE7041-8HK85-1HA0 Frequency Converter Module

General Description

The Siemens 6SE7041-8HK85-1HA0 is a high-performance frequency converter module designed to provide precise control and efficiency in industrial automation systems. This module is precisely engineered to meet the needs of demanding applications, offering robust motor control with minimal energy consumption. Its design ensures reliable operation even in harsh industrial environments, making it a key component for optimizing the performance of industrial machinery.

Technical Specifications of Siemens 6SE7041-8HK85-1HA0

l Part Number: 6SE7041-8HK85-1HA0

l Type: Frequency Converter Module

l Input Voltage: 380-480V AC

l Output Voltage: 0-600V AC

l Frequency Range: 0-500Hz

l Power Rating: 7.5 kW

l Operating Temperature: -10°C to 50°C

l Storage Temperature: -20°C to 70°C

l Dimensions: 250 x 250 x 200 mm

l Weight: 3.5 kg

l Protection Class: IP20

l Communication Interface: Profibus DP, Ethernet

l Cooling Type: Forced air cooling

Detailed Features of Siemens 6SE7041-8HK85-1HA0

1. High-Performance Motor Control: This technology offers precise control over motor speeds, ensuring stable and efficient operation across various applications.

2. Energy Efficiency: Optimized for energy-saving performance, reducing operational costs and carbon footprint.

3. Robust Design: Engineered to endure challenging industrial environments with high protection ratings and reliable cooling.

4. Flexible Communication Interfaces: Supports Profibus DP and Ethernet for seamless integration into industrial automation systems.

5. Compact and Efficient: Space-saving design allows easy installation in tight spaces without compromising performance.

Applications

1. The Siemens 6SE7041-8HK85-1HA0 frequency converter is ideal for controlling motors in a wide range of industrial applications, including:

2. Material Handling Systems: Provides smooth and efficient motor control for conveyors, lifts, and other material handling systems.

3. Pumps and Fans: Enhances pumps and ventilation systems’ performance and energy efficiency.

4. HVAC Systems: Controls HVAC motors for energy-efficient operation in commercial and industrial buildings.

5. CNC Machinery: Integrates seamlessly with CNC machines for precise and reliable motor control.

Installation of Siemens 6SE7041-8HK85-1HA0

Step 1: Ensure power is disconnected before installation.

Step 2: Mount the frequency converter module to the control panel or machinery enclosure.

Step 3: Connect the power supply terminals to the input power cables (380-480V AC).

Step 4: Attach the output cables to the motor or machinery, ensuring proper polarity.

Step 5: Integrate the Profibus DP or Ethernet communication interfaces into the system.

Step 6: Verify installation by performing an initial system check and adjusting settings.

Related Part Numbers

l Siemens 6SE7041-8HK85-1HA1

l Siemens 6SE7041-8HK85-1HA2

l Siemens 6SE7041-8HK85-1HA3

l Siemens 6SE7041-8HK85-1HA4

For the previous part, please refer to the link:  Siemens 6SE7038-6GL84-1BG2
