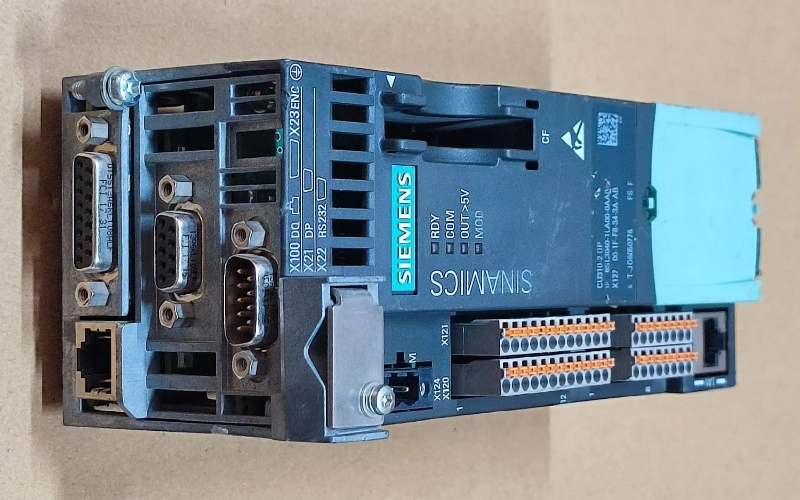

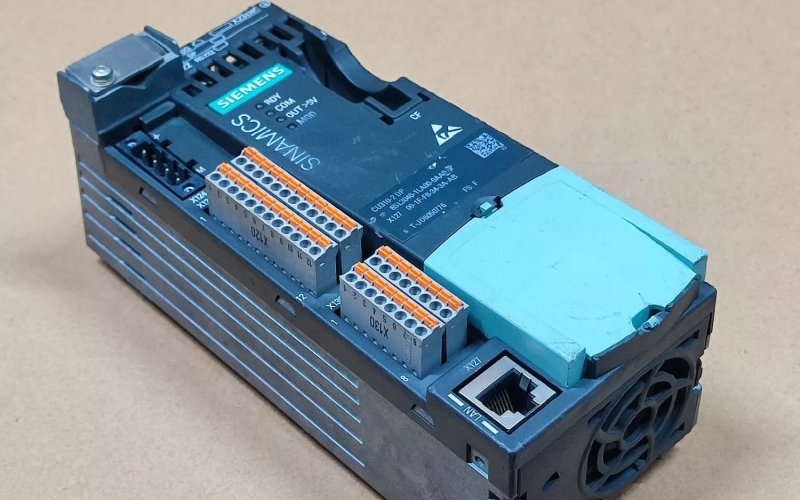

Siemens 6SL3040-1LA00-0AA0 Drive Unit

General Description:

The Siemens 6SL3040-1LA00-0AA0 is an advanced drive unit from the SINAMICS S120 series designed to optimize the performance of motor control systems in industrial automation applications. Built for high reliability, this unit offers exceptional power management, ensuring that motors operate efficiently and cost-effectively. The compact design makes it ideal for installations in environments with space constraints while providing seamless integration with other Siemens automation equipment.

Technical Specifications:

l Part Number: Siemens 6SL3040-1LA00-0AA0

l Input Voltage: 380–480 V AC

l Current Rating: 10 A

l Control Type: Vector control, V/f control

l Output Frequency: 0–500 Hz

l Protection Class: IP20

l Ambient Temperature: -10°C to +60°C

l Cooling Type: Air-cooled

l Dimensions (W x H x D): 200 mm x 250 mm x 150 mm

l Weight: 3.5 kg

l Certifications: CE, UL, RoHS compliant

Detailed Features:

l Motor Control Flexibility: The Siemens 6SL3040-1LA00-0AA0 supports vector and V/f control modes, offering flexibility for various motor types and applications.

l Compact Design: Designed to save space, this unit fits seamlessly into tight installations, making it ideal for retrofits or applications with limited space.

l Energy Efficiency: The drive unit is engineered for energy-efficient operation, helping reduce operational costs and minimize energy consumption while maintaining high performance.

l Built-in Protection: This product offers comprehensive protection features, including overload, short-circuit, and thermal protection, to ensure safe and reliable operation.

l Easy Integration: Fully compatible with Siemens automation systems, ensuring smooth integration into existing setups for optimal system performance.

l User-Friendly Interface: Simple, intuitive control panel for ease of use, making configuration and monitoring straightforward for operators.

Applications of Siemens 6SL3040-1LA00-0AA0:

A. Industrial Motor Control: This product is ideal for a wide range of industrial motor control applications, such as pumps, fans, compressors, and conveyors.

B. Automated Manufacturing: Perfect for controlling motors in automated manufacturing lines where space and efficiency are crucial.

C. Material Handling Systems: Used in material handling applications to manage motor speeds and improve operational efficiency.

D. HVAC Systems: Suitable for HVAC systems where efficient control of motor-driven components is essential for energy savings and performance.

Installation of Siemens 6SL3040-1LA00-0AA0:

1. Location: Install the drive unit in a dry, dust-free, well-ventilated area with adequate cooling space.

2. Wiring: Connect the unit according to the wiring diagram, ensuring all terminals are securely connected and grounded.

3. Parameter Setting: Use the easy-to-use control interface to configure the drive parameters to suit the connected motor and specific application needs.

4. Testing: After installation, thoroughly test to verify the correct operation and ensure the unit functions optimally.

Related Part Numbers:

l Siemens 6SL3040-1LA00-0AA0

l Siemens 6SL3040-1LA00-0AA1

l Siemens 6SL3040-1LA00-0AA2

l Siemens 6SL3040-1LB00-0AA0
