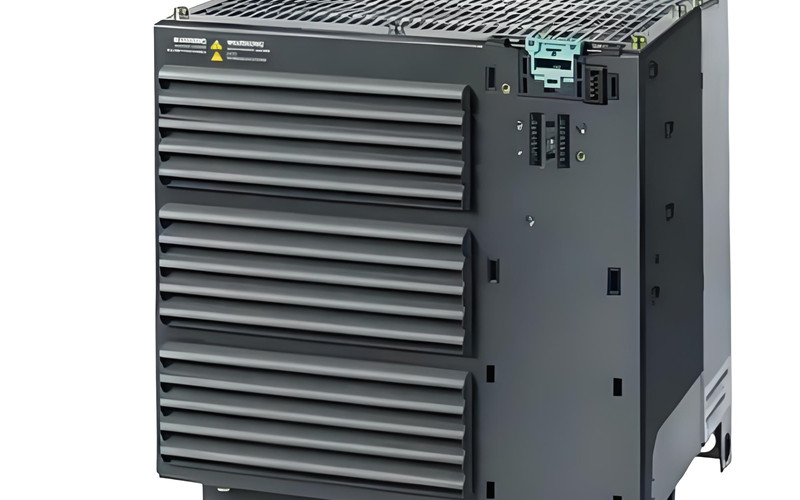

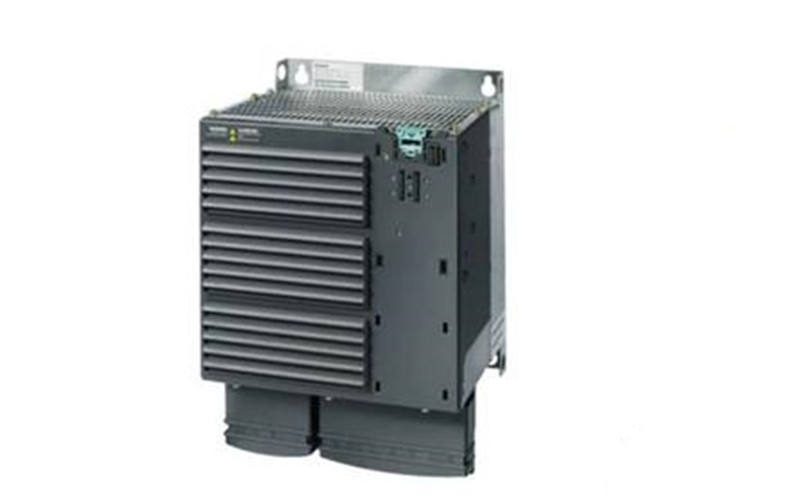

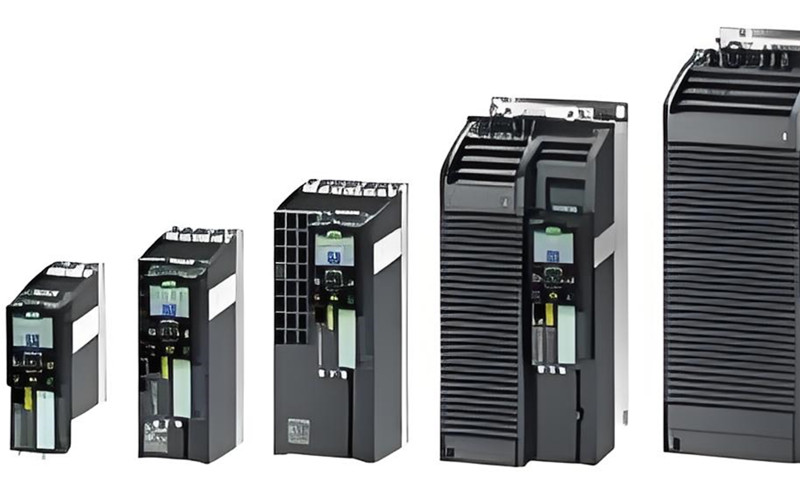

Siemens 6SL3225-0BE34-5UA0 SINAMICS G120 Power Module

General Description:

The Siemens 6SL3225-0BE34-5UA0 is a high-performance power module from the SINAMICS G120 series. It is designed to provide efficient motor control in various industrial applications and offers features such as regeneration capability and high overload performance.

Technical Specifications:

l Model: 6SL3225-0BE34-5UA0

l Type: SINAMICS G120 Power Module PM250

l Input Voltage: 3AC 380-480V ±10%

l Frequency: 47-63 Hz

l Output Power: 45 kW (with high overload capability of up to 200% for short durations)

l Regeneration Capability: Yes

l Protection Class: IP20

Detailed Features of Siemens 6SL3225-0BE34-5UA0 :

l High Overload Capacity: Capable of handling overloads of up to 200% for short periods (3 seconds) and 150% for longer durations (57 seconds).

l Compact Design: Space-saving design for easy integration into existing systems.

l Versatile Applications: Suitable for various motor types and applications, including pumps, fans, and conveyor systems.

l User-Friendly Interface: Easy setup and operation with intuitive controls.

l Integrated Safety Features: Enhanced safety mechanisms protect the module and connected equipment.

Applications:

Industrial automation systems

l Pump control

l Conveyor systems

l HVAC applications

l Material Handling

Installation :of Siemens 6SL3225-0BE34-5UA0

A. Ensure the installation site meets the required environmental conditions (temperature, humidity).

B. Mount the module securely in an appropriate enclosure.

C. Connect the power supply according to the specified wiring diagram.

D. Configure the parameters using the user interface or software tools provided by Siemens.

E. Test the system to ensure proper operation before full deployment.

Related Part Numbers of Siemens 6SL3225-0BE34-5UA0:

l 6SL3225-0BE34-5UA0

l 6SL32250BE345UA0

For the previous part, please refer to the link: Siemens 6SL3210-1SE31-5UA0
