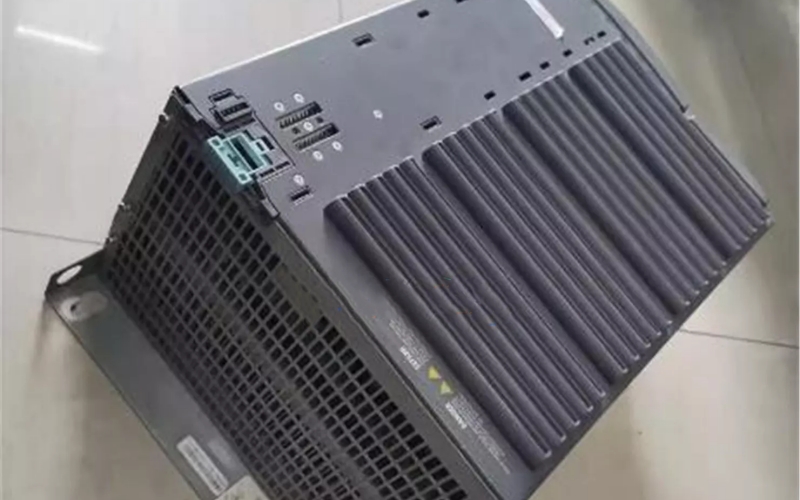

Siemens SINAMICS S120 Drive Controller 6SL3210-1SE31-5UA0
General Description
The Siemens 6SL3210-1SE31-5UA0 is a control unit from the SINAMICS S120 series, specifically designed for advanced drive applications. This unit offers robust communication and control functions, making it ideal for managing complex motion control tasks in industrial environments.
Technical Specifications
l Product Type: Control Unit
l Model Number: CU320-2 DP
l Power Supply Voltage: 24 V DC
l Current Consumption: 6.5 A
l Ambient Temperature Range: 0 to 55 °C (32 to 131 °F)
l Weight: Approx. 1.5 kg
l Dimensions: 100 x 150 x 120 mm
Interfaces:
A. 4 x DRIVE-CLiQ sockets for communication with other devices
B. 1 x PROFIBUS interface with PROFIdrive V4 profile
C. 1 x RS232 serial interface
D. Slot for CompactFlash card
Detailed Features
1) Centralized Control Architecture: Manages multiple drives and axes efficiently through a single control unit.
2) Integrated Safety Functions: Supports safety features such as Safe Torque Off (STO) to enhance operational safety.
3) Flexible Configuration: Allows customization of parameters to meet specific application needs.
4) High Performance: Designed for high-speed processing and efficient data handling, ensuring optimal performance in demanding environments.
5) The Siemens 6SL3210-1SE31-5UA0 is suitable for:
6) Multi-axis motion control systems
7) Robotics and automation applications
8) Material handling systems
9) CNC machinery and other precision equipment
To install the Siemens 6SL3210-1SE31-5UA0:
l Ensure the power supply is disconnected before installation.
l Mount the control unit securely in an appropriate enclosure.
l Connect all necessary input/output wiring according to the provided specifications.
l Power on the system and configure settings using the proper software tools.
Related Part Numbers
l Siemens SINAMICS S120 CU310 Control Units (6SL3210 series)
l Siemens SINAMICS S120 CU320 Control Units
For the previous part, please refer to the link: Siemens 6SL3040-1LA00-0AA0
