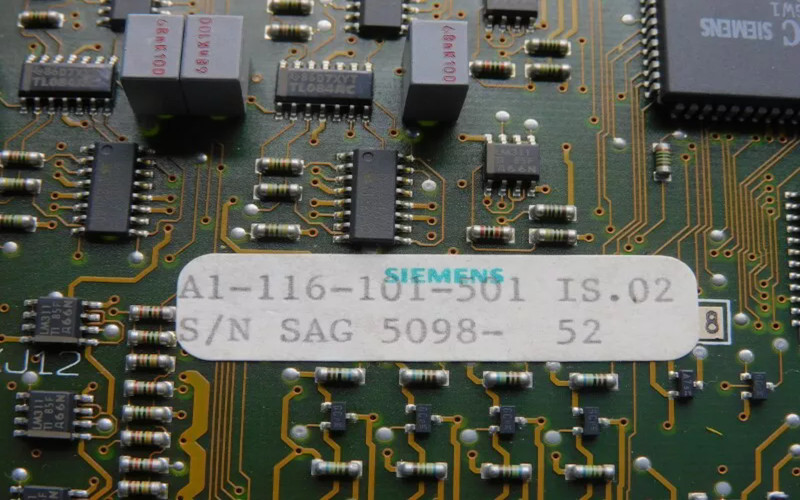

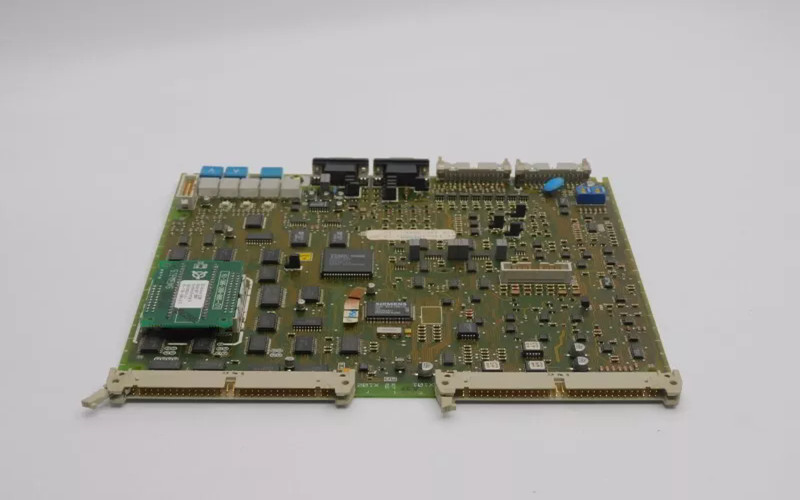

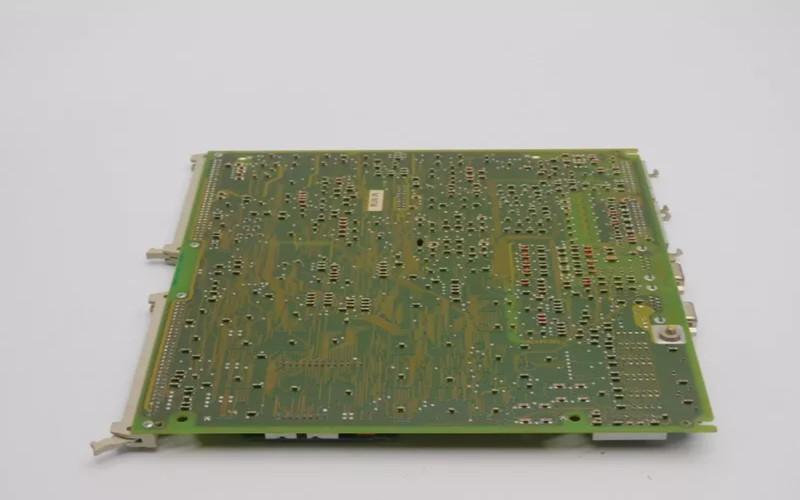

Siemens A1-116-101-501 DC Drive

General Description of Siemens A1-116-101-501:

The Siemens A1-116-101-501 is a high-performance DC drive that provides precise control and efficient operation in various industrial applications. It is engineered for reliability and ease of integration, making it suitable for new installations and retrofitting existing systems.

Technical Specifications:

l Input Voltage: 380-480V AC

l Output Voltage: Adjustable up to 500V DC

l Power Rating: Up to 100 HP

l Control Type: Vector control with closed-loop feedback

l Dimensions: Compact design for easy installation

l Weight: Approximately 25 kg

l Cooling Method: Forced air cooling

Detailed Features of Siemens A1-116-101-501 :

l Advanced Control Algorithms: Ensures optimal performance and efficiency.

l User-Friendly Interface: Simplifies programming and monitoring.

l Built-in Safety Features: Includes over-voltage, under-voltage, and over-temperature protection.

l Flexible Communication Options: Supports various communication protocols for seamless integration into existing systems.

l Energy Efficiency: Designed to minimize energy consumption while maximizing output.

Applications:

The Siemens A1-116-101-501 is ideal for a wide range of applications, including:

A. Conveyor Systems: Provides smooth acceleration and deceleration.

B. Pumps and Fans: Ensures consistent operation under varying load conditions.

C. Extruders and Mixers: Delivers precise speed control for optimal product quality.

D. Textile Machinery: Enhances performance in fabric processing and handling.

Installation:

A. Site Preparation: Ensure the installation area is clean and free of obstructions.

B. Mounting the Drive: Securely mount the drive to a stable surface using appropriate hardware.

C. Electrical Connections: Connect the input power supply and output connections as per the wiring diagram provided in the manual.

D. Configuration Setup: The user interface configures parameters based on application requirements.

E. Testing: Conduct a thorough test to verify the functionality before the entire operation.

Related Part Numbers of Siemens A1-116-101-501:

l Siemens 6RA24

l Siemens 6SE7014

l Siemens 6SE7016

For the previous part, please refer to the link: SIEMENS A1-106-100-531
