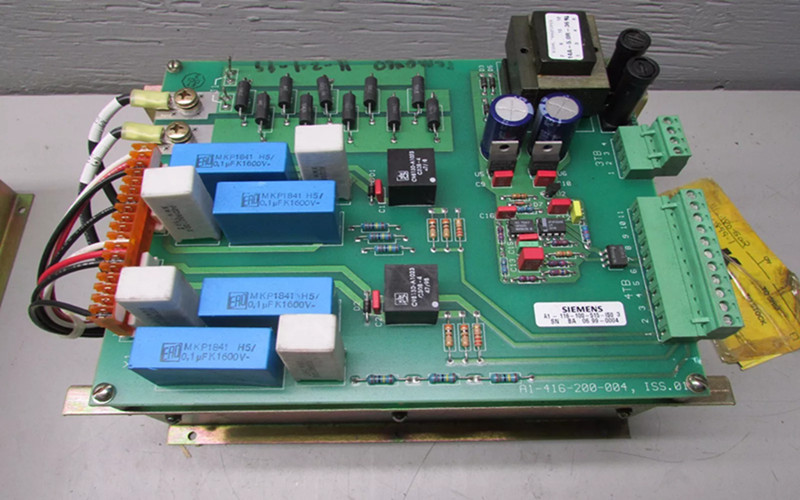

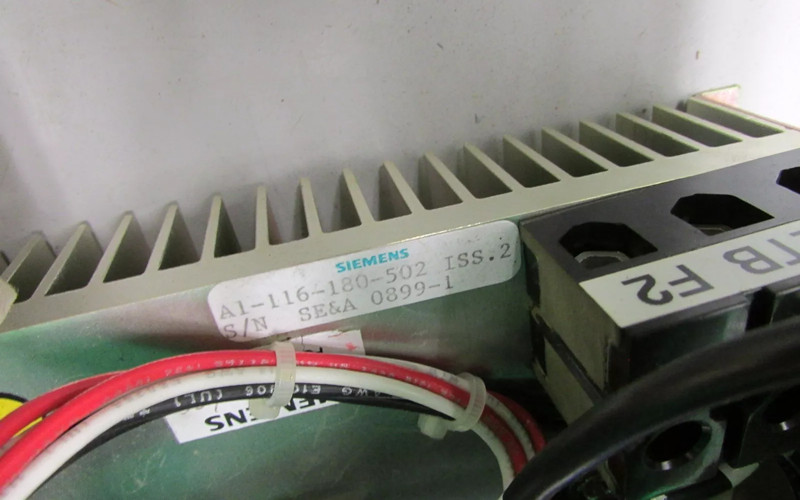

Siemens A1-116-180-502 DC Drive

General Description of Siemens A1-116-180-502:

The Siemens A1-116-180-502 is a high-performance DC drive engineered explicitly for industrial applications requiring reliable speed and torque control. This drive is part of Siemens' renowned Simoreg series, which is known for its durability and precision in managing various motor types.

Technical Specifications:

l Input Voltage: 380-480V AC

l Output Voltage: Adjustable up to 500V DC

l Power Rating: Up to 180 HP

l Control Type: Closed-loop vector control

l Dimensions: Compact design for easy installation

l Weight: Approximately 30 kg

l Cooling Method: Forced air cooling

Detailed Features of Siemens A1-116-180-502:

1. Precision Control Algorithms: Ensures optimal motor performance and energy efficiency.

2. Intuitive User Interface: Facilitates easy programming and monitoring of drive parameters.

3. Comprehensive Safety Mechanisms: Includes over-current, over-voltage, and thermal protection features.

4. Versatile Communication Protocols: These are compatible with multiple communication interfaces for seamless integration into existing systems.

5. Energy-Saving Design: Reduces operational costs by minimizing energy consumption.

Applications:

The Siemens A1-116-180-502 is versatile and suitable for various applications, including:

A. Conveyor Systems: Provides smooth and accurate speed control for material handling.

B. Pumps and Compressors: Maintains consistent performance under fluctuating load conditions.

C. Textile Machinery: Enhances precision in fabric processing and production lines.

D. Extruders and Mixers: Delivers reliable torque control for high-quality product output.

Installation:

l Preparation of Installation Site: Ensure the area is clean and unobstructed.

l Mounting the Drive: Securely attach the drive to a stable surface using appropriate mounting hardware.

l Electrical Connections: Follow the wiring diagram to connect input power and motor output.

l Configuration Setup: Utilize the user interface for parameter configuration based on specific application needs.

l Testing Procedures: Conduct comprehensive testing to ensure all functions operate correctly before commencing full-scale operations.

Related Part Numbers of Siemens A1-116-180-502 :

l Siemens 6RA24

l Siemens 6SE7014

l Siemens 6SE7016

For the previous part, please refer to the link: Siemens A1-116-101-501
