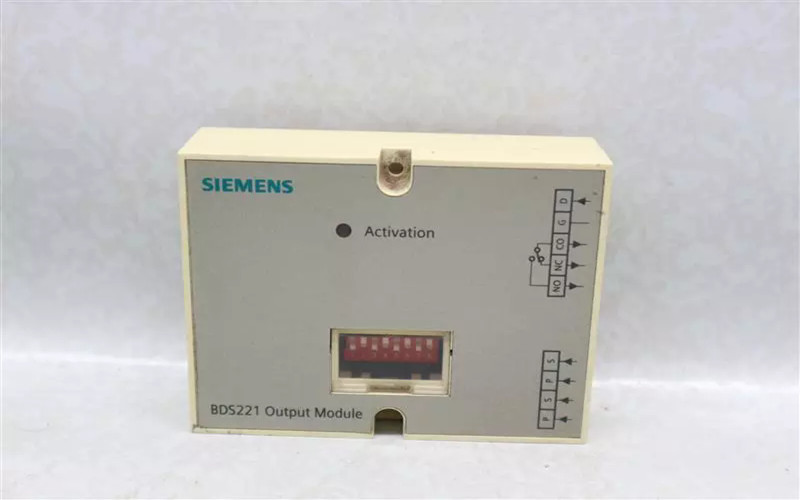

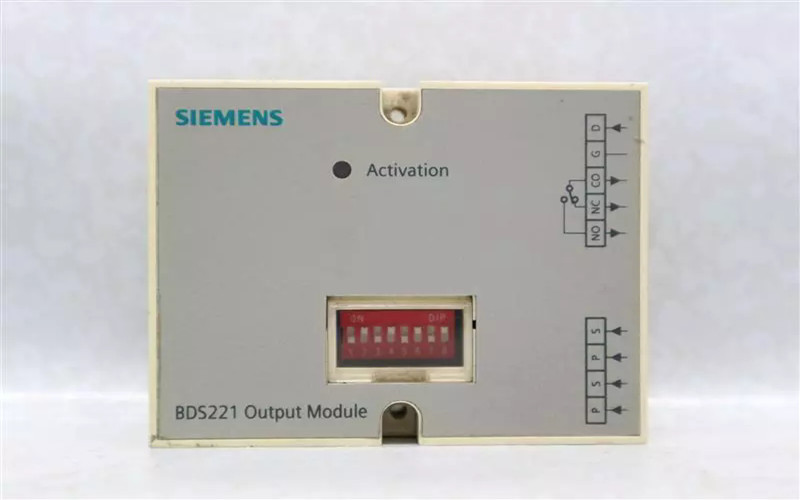

Siemens BDS221A Input/Output Module

General Description:

The Siemens BDS221A is an input/output module designed for use in BC80 intelligent series fire alarm linkage systems. It inputs signals from fire safety devices such as water flow indicators and pressure switches and controls their operation based on pre-set logic. The module is designed for reliable performance in fire safety monitoring and control.

Technical Specifications of Siemens BDS221A :

l Operating Voltage: 24VDC

l Monitoring Current: ≤1mA

l Action Current: ≤3mA

l Operating Temperature: -10...+50°C

l Relative Humidity: ≤95% (40±2°C)

l Relay Contact Load: AC125V/0.6A, DC24V/2A

Detailed Features of Siemens BDS221A:

The BDS221A module can input and output functions, allowing it to receive signals from fire safety devices and control the operation of other devices. It features easy address coding via switches, which facilitates installation and configuration. The module also has a relay output that can handle AC and DC loads, making it suitable for various fire safety applications.

Applications:

The BDS221A is primarily used in fire alarm systems to monitor and control fire safety devices. It can also be used in commercial buildings, industrial facilities, and any other place where fire safety is a priority.

Installation of Siemens BDS221A :

The BDS221A module is installed by connecting it to the controller’s bus lines P and S, which are polarity-free. The module should be fixed in position using appropriate screws, and the wiring should be done according to the engineering requirements. If waterproof requirements or wiring cannot be exposed, the module can be installed in an S6 waterproof plastic box.

Related Part Numbers of Siemens BDS221A :

l BDS221B – Variant with additional input channels

l BDS222A – Model with enhanced features and higher input capacity

l BDS220A – Compact version for space-sensitive applications

For the previous part, please refer to the link: Siemens BDS331
