Siemens DO1101A-Ex Smoke Detector with DB1101A

The Siemens Cerberus DO1101A and Siemens DO1101A-Ex Smoke Detectors are part of the Cerberus series. Engineers design them for early detection of smoldering fires in dangerous environments.

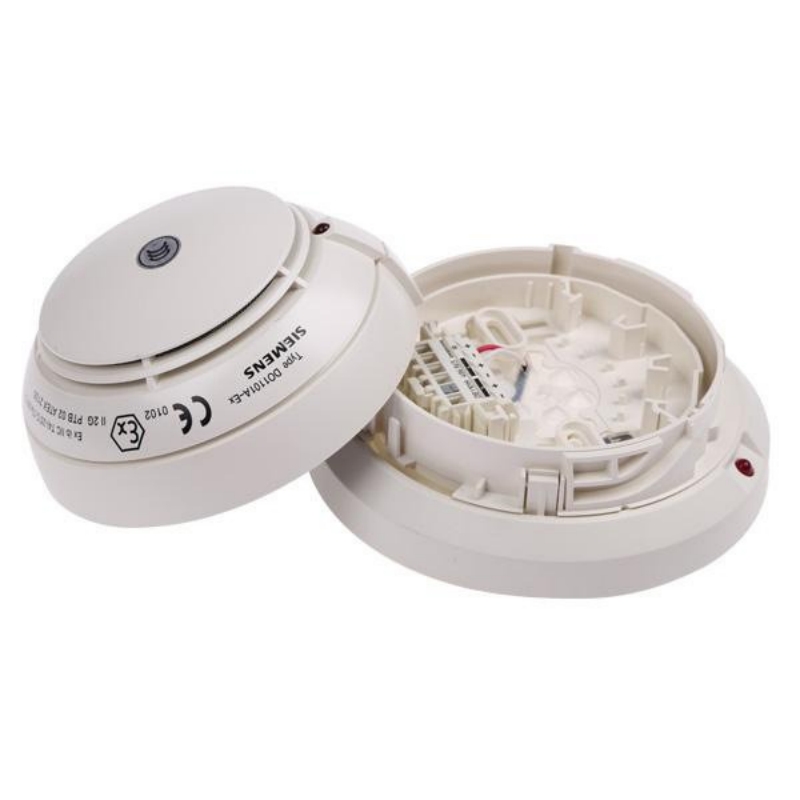

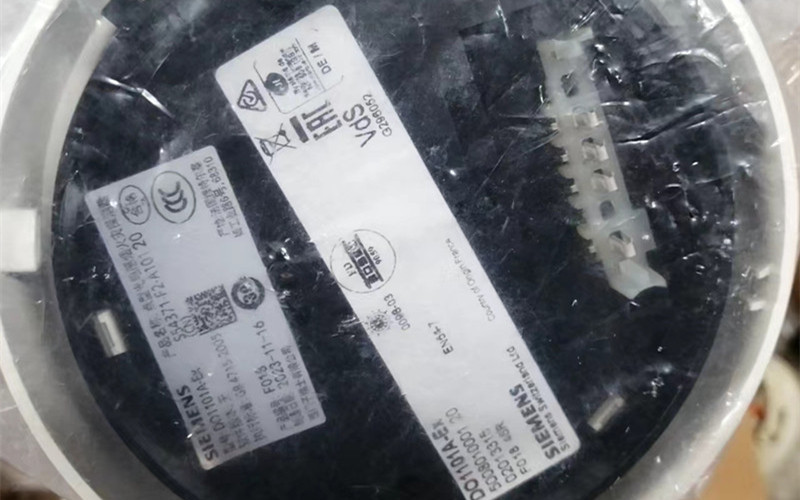

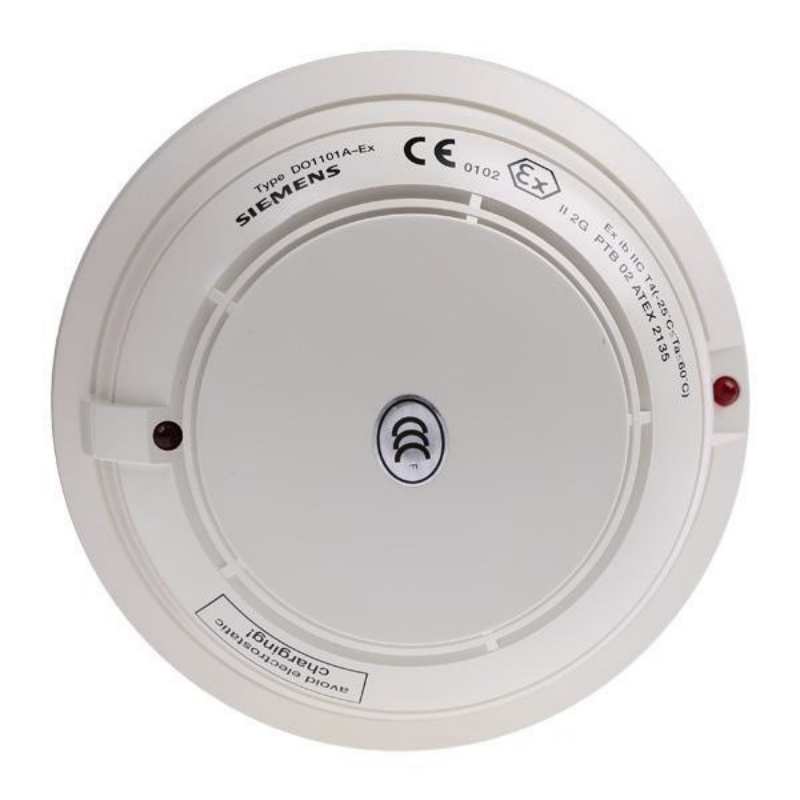

The DO1101A-Ex version is an explosion-proof photoelectric smoke detector. People usually use it with the DB1101A base. This setup works well in areas with explosion risks, like gas zones 0, 1, and 2.

Also referred to as DO-1101A-EX Cerberus, this detector combines Siemens’ precision sensing technology with robust industrial safety standards.

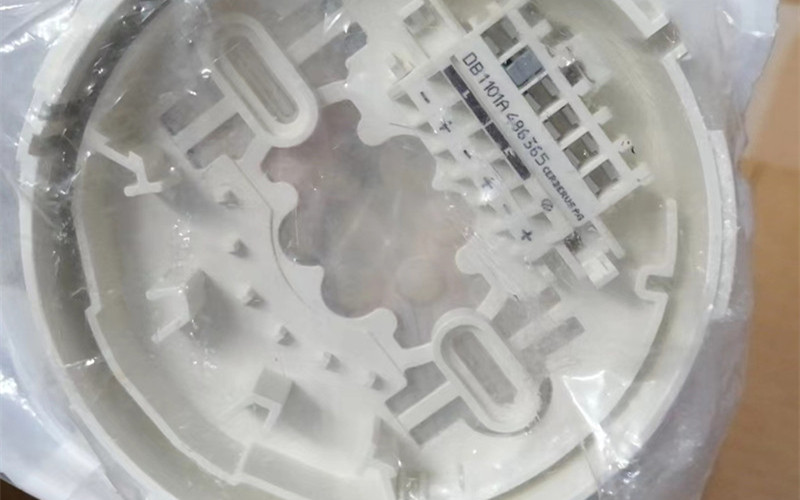

For explosion-proof installations, the unit works with the do-1101a-ex ceberus mounting base. This base provides stability and compatibility in tough environments.

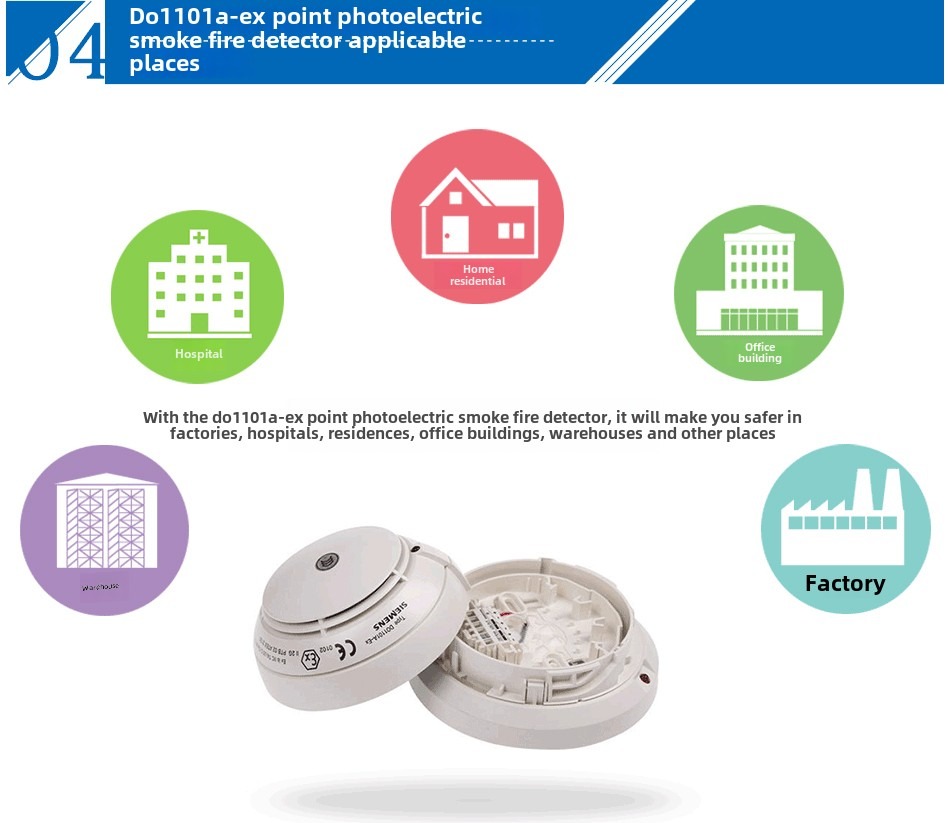

1. Application Scenarios

Firefighters mainly use the Siemens DO1101A-Ex and Cerberus DO1101A detectors for fire detection. They work in explosion-proof zones (Zones 1 and 2) in industrial and commercial buildings.

These devices are good for dangerous areas that need safe smoke detection. You can use them in both addressable and non-addressable fire detection systems.

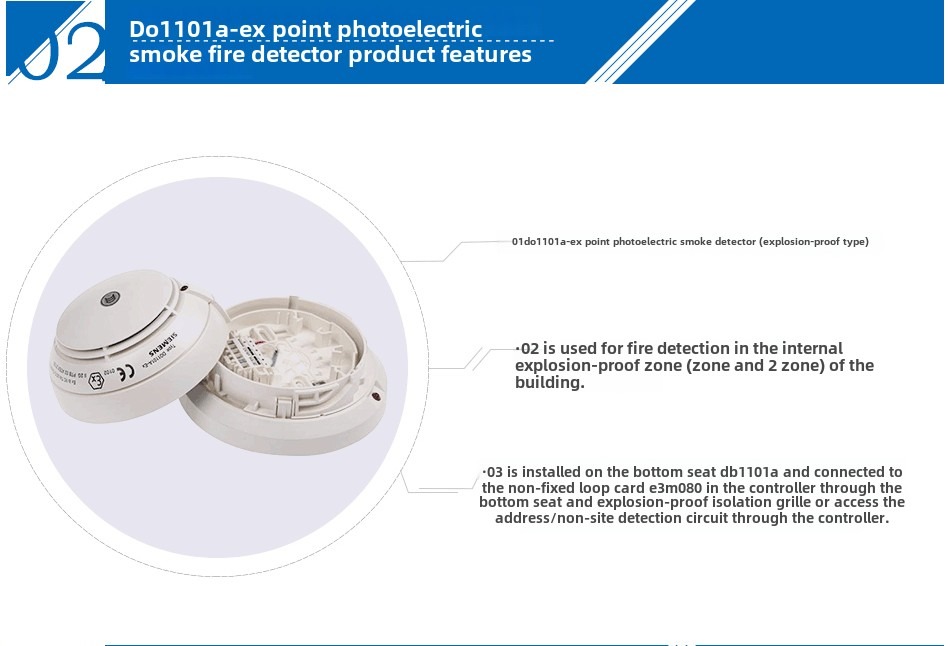

The detector attaches firmly to the DB1101A base. It connects to the controller’s non-addressable loop card E3M080. The base and explosion-proof isolation grid create this connection. Alternatively, it can connect through a dedicated input/output module into the detection circuit.

2. Technical Specifications

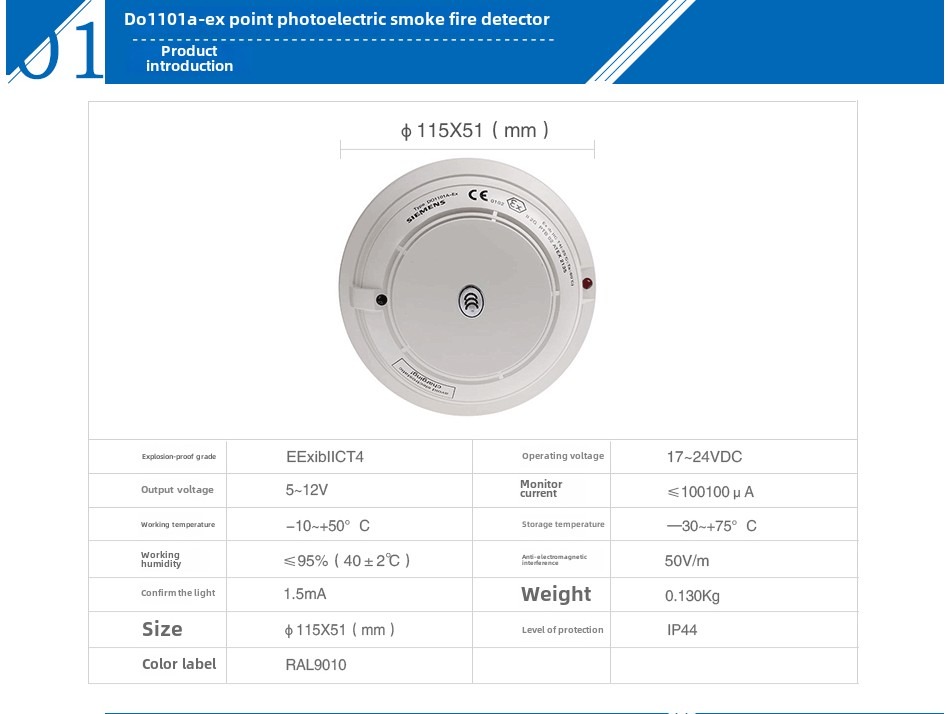

l Model: Siemens Cerberus DO1101A / DO1101A-Ex

l Explosion Protection Rating: EEx ib IIC T4

l Operating Voltage: 17–24 VDC

l Output Voltage: 5–12 V

l Monitoring Current: ≤100 mA

l Operating Temperature: -10 to +50°C

l Storage Temperature: -30 to +75°C

l Working Humidity: ≤95% (at 40±2°C)

l Electromagnetic Interference Resistance: 50V/m

l Confirmation Light Current: 1.5 mA

l Protection Level: IP44

l Color Code: RAL 9010

l Weight: 0.130 kg

l Dimensions: Ø115 × 51 mm

3. Installation and Maintenance

l Mounting: The DO1101A-Ex smoke detector is easy to install with the automatic fire detectors dt1101a-ex base. This base ensures a secure fit, even in areas with vibrations or other challenges.

l Wiring: The mounting with detector base db1101a connects to the control unit via a two-wire system.

l You can connect optional anti-theft devices and external alarm indicators.

l Explosion Protection: Designed for intrinsic safety (Ex I) per EN50014 (IEC60079-0) and EN50020 (IEC60079-11) standards.

4. Compatibility

l Compatible with SynoLINE600, AnalogPLUS/SynoLOOP, and interactive fire detection systems.

l Works with DC1192 input/output module and SB3 shunt Zener diode barrier.

l For FDnet/C-NET systems, compatible with the FDCIO223 transponder and SB3 shunt Zener diode barrier.

5. Maintenance

l Detectors can be replaced or serviced using a detector exchanger up to 7 meters high.

l Factory overhaul services include cleaning and recalibration to extend detector lifespan.

6. Environmental Impact

The manufacturer constructs the Cerberus DO1101A and DO1101A-Ex smoke detectors from safe, halogen-free materials. You can easily take apart and recycle these materials. Components are identifiable via embossed material codes.
