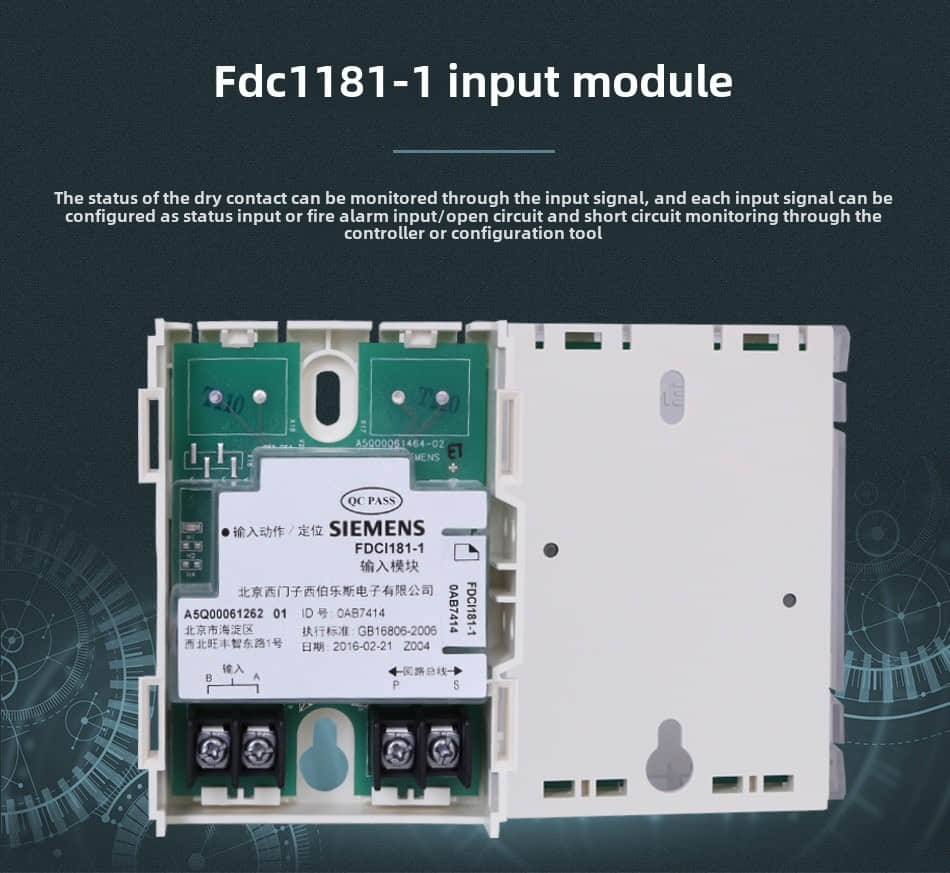

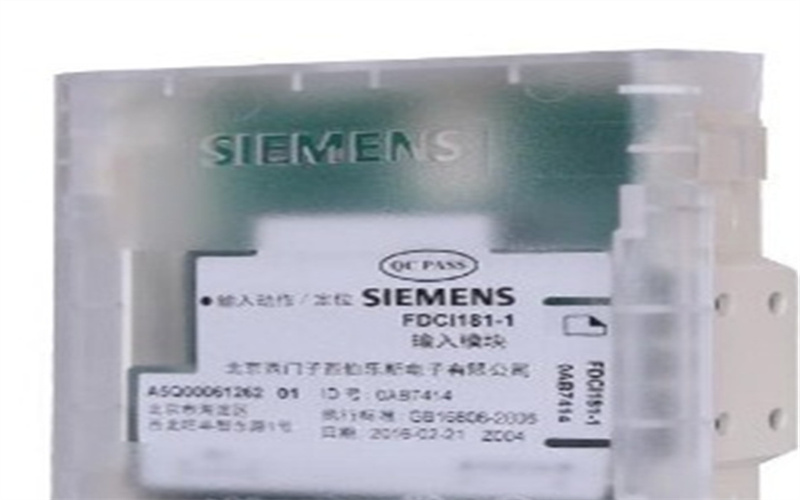

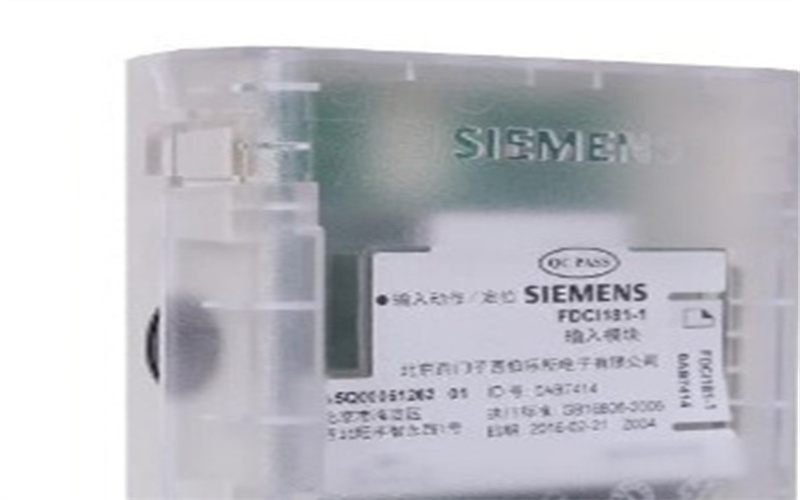

Siemens FDCI181-1 Input Module

1.General Description

The Siemens FDCI181-1 Input Module, also called fdci181-1 siemens, is a dual-channel input module. They designed it for the Cerberus ECO fire detection system. It enables reliable integration of various fire detection and monitoring devices, ensuring efficient communication and coordination across the fire safety network.

The FDCI181-1 module supports multiple input configurations, offering flexibility for integration in commercial, industrial, and public safety applications. An essential component of Siemens’ advanced Cerberus product line delivers stable performance, precise monitoring, and easy installation.

Siemens also offers related models like the FDCIO181-1 input/output module. This module provides both input and output functions. It helps improve system control and versatility in Cerberus ECO installations.

2.Technical Specifications

SpecificationValueModelFDCI181-1TypeDual-channel Input ModuleVoltage Range20 – 30 VDCPower Consumption100 mA (max)Number of Inputs2Communication ProtocolFD18-BUSOperating Temperature-10°C to +55°CStorage Temperature-20°C to +70°CProtection CategoryIP30

3.Detailed Features

A. Dual-Channel Design:

The fdci181-1 Siemens module has two monitored input channels. This allows for flexible setup of connected devices like smoke detectors, heat sensors, or manual call points.

B. Monitoring Capabilities:

Technicians always check each input channel for open circuits, short circuits, or other problems. This ensures high reliability and quick fault reporting in the fire safety system.

C. Easy Installation:

Using Siemens' "Sticker method," the Siemens FDCI181-1 allows for quick and easy installation. No need for complex wiring or special tools.

D. Compatibility:

The FDCI181-1 works well with the Cerberus ECO fire detection system. It connects easily with other Siemens fire safety modules. This includes the FDCIO181-1 input/output module for systems that need both input and output functions.

E. Robust Construction:

Engineers make the Siemens FDCI181-1 Input Module with strong materials. It can handle different environmental factors. This ensures it performs well and stays stable, even in tough conditions.

4.Applications of Siemens FDCI181-1

The fdci181-1 siemens module is highly adaptable and suitable for numerous fire detection applications, including:

l Commercial Buildings:

l Connects smoke detectors, manual call points, and alarm devices. This improves fire response in offices, retail centers, and corporate facilities.

l Industrial Facilities:

l Interfaces with detection devices in hazardous or high-risk environments, such as manufacturing plants or storage warehouses, to ensure early warning and reliable monitoring.

l Public Spaces:

l Ideal for schools, hospitals, airports, and transport hubs, offering comprehensive coverage and real-time fault supervision.

l Residential Complexes:

l Enhances fire protection in apartment buildings and housing developments, providing early warning and system reliability.

5.Installation of Siemens FDCI181-1

Installation of the Siemens FDCI181-1 Input Module is straightforward and efficient.

The team installs the unit in the Cerberus ECO framework. They use Siemens’ “Sticker method” to label and organize each device. This method simplifies system commissioning, minimizes wiring complexity, and reduces installation time.

After you install the system, it connects using the FD18-BUS protocol. This ensures easy integration and real-time data sharing.

6.Related Part Numbers of Siemens FDCI181-1

The fdci181-1 Siemens module is part of the Cerberus ECO family. It works well with other Siemens devices, including:

l FDCI181-2 Input Module: An updated variant offering expanded input capabilities.

l FDCIO181-1 Input/Output Module: Combines input and output functions, providing greater flexibility in fire safety configurations.

l FDCL181 Line Separator: Ensures system integrity and simplifies loop management.
