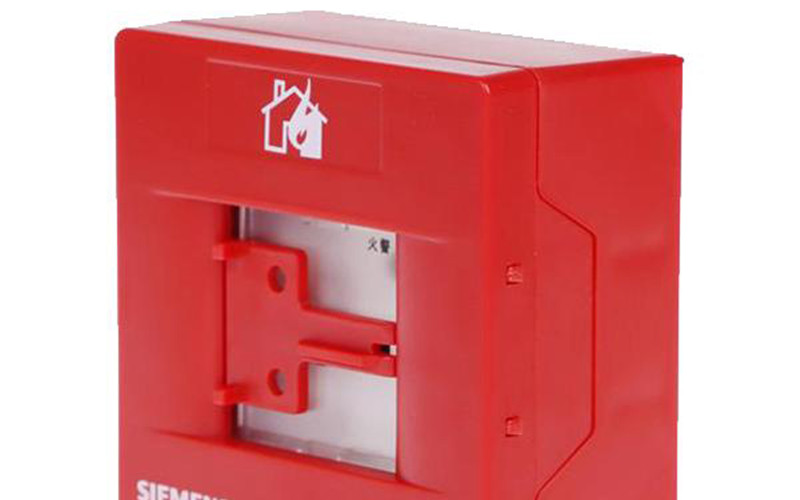

Siemens FDM228 Fire Door Monitoring Device
1. General Description
People also refer to the Siemens FDM228-CN Manual Fire Alarm Button as the Siemens FDM228 Fire Door Monitoring Device. A genuine Siemens product exists. This device allows users to manually activate fire alarms and monitor fire doors. It works in integrated fire safety systems.
The Siemens FDM228-CN combines a manual fire alarm button and a door monitoring module. It uses smart technology with a built-in CPU and a short-circuit isolator. It supports soft addressing mode for simple configuration within Siemens’ fire detection networks.

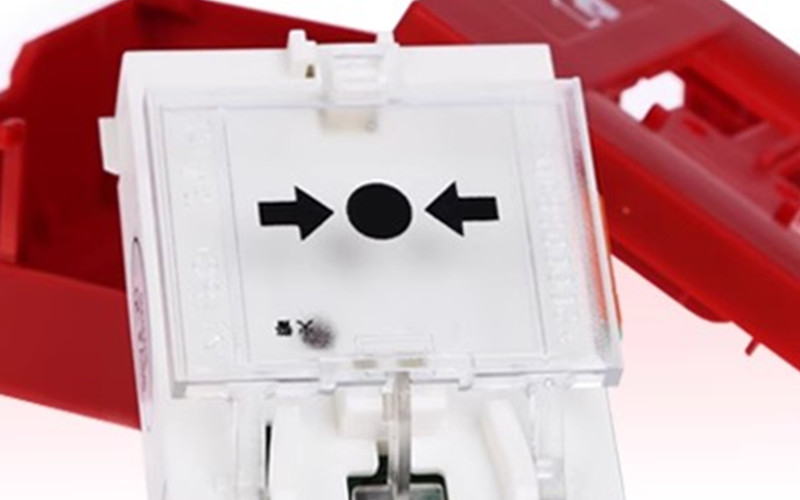

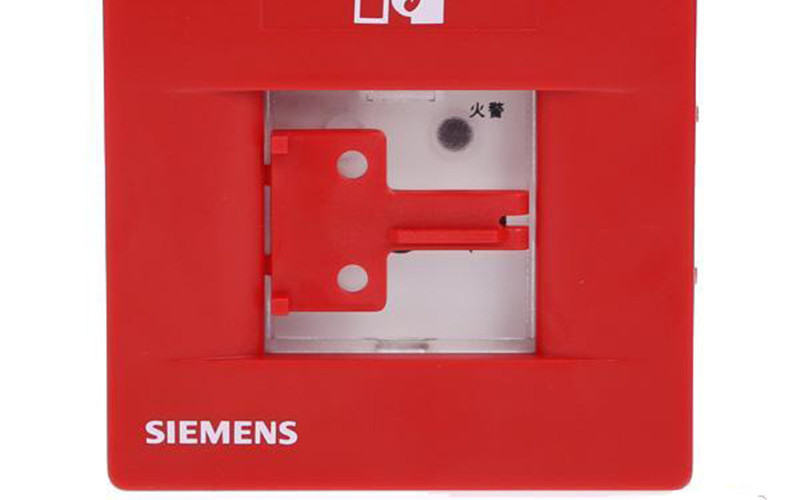

Using the device is easy. Pressing the cover will trigger the alarm. You can reset the unit easily with a key.
This dual-purpose design makes the FDM228-CN good for manual alarm activation and fire door status monitoring. This improves safety and reliability in all types of buildings.
2. Technical Specifications of Siemens FDM228 / FDM228-CN
l Manufacturer: Siemens
l Model: FDM228 / FDM228-CN
l Type: Fire Door Monitoring Device / Manual Fire Alarm Button
l Input Voltage: 12 V DC / 24 V DC
l Power Consumption: 1.8 W
l Communication Protocol: RS-485
l Dimensions: 88 mm × 70 mm × 30 mm
l Operating Temperature: –10°C to +55°C
l Humidity: 10% to 95% non-condensing
l Mounting Type: Wall-mounted
l Certification: EN 54 compliant
l Weight: 140 grams
3. Detailed Features of Siemens FDM228-CN Manual Fire Alarm Button
1. Accurate Fire Door Monitoring
The Siemens FDM228 and FDM228-CN continuously monitor fire doors. They give real-time data on whether a door is open, closed, or partially open. This ensures full compliance with fire safety standards and helps prevent the spread of smoke or flames during an emergency.
2. Manual Fire Alarm Activation
The Siemens FDM228-CN Manual Fire Alarm Button lets people trigger an alarm manually. This is useful in case of fire or smoke. This manual activation feature improves emergency response times and ensures that occupants can alert others immediately in critical situations.
3. Seamless Integration with Fire Safety Systems
The Siemens Genuine FDM228-CN device works well with Siemens’ fire alarm systems. It allows for centralized monitoring and coordination with fire suppression or hydrant systems. This helps ensure complete safety management for buildings.
4. Compact and Durable Design
The FDM228-CN fire hydrant button has a strong and compact design. Perfect for indoor and semi-industrial use. Its durable materials provide long-lasting performance under demanding conditions.
5. Easy Setup and Configuration
Installation is straightforward. The FDM228 supports soft addressing, eliminating manual DIP switch settings and allowing technicians to configure the unit quickly. The simple reset key mechanism ensures easy maintenance after each activation.
4. Applications of Siemens FDM228 / FDM228-CN
The Siemens FDM228-CN is suitable for various fire protection applications, including:
A. Commercial Buildings:
Used as a manual fire alarm button or door monitor in offices, shopping centers, and public areas. This helps ensure fire safety compliance.
B. Industrial Facilities:
Provides fire door monitoring and manual alarm activation in production areas, warehouses, and heavy-duty environments.
C. Healthcare Institutions:
Ensures safe evacuation by allowing manual alarm triggering and monitoring of fire door closures in hospitals and clinics.
D. Educational Facilities:
Monitors fire door status and offers manual fire alarm functionality in schools, universities, and research centers.
5. Installation of siemens fdm228-cn fire hydrant button

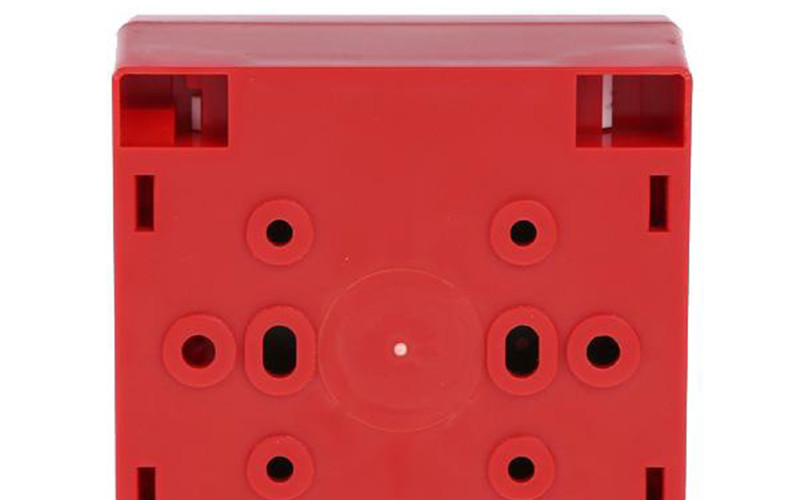

Mounting: Securely wall-mount the FDM228 or FDM228-CN using standard brackets at an accessible location.
Wiring: Connect the device to a 12 V DC or 24 V DC power supply. Also, connect it to the fire alarm network using RS-485 communication.
Configuration: Use the fire alarm control panel. Assign a soft address and check the connection in the fire detection network.
Testing: Conduct a complete test to ensure the manual fire alarm button and door monitoring function properly.
Maintenance: Periodically inspect, clean, and test the Siemens FDM228-CN to ensure consistent performance. The reset key allows quick restoration after an activation.
6 . Related Part Numbers of Siemens FDM228 Series
l Siemens FDM229: Enhanced version with extended monitoring functions.
l Siemens FDM230: Advanced model with added visual indicators.
Siemens JTY-GF-FD0181C Smoke Fire Detector
l Siemens FDM245: Ruggedized version for industrial or harsh environments.
