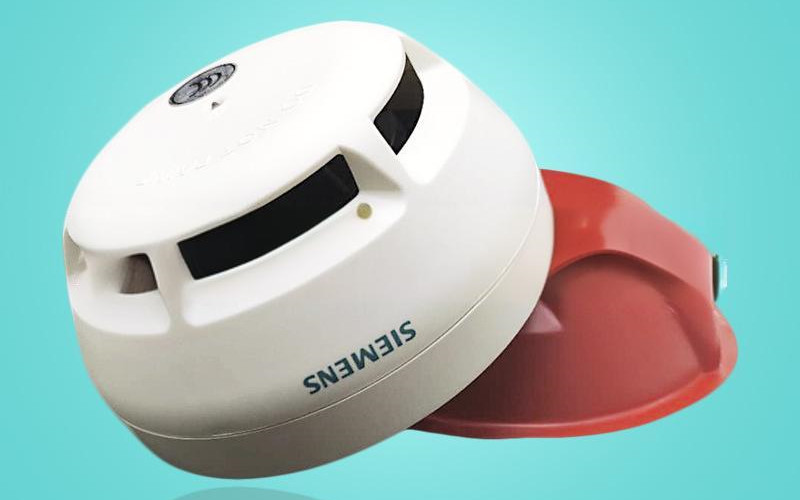

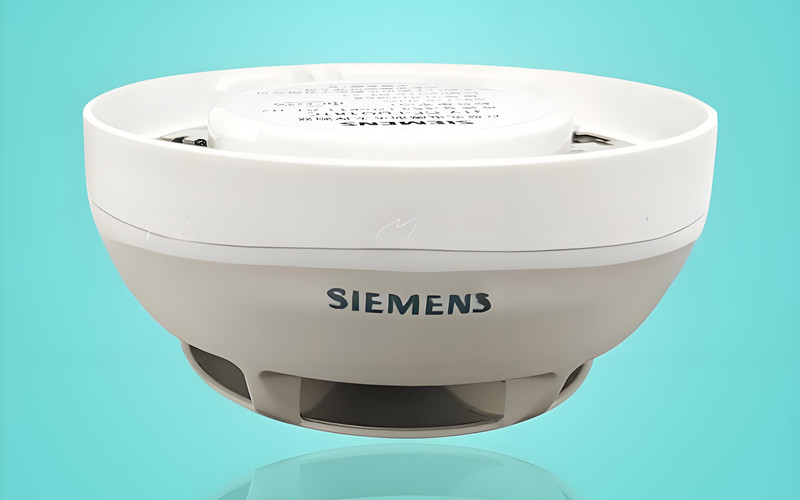

Siemens JTY-GF-FD0181C Point-Type Photoelectric Smoke Detector: Technical Specification,Datasheet

Table of Contents

1. General Description & Operating Principle

2. Key Technical Specifications & Datasheet

3. Recommended Application Scenarios

4. System Compatibility & Controller Integration

5. Installation, Maintenance & Lifecycle Best Practices

6. Environmental Compliance

7. Frequently Asked Questions (FAQ)

8. Conclusion, Procurement Support & Sourcing Options

1. General Description & Operating Principle

The Siemens JTY-GF-FD0181C utilizes an advanced optical sensing chamber and light-scattering detection principle to capture microscopic smoke particles generated during the early stages of a fire.

Driven by an onboard 16-bit CPU, the unit processes raw analog signals through intelligent software algorithms to accurately discriminate true fire signatures from common environmental nuisances. Operating as a non-addressable detector, it eliminates complex rotary address settings and supports polarity-free two-wire connections, streamlining installation across large commercial and industrial sites.

2. Key Technical Specifications & Datasheet Overview

Review these precise electrical, physical, and environmental parameters to verify compatibility with your existing fire control panel loop:

  • Model Identifier: Siemens JTY-GF-FD0181C

  • Sensor Type: Point-Type Photoelectric Smoke Detector (Light Scattering)

  • Processing Architecture: 16-bit Microprocessor with Intelligent Algorithm

  • Operating Voltage Range: 10 to 28 VDC

  • Static / Standby Current: $\le 0.1\text{ mA}$

  • Alarm / Activation Current: $\le 60\text{ mA}$ (continuous)

  • Sensitivity Standard: $2.4\%/\text{m}$

  • Operating Temperature Range: $-10^\circ\text{C}$ to $+50^\circ\text{C}$

  • Storage Temperature Range: $-20^\circ\text{C}$ to $+70^\circ\text{C}$

  • Maximum Relative Humidity: $\le 96\%$ (non-condensing)

  • Housing Color: White (RAL 9010)

  • Ingress Protection Rating: IP40 (per GB4208-93)

  • Compliance Standards: GB4715-2005 "Point-Type Smoke Fire Detectors"

3. Recommended Application Scenarios

Engineered for rapid response in high-risk zones, the JTY-GF-FD0181C is widely deployed across environments requiring strict early-warning metrics:

  • Commercial Complexes: Office towers, shopping malls, and public assembly halls.

  • Industrial Manufacturing: Production floors, assembly plants, and heavy warehouses.

  • Data Centers & IT Infrastructure: Safeguarding server rooms and telecommunication hubs against hidden electrical smoldering.

  • Critical Utilities: Power distribution rooms and auxiliary plant spaces.

4. System Compatibility & Controller Integration

Because the JTY-GF-FD0181C is a non-addressable unit, proper interface modules are required to bridge it with modern intelligent fire alarm control panels (FACP):

  • FC18 Series Integration: Communicates with the Siemens FC18 controller via the FDCI183 repeater module, with each module capable of supporting up to 32 non-addressable detectors.

  • FC720 & FS1120 Series Integration: Compatible with advanced network integration via the FDCIO223-CN repeater module, supporting up to 32 non-addressable detectors per loop interface.

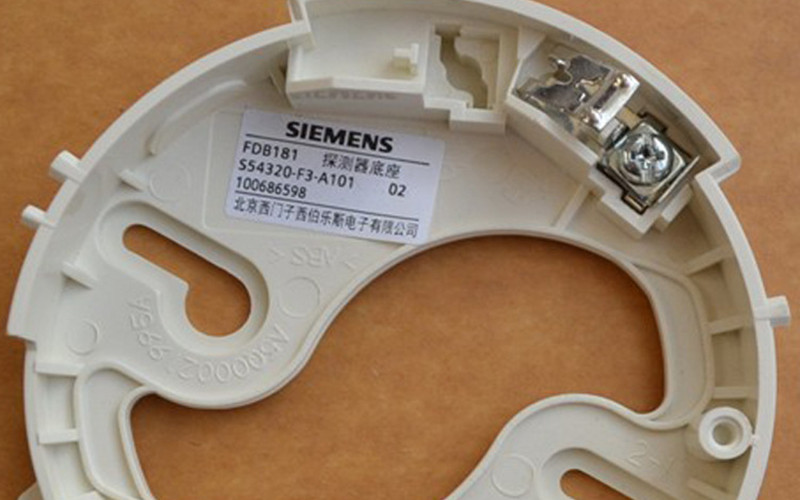

5. Installation, Maintenance & Lifecycle Best Practices

  • Polarity-Free Loop Connection: Connects to the control architecture via standard loop lines without strict polarity requirements, reducing wiring errors during commissioning.

  • Routine Inspection Protocol: Conduct a thorough visual inspection annually; units exhibiting severe environmental contamination or mechanical damage must be replaced immediately.

  • Standby Storage: Uninstalled detectors kept in long-term inventory should remain in their original factory packaging, subjected to functional smoke testing at least once a year.

  • Professional Servicing: All deep-cleaning, sensor calibration, and contact integrity checks must be performed by certified fire safety technicians to maintain system reliability.

6. Environmental Compliance

Siemens incorporates sustainable, eco-conscious engineering principles into the JTY-GF-FD0181C, utilizing recyclable, low-impact materials that meet strict environmental guidelines throughout production, operational lifespan, and final disposal.

7. Frequently Asked Questions (FAQ)

Q1: Is the Siemens JTY-GF-FD0181C an addressable or conventional smoke detector?

A: The JTY-GF-FD0181C is a conventional (non-addressable) photoelectric smoke detector featuring polarity-free two-wire connections. It can be integrated into modern intelligent fire control panels via compatible repeater modules (such as FDCI183 or FDCIO223-CN).

Q2: How many non-addressable detectors can be connected to a Siemens loop interface module?

A: Each compatible Siemens interface module (e.g., FDCI183 for FC18 series or FDCIO223-CN for FC720/FS1120 series) typically supports up to 32 non-addressable detectors per loop.

Q3: Where can I request the official Siemens JTY-GF-FD0181C datasheet, wiring manual, or price quote?

A: You can request complete technical documentation, wiring diagrams, and fast commercial quotations directly by emailing our technical sales engineering desk at [email protected].

8.Conclusion, Procurement Support & Sourcing Options

Deploying verified, high-sensitivity detection devices like the Siemens JTY-GF-FD0181C guarantees regulatory compliance and robust early-stage fire protection. At Xiamen ZYM Automation & Control Co., Ltd. (A Division of Xiamen Zhenyoumei Display Products Co., Ltd.), we supply 100% authentic, factory-sealed Siemens fire alarm system components backed by expert engineering support.

- Engineering Sales Contact: [email protected]

- Visit Online Portal: Reach out via our official website to check inventory or submit an RFQ.

- Guarantees: 100% Original Siemens Equipment | Factory Calibration Documentation | 12-Month Warranty | Fast Global Express Shipping
