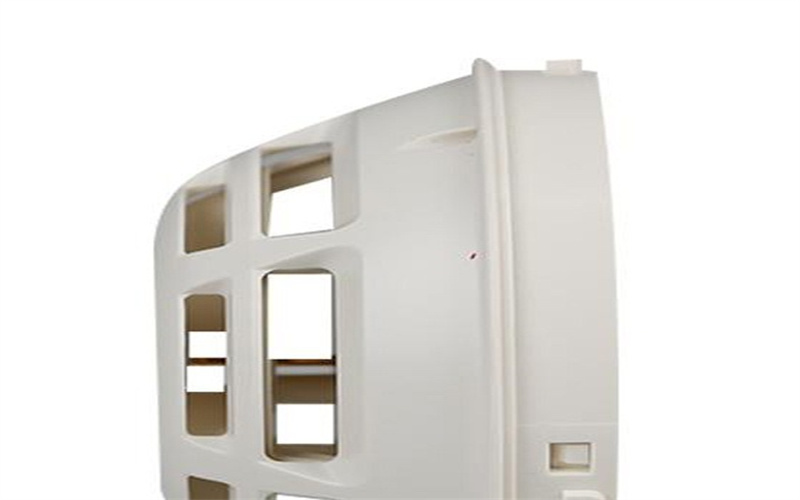

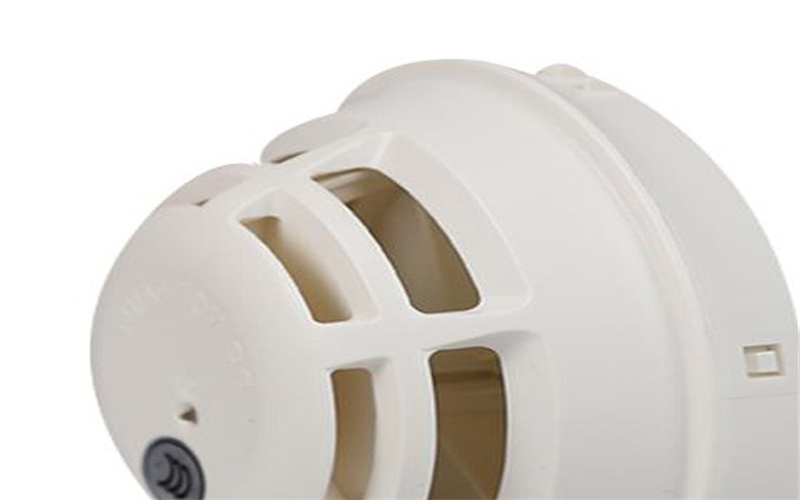

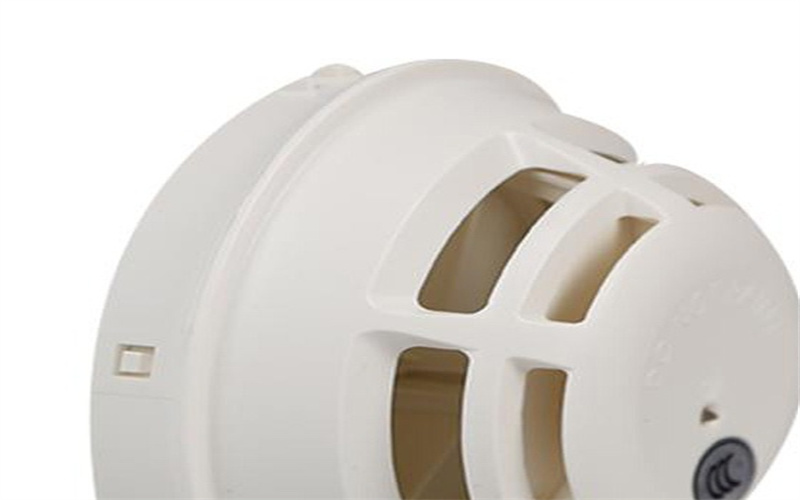

Siemens HI720-CN Heat Detector
The Siemens Hi720 is an advanced heat detector that provides reliable fire detection by monitoring temperature. Engineers designed this heat detector for both static and differential detection. The Cerberus PRO range includes this detector, which is compatible with advanced fire alarm systems.
1.Siemens HI720 - Technical Specifications
Specification Value
Model HI720-CN
Type Heat Detector
Operating Voltage: 20-30 VDC
Maximum Power Consumption: 100 mA
Temperature range -10 to +55 degrees Celsius
Alarm Threshold - Static 57 degC
Alarm Threshold (Differential) 10 °C above ambient
Communication Protocol FD18BUS
Protection Category Ip30
2. Details of the Features
1. Dual functionality: It can detect both static and differential temperature, increasing its effectiveness in different environments.
2. High Sensitivity: This sensor reacts quickly to temperature changes. It gives an early warning of a fire.
3. Construction Robust: Designed to endure harsh conditions and is ideal for commercial and industrial applications.
4. Self-Testing: This feature allows for regular self-tests to ensure reliability.
5. The mounting options are flexible and can be easily adapted to suit different building layouts.
3.Siemens hi720 - cn Applications
You can use the Siemens Hi720-CN heat detector in a variety of environments.
Industrial Facilities: Ideal for plants that may experience high temperatures because of machinery and processes.
Commercial Buildings - This system detects abnormal temperature increases in office spaces, retail stores, and warehouses.
Safety is of paramount importance in public spaces such as schools, hospitals, and transport hubs.
In residential areas, it is helpful to monitor the heat level in garages and kitchens.
Installation
Installation involves mounting the detector on a wall, ceiling, or other surface according to the environment. The FD18BUS communication protocol allows it to connect seamlessly with the Cerberus PRO fire alarm system.
4. Related Part Numbers
Compatible with other components in the Cerberus PRO Series:
HI722 heat detector (static only).
OH620 Multi-sensor Smoke Detector
