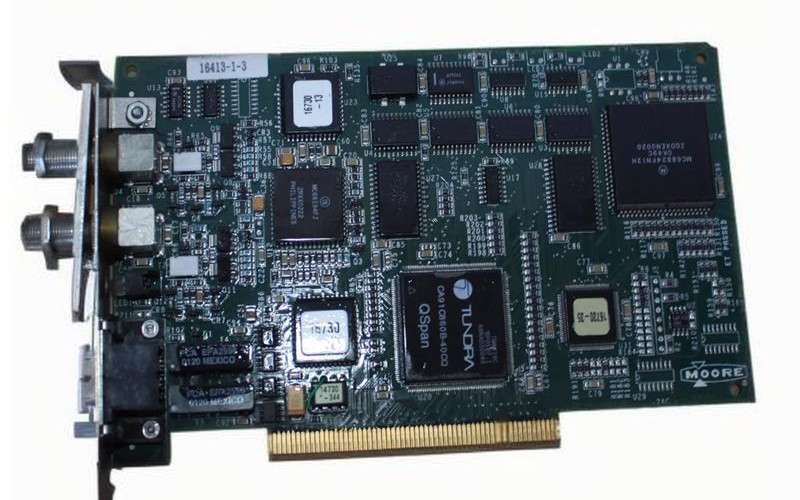

Siemens Moore APACS 16413-1-3 Input/Output Module | Technical Specification & Selection Guide

Manufacturer: Siemens Moore (APACS+ Series) | Model / Part Number: 16413-1-3

Device Type: High-Performance Input/Output (I/O) Module

Status: 100% Original, Brand New & Verified Surplus Available | Global Air Freight

Related Reference: For controller options, please refer to the Siemens Moore 16249-51-4 Controller Guide .

1. General Description & System Context

The Siemens Moore APACS 16413-1-3 I/O module is widely recognized across heavy process industries for its high processing versatility and hardware reliability. Engineered specifically to interface field instrumentation with legacy APACS+ control environments, this module bridges raw process variables with supervisory networks, optimizing loop efficiency and lowering operational risk profiles.

2. Technical Specifications

Review these precise physical, electrical, and environmental parameters to verify compatibility with your existing rack configuration:

• Model Number: APACS 16413-1-3

• Manufacturer / Brand: Siemens Moore (APACS+ Series)

• Module Type: High-Performance Input/Output (I/O) Module

• Input Channels: 16 configurable channels supporting analog and discrete signals

• Supported Signal Types: Analog 4-20 mA, 0-10V, and standard digital/discrete logic levels

• Output Channels: Configurable for multi-signal actuation and control loops

• Communication Protocol: Proprietary APACS+ network communication bus

• Mounting Type: Standard rack-mountable card format

• Nominal Power Supply: 24 VDC

• Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)

• Relative Humidity: 5% to 95% non-condensing

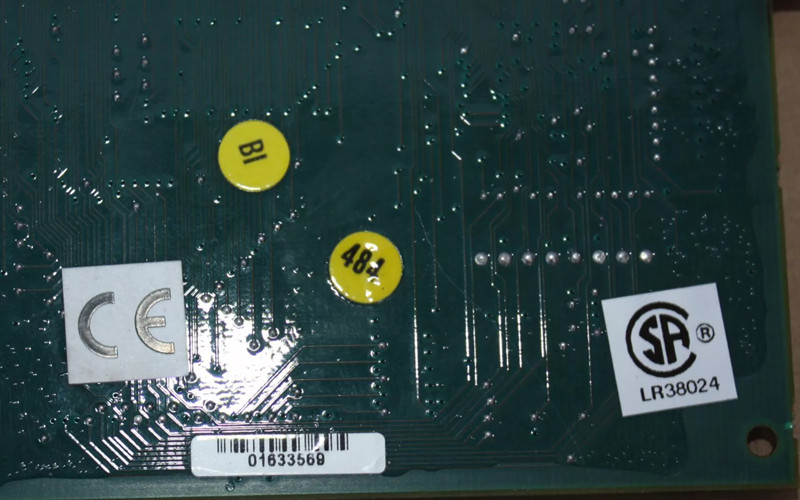

• Regulatory Certifications: CE, UL, and CSA compliant

• Physical Dimensions: 190 mm x 150 mm x 50 mm

• Weight: Approximately 0.75 kg

3. Detailed Architectural Features

• High Flexibility & Mixed-Signal Integration: Supports simultaneous analog and digital signal conditioning, allowing seamless integration into diverse legacy industrial automation architectures.

• Enhanced Environmental Hardening: Built for harsh industrial atmospheres with conformal-coated componentry, ensuring continuous operation under extreme temperature fluctuations.

• Modular Scalability: Features a rack-mounted card design that streamlines hot-swapping, routine maintenance, and system expansion without requiring complex rewiring.

• Advanced On-Board Diagnostics: Incorporates real-time health monitoring and self-test functions to flag channel-level anomalies early, preventing unannounced loop failures.

• Deterministic Process Control: Designed to execute rapid scan rates, ensuring minimal latency across critical analog control loops.

4. Industrial Applications

The Siemens Moore APACS 16413-1-3 module is deployed globally across continuous and batch process sectors requiring high reliability:

• Chemical & Petrochemical Processing: Managing corrosive loop signals and hazardous area instrumentation.

• Oil & Gas Upstream/Downstream: Interfacing remote terminal units and safety shutdown monitoring lines.

• Power Generation Utilities: Handling boiler control instrumentation and balance-of-plant telemetry.

• Water & Wastewater Treatment: Automating filtration, chemical dosing, and flow regulation loops.

• Pharmaceutical & Specialty Manufacturing: Ensuring strict batch repeatability and data integrity.

5. Installation & Replacement Guidelines

• Safety Isolation: Always disable or isolate power to the specific rack slot before installing or removing the 16413-1-3 module to prevent bus errors or electrical spikes.

• Electrostatic Protection: Wear a grounded ESD wrist strap when handling the board to protect sensitive internal microprocessors.

• Rack Seating: Align the module carefully with the backplane guide rails and press firmly until the locking mechanisms engage securely.

• Diagnostic Verification: After powering up the system, check the module’s front-panel LED indicators to verify normal communication and channel status.

6. Related APACS+ Ecosystem Alternatives & Part Numbers

To support legacy system maintenance, retrofits, or complete bill-of-materials (BOM) management, consider these complementary APACS+ hardware options:

• Siemens Moore 16410-1-1: APACS+ Main Control Processor

• Siemens Moore 16414-2-2: High-Density Analog Input/Output Module

• Siemens Moore 16249-51-4: Control Processor Module variant

• Siemens Moore 16338-2-1: Dedicated Digital I/O Module

• Siemens Moore 16425-3-3: System Power Supply Module

• Siemens Moore APACS 39PSMNAN: Power Supply Module

7. Frequently Asked Questions (FAQ)

• Q: Is the Siemens Moore APACS 16413-1-3 compatible with all APACS+ rack systems?

  A: Yes, it is designed as a direct drop-in replacement for standard APACS+ rack mount configurations, provided the system software and firmware match.

• Q: Do you supply tested or factory-sealed legacy APACS modules?

  A: We supply rigorous-tested, verified original-condition hardware to guarantee long-term loop stability for your legacy infrastructure.

• Q: How fast can you ship replacement APACS modules globally?

  A: We maintain ready inventory for critical plant outages and support fast worldwide air freight delivery.

8. Need a Quote or Verified Legacy Stock for Siemens APACS?

Looking for replacement modules, spare processor cards, or technical support for your APACS+ system?

[Request a Fast Quote Today] or contact our technical sales engineers for immediate inventory checks and project fulfillment.

For related equipment and master guides, return to: Siemens PLC Support Center .
