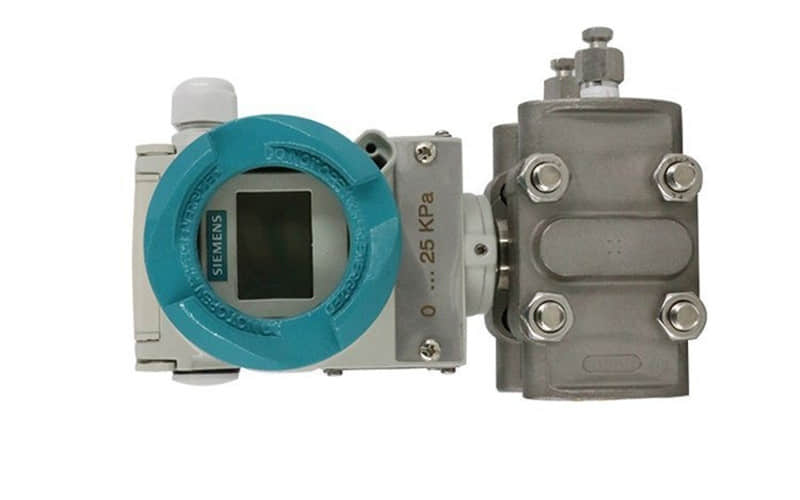

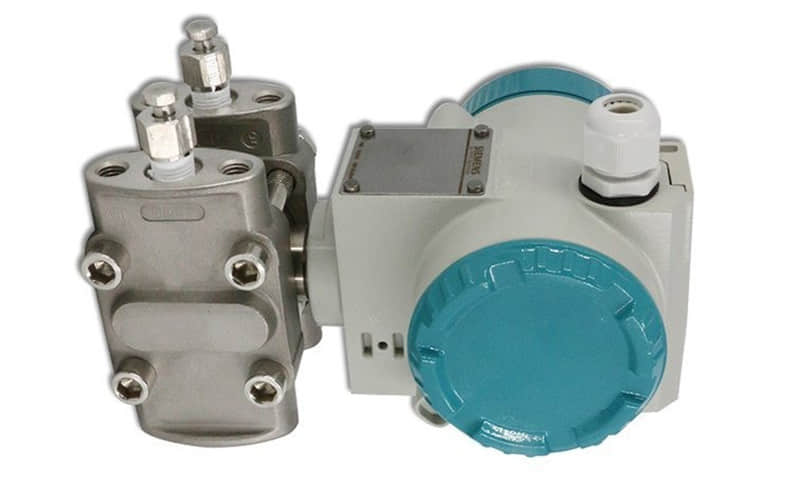

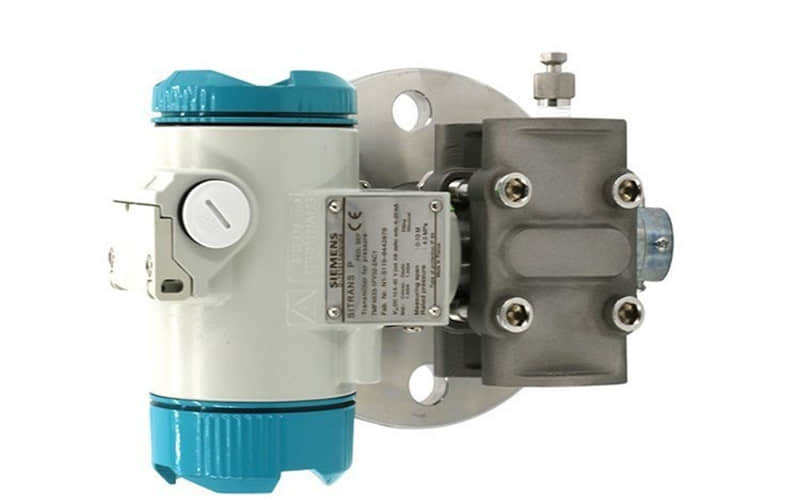

Siemens Pressure Transmitter 7MF030

General Description

The Siemens 7MF030 is a high-performance pressure transmitter for precise measurement in challenging industrial environments. It features a digital design that complies with IEC61508 standards for functional safety (SIL2/3) and supports remote configuration capabilities. This transmitter suits various applications, including level measurement and flow rate monitoring.

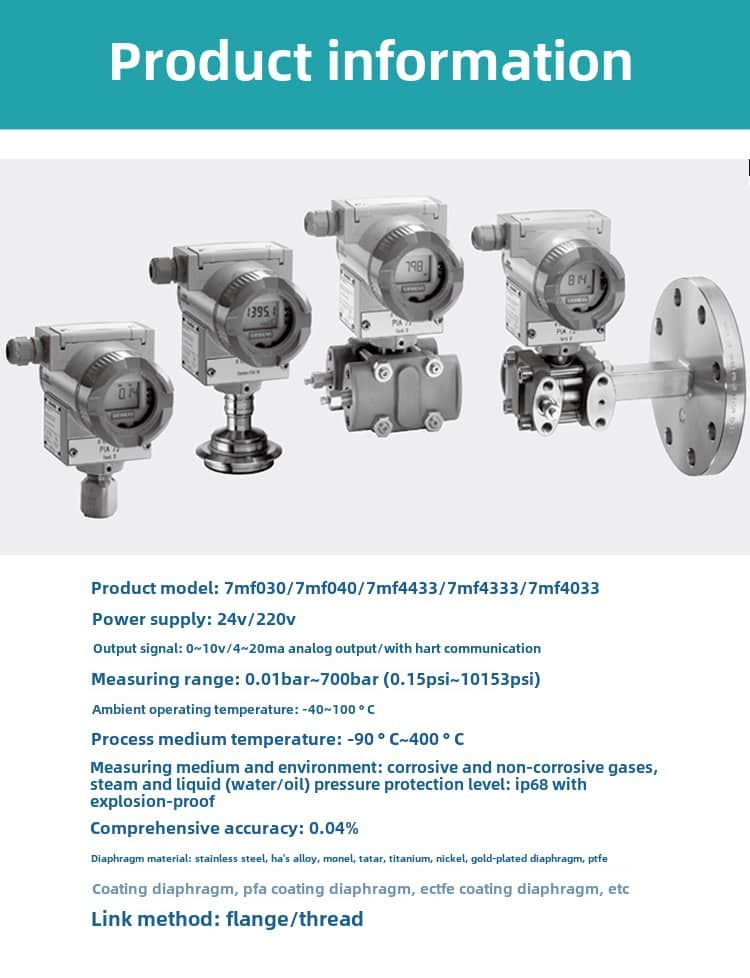

Siemens 7MF030Technical Specifications

l Model: 7MF030

l Measurement Range: Various ranges available based on application needs

l Output Signal: 4 to 20 mA/HART

l Operating Pressure: Up to 6092 psi (PN 420)

l Temperature Range: -40°C to +85°C

l Protection Class: IP67

l Material: Stainless steel housing

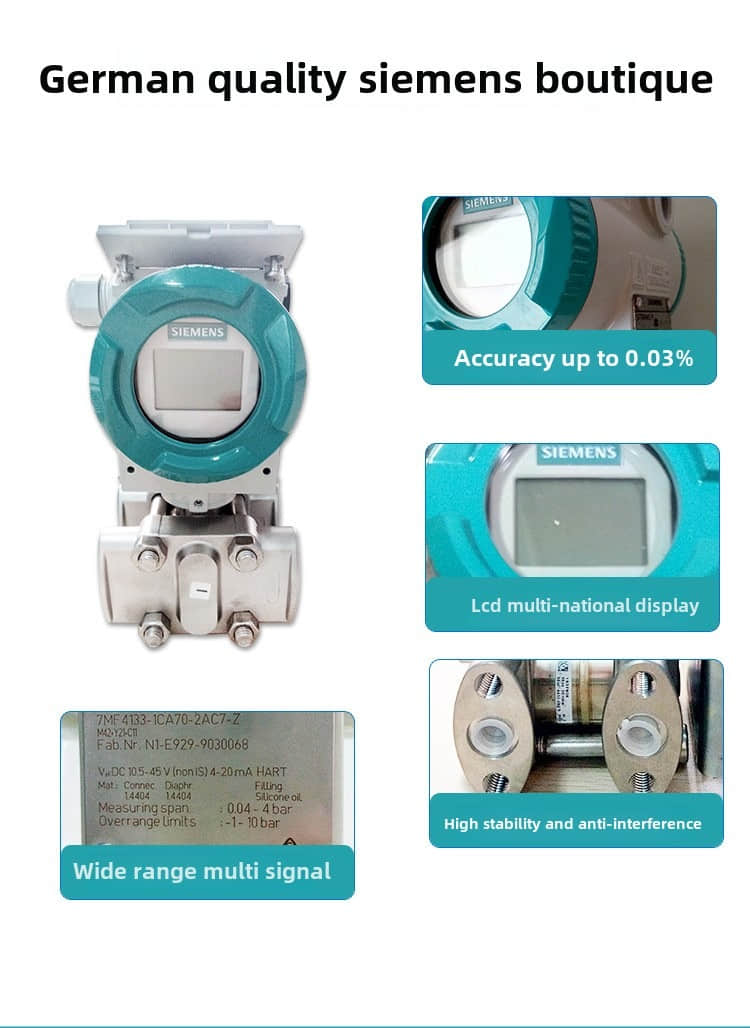

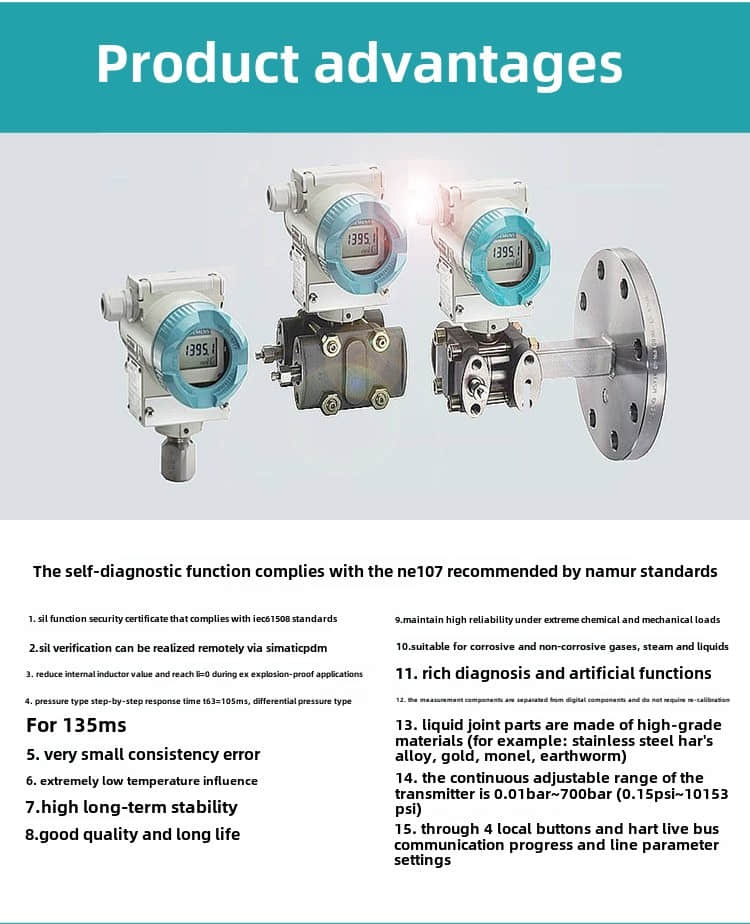

Features

Digital Communication: Supports HART protocol for easy integration with control systems.

Safety Standards Compliance: Meets IEC61508 standards for functional safety.

Versatile Mounting Options: These can be installed in various orientations for flexibility.

Advanced Diagnostics: Provides real-time data and alerts for maintenance needs.

Applications

1. Food and beverage processing

2. Pharmaceutical manufacturing

3. Biotechnology applications

4. Chemical processing industries

Siemens 7MF030 Installation Procedure Step-by-Step

l Preparation:

Ensure the installation site is clean and free from debris.

Gather necessary tools and materials.

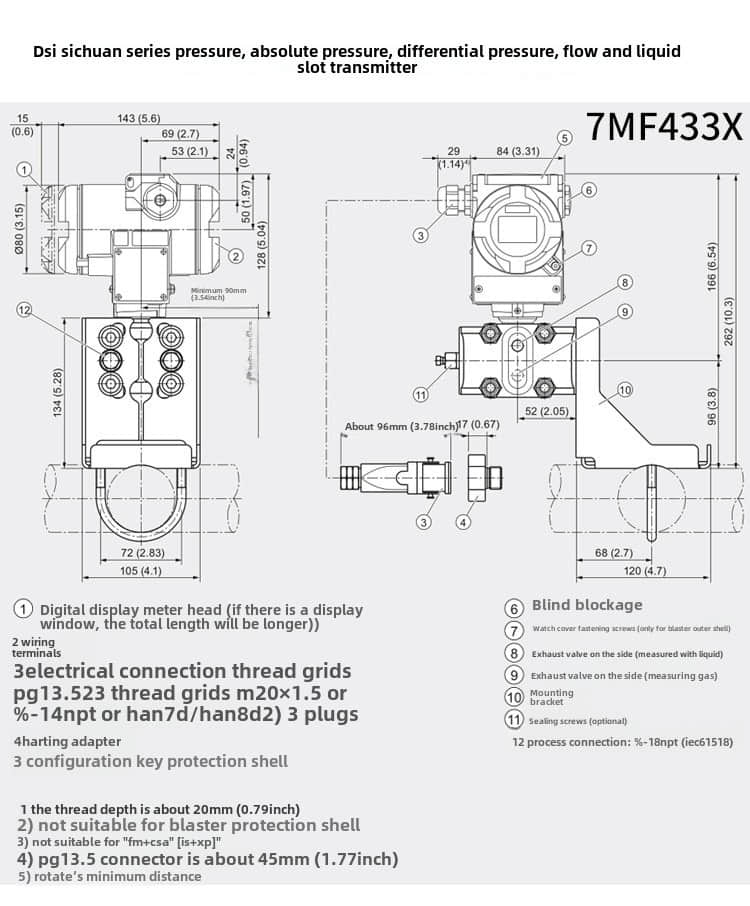

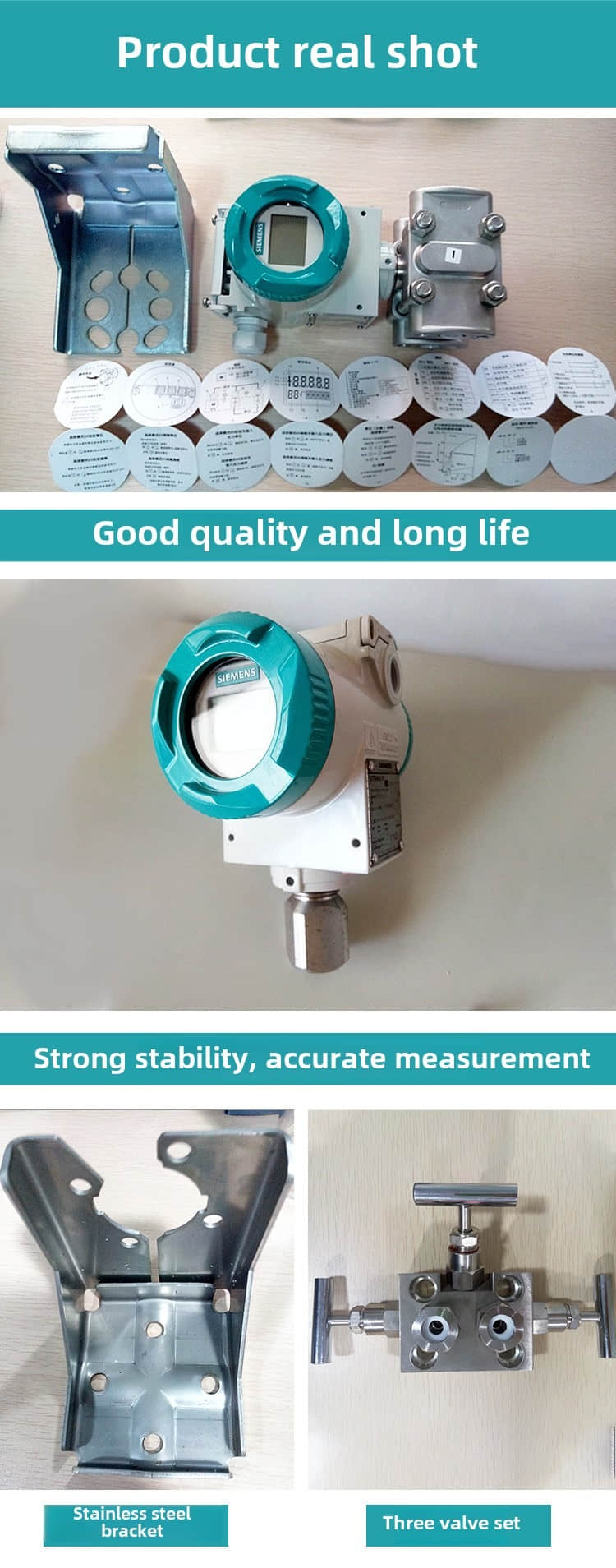

l Mounting the Transmitter:

Select an appropriate location based on the application requirements.

Use mounting brackets to secure the transmitter to a stable surface.

l Connecting the Pressure Lines:

Connect the pressure lines to the appropriate ports on the transmitter.

Ensure all connections are tight to prevent leaks.

l Electrical Connections:

Connect power supply lines according to the wiring diagram provided in the manual.

Ensure correct polarity when connecting power leads.

l Configuration:

Power the device and configure settings using a HART communicator or local interface.

Adjust parameters such as range values according to application needs.

l Testing:

Apply known pressure values to test the accuracy of the transmitter.

Verify output signals using a multimeter or HART communicator.

l Final Checks:

Check all connections for leaks or loose fittings.

Ensure that the device is adequately sealed and protected from environmental factors.

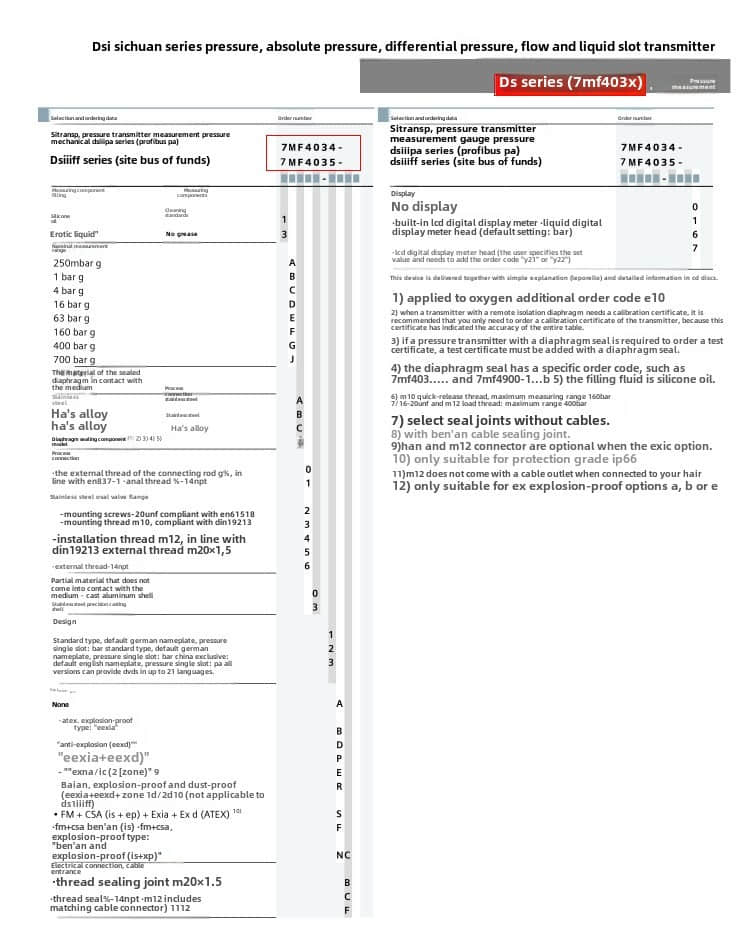

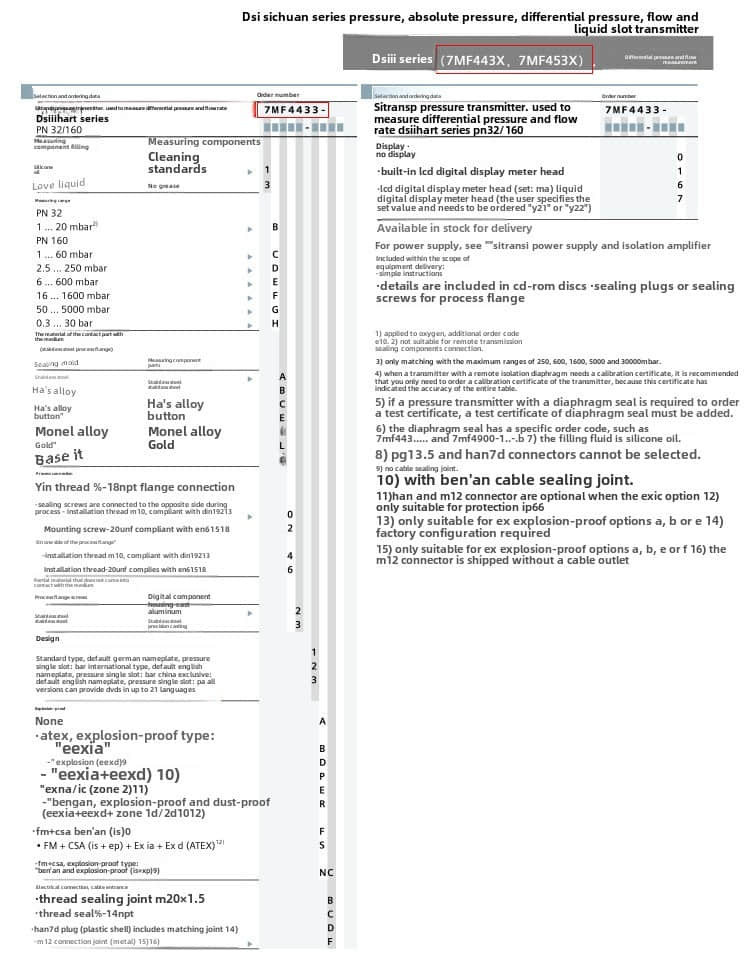

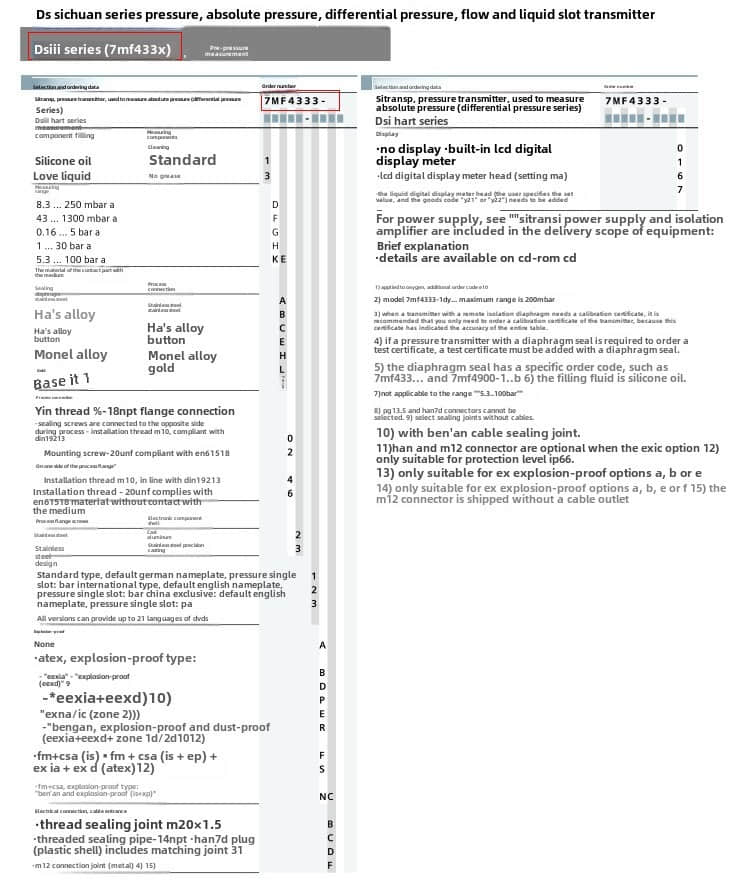

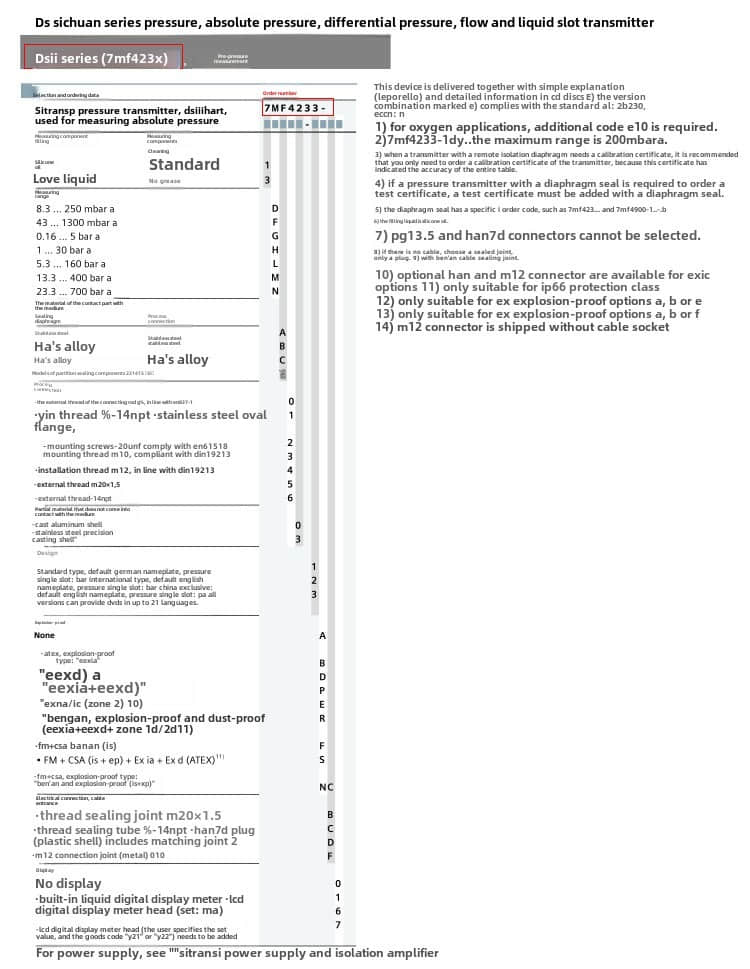

Siemens 7MF030 Related Part Numbers

l SITRANS P320: 7MF0300

l SITRANS P420: 7MF0400
