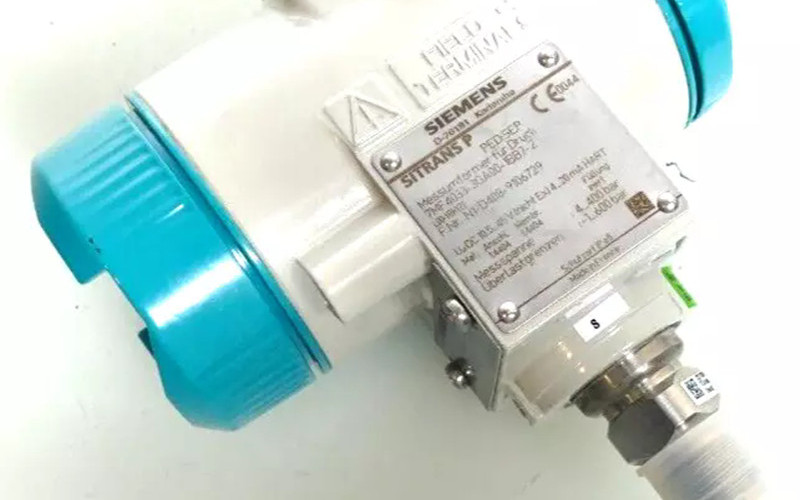

Siemens Pressure Transmitter 7MF4033

General Description

The Siemens 7MF4033 pressure transmitter is a highly accurate device for measuring gauge and absolute pressure in various industrial applications. Its robust design and advanced features ensure reliable performance even in challenging environments. The transmitter is suitable for SIL 2 applications, making it an ideal choice for industries requiring high safety standards.

Siemens 7MF4033 Technical Specifications

l Model: 7MF4033

l Measurement Range: 0 – 1 bar to 0 – 700 bar

l Accuracy: ≤ 0.065%

l Long-Term Stability: ≤ 0.125% over 60 months

l Output Signal:

l Current: 4 to 20 mA (HART)

l Voltage: 0 to 10 V DC (for measuring ranges ≥ 1 bar)

l Power Supply Voltage:

l For current output: 10 to 36 V DC

l Operating Temperature Range: -40°C to +85°C

l Protection Class: IP65

Siemens 7MF4033 Features

1. Advanced Diagnostics: Provides real-time data and alerts for maintenance needs.

2. SIL 2 Certified: Suitable for safety-critical applications by IEC standards.

3. Multiple Communication Protocols: Supports HART, PROFIBUS PA, and PROFIsafe in integrating various control systems.

4. Robust Construction: Designed to withstand harsh industrial environments.

Siemens 7MF4033 Applications

l Chemical processing

l Food and beverage industry

l Pharmaceutical manufacturing

l Water treatment facilities

Installation Procedure Step by Step

1. Preparation:

Ensure the installation area is clean and free from obstructions.

Gather all necessary tools and materials.

2. Mounting the Transmitter:

Choose an appropriate location based on application requirements.

Secure the transmitter using mounting brackets.

3. Connecting Pressure Lines:

Attach the pressure lines to the designated ports on the transmitter.

Ensure all connections are tight to prevent leaks.

4. Electrical Connections:

Connect power supply lines according to the provided wiring diagram.

Verify correct polarity when connecting power leads.

5. Configuration:

Power the device and configure settings using a HART communicator or local interface.

Adjust parameters such as measurement range as needed.

6. Testing:

Apply known pressure values to verify accuracy.

Check output signals with a multimeter or HART communicator.

7. Final Checks:

Inspect all connections for leaks or loose fittings.

Confirm that the device is correctly sealed against environmental factors.

Related Part Numbers

l SITRANS P320: 7MF4033

l SITRANS P420: 7MF4133 (flush mounted diaphragm)

l SITRANS P430: 7MF4233 (absolute pressure)

l SITRANS P440: 7MF4433 (differential pressure)
