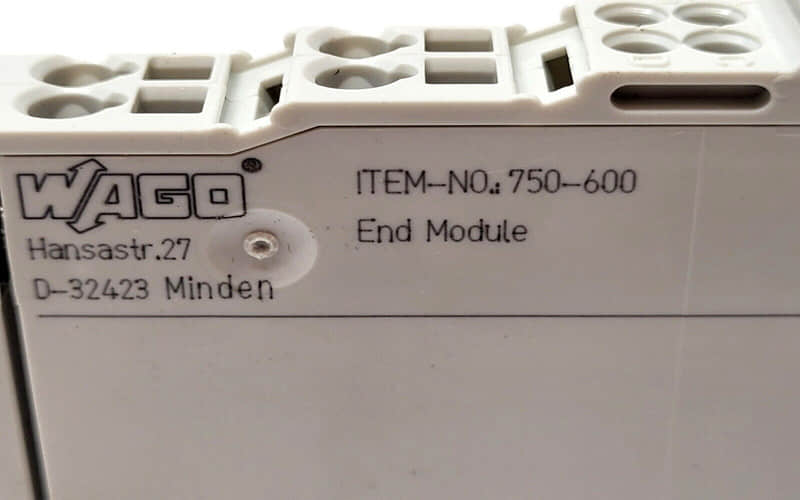

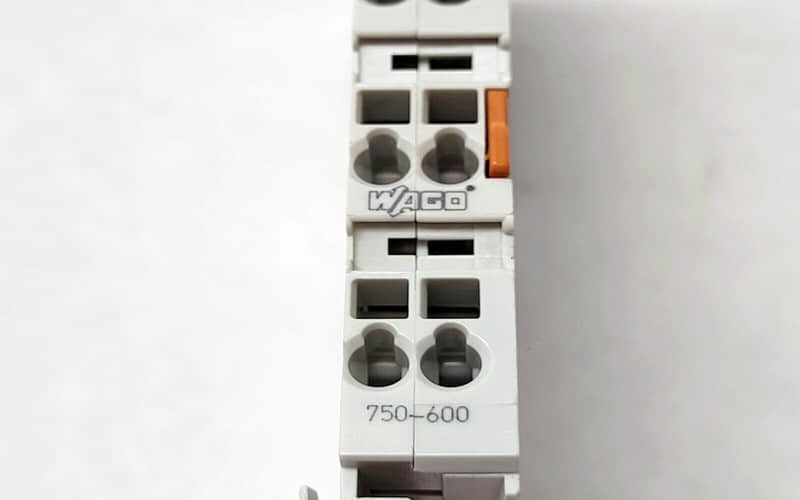

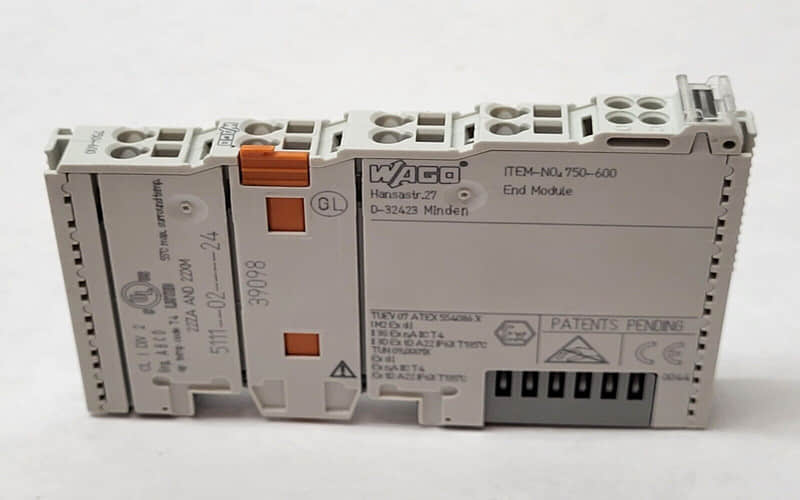

WAGO 750-600 End Module

General Description:

The WAGO 750-600 End Module is an essential component of the WAGO-I/O-SYSTEM 750, designed to terminate the internal bus of a fieldbus node. This module completes the internal data circuit, ensuring correct and reliable data flow within the system. It is compatible with WAGO-I/O-SYSTEM 750 couplers and controllers and is mounted at the end of a fieldbus node.

WAGO 750-600 Technical Specifications:

l Width: 12 mm (0.472 inch)

l Depth: 69.8 mm (2.748 inch)

l Height: 100 mm (3.937 inch)

l Weight: Approximately 32.056 - 33.5 g

l Color: Light gray

l Housing Material: Polycarbonate, polyamide 6.6

l Mounting Position: Horizontal (standing/lying) or vertical

l Mounting Type: DIN-35 rail

l Protection Type: IP20

l Vibration Resistance: 4g per IEC 60068-2-6

l Operating Temperature: -40 to 70°C

l Storage Temperature: -40 to 85°C

l EMC Immunity to Interference: According to EN 50082-2 (1996)

l EMC Emission of Interference: According to EN 50081-1 (1992)

WAGO 750-600 Features:

1. Completes Internal Data Circuit: Ensures correct data flow within the fieldbus node.

2. Compatibility: Designed for use with WAGO-I/O-SYSTEM 750 couplers and controllers.

3. DIN-35 Rail Mounting: Easy Installation on standard DIN-35 rails.

4. Compact Design: Slim 12 mm width for efficient use of space.

5. Durable Construction: Made with polycarbonate and polyamide 6.6 for robust performance.

6. Wide Temperature Range: Operates in extended temperature ranges from -40 to 70°C.

WAGO 750-600 Applications:

The WAGO 750-600 End Module is used in various industrial automation applications, including:

(1) Fieldbus Systems: Ensuring proper termination of the internal bus in fieldbus nodes.

(2) Industrial Automation: Providing reliable data communication in automated systems.

(3) Process Control: Supporting data integrity in process control environments.

(4) Manufacturing: Integration in manufacturing lines and equipment for stable operation.

Installation Procedure (Step by Step):

ü Mounting Rail Preparation: Ensure a proper electrical connection between the mounting rail and the frame or enclosure to guarantee sufficient grounding and avoid electric shock. The mounting rail should be corrosion-resistant and support electromagnetic compatibility measures.

ü Attaching the Module: Place the WAGO 750-600 end module onto the DIN-35 mounting rail. The module is designed to snap directly onto the rail.

ü Securing the Module: Press the module down onto the mounting rail from the top until it snaps audibly into place. The automatic locking mechanism ensures a secure hold.

ü Vertical Installation (if applicable): Use end clamps to secure the fieldbus node against sliding down.

ü Final Check: Ensure the module is securely in place, and all connections are properly aligned.

Wago 750 600 Manual or datasheet in PDF:

datasheet-197238-wago-750-600-plc-supply-module-750-600-1-pcs.pdf
