Discover the Wago 750 504: A Deep Dive into Its Features
1. Introduction to Wago 750 504

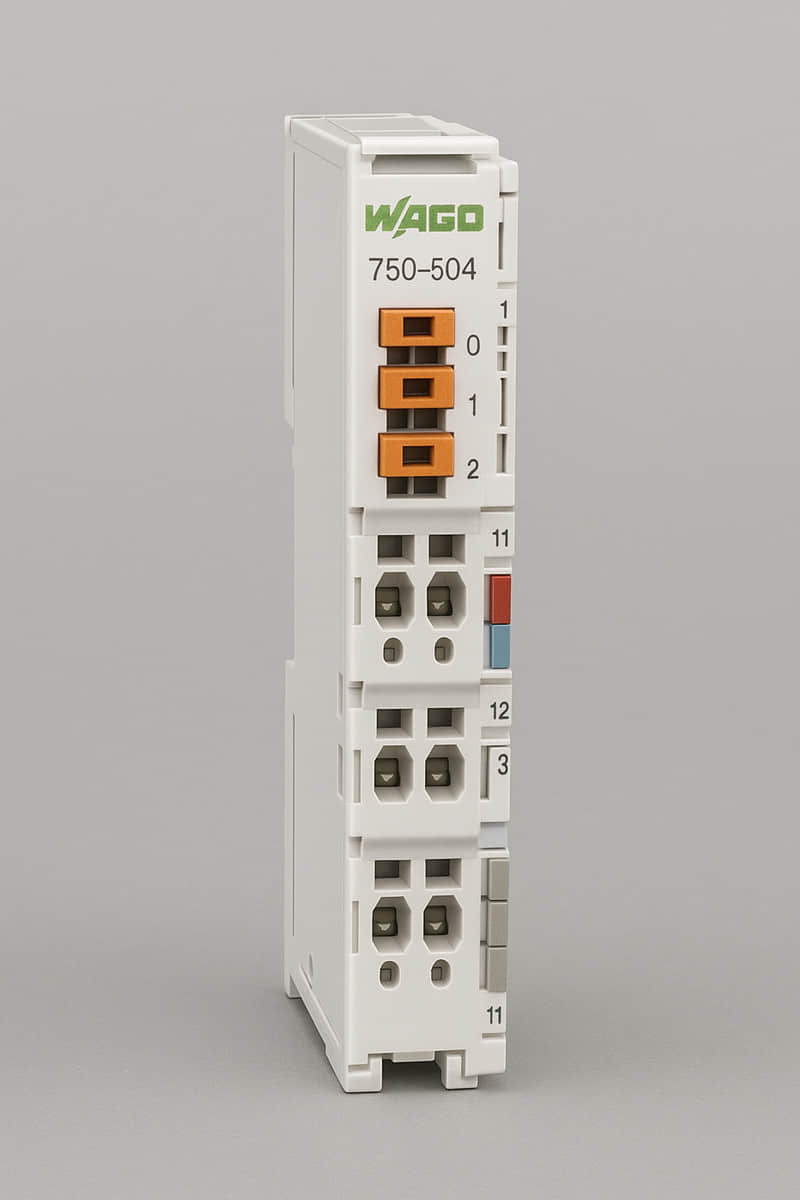

The Wago 750 504 is a standout component within the vast world of industrial Automation. The Wago 750-504 I/O module, part of the renowned Wago 750 series, streamlines and boosts control system efficiency. Whether you are new to Automation or want to optimize existing systems, knowing its capabilities is essential.
The Wago 750-504 is a key Digital Output Module in the Wago I/O System. It handles signals and controls processes in various industrial applications. It features eight digital outputs, each capable of handling up to 0.5 A. The design processes data efficiently and operates reliably across multiple environments.
1.1Overview of Wago Series
The Wago Series provides reliable electrical interconnection and automation solutions featuring tool-free spring-cage terminals, controllers, and I/O modules. Ideal for industrial and building Automation, its modular design enables easy customization. These durable, standards-compliant components support efficient wiring and system integration. Perfect for control panels and machinery, Wago products combine innovation with practicality for modern electrical applications.
Wago components deliver rugged, efficient performance in demanding environments, meeting global safety standards. Designed for Industry 4.0 and IoT, they offer innovative, sustainable automation solutions. Their combination of Reliability, flexibility, and energy efficiency makes them the top choice for professionals worldwide.
1.2Importance of Digital Outputs
The WAGO 750-504 digital output module provides reliable switching for actuators, valves, and indicators in automation systems. Its high-speed, precise control enhances operational efficiency while reducing wiring complexity. Compatible with PLCs and Industry 4.0 applications, this module ensures robust performance in harsh industrial environments. The 750-504’s diagnostic features and compact design make it ideal for scalable, energy-efficient automation solutions, supporting seamless IoT integration.
2. Features of Wago 750 504
The WAGO 750-504 digital output module features 16 channels, providing short-circuit protection and LED diagnostics for reliable automation control. Its compact, modular design enables seamless integration into WAGO’s I/O system. Operating at 12-24V DC, it excels in harsh industrial environments while meeting global standards. Ideal for Industry 4.0, this module ensures efficient, future-proof performance with quick installation and robust construction.
2.1Technical Specifications
l Channels: 16 digital outputs
l Output Type: Transistor (PNP)
l Rated Voltage: 24V DC (12-24V DC operating range)
l Current per Channel: 0.5A (max)
l Total Current: 4A (max)
l Switching Frequency: 1kHz
l Protection: Short-circuit and overload protection
l Diagnostics: LED per channel
l Connection: Spring-cage clamping
l Housing: Compact, modular design
l Standards: CE, UL, IEC 61131-2
l Operating Temperature: -25°C to +55°C
l Installation: DIN rail mounting
2.2Robustness and Reliability
Engineered for harsh industrial environments, the WAGO 750-504 withstands vibrations, shocks, and temperature extremes (-25°C to +55°C). Its short-circuit-proof transistor outputs and overload protection ensure uninterrupted operation. The corrosion-resistant spring-cage terminals maintain secure connections, while LED diagnostics enable quick fault detection. Compliant with IEC/UL standards, this module delivers fail-safe performance in demanding automation applications.
3. Integration with WAGO Controllers
3.1Compatibility with WAGO Fieldbus Couplers
The WAGO 750-504 digital output module seamlessly integrates with WAGO fieldbus couplers, supporting major industrial communication protocols like PROFIBUS, Modbus, and Ethernet/IP. This ensures flexible connectivity in diverse automation networks, enabling real-time data exchange and centralized control. The module’s plug-and-play design simplifies installation, reducing setup time while maintaining reliable performance in complex industrial systems.
Designed for full compatibility with WAGO’s programmable controllers (e.g., PFC200 series), the 750-504 module enables scalable and efficient automation solutions. Its modular architecture allows easy expansion within WAGO’s I/O system, while the unified software environment (e.g., CODESYS) streamlines programming and diagnostics. This synergy enhances system responsiveness and simplifies maintenance in innovative factory applications.
3.2Benefits of Using WAGO PLC Programming
WAGO PLC programming provides a user-friendly environment with CODESYS integration, facilitating the efficient development of automation applications. Its standardized IEC 61131-3 programming languages (LAD, FBD, ST) provide flexibility for diverse project requirements. The platform supports seamless hardware-software integration, reducing development time while ensuring reliable performance across industrial systems.
With built-in diagnostics and real-time monitoring capabilities, WAGO PLCs simplify troubleshooting and maintenance. Their modular design allows easy scalability, while cloud connectivity options enable Industry 4.0 implementations. This combination of versatility and robustness makes WAGO PLC programming ideal for modern automation challenges.
4. Applications of Wago 750 504
4.1Industrial Automation
The WAGO 750-504 digital output module is designed for demanding industrial environments, providing precise control of actuators, solenoid valves, and relays. It excels in conveyor systems, packaging machinery, and automated assembly lines, where reliable operation is critical. The module’s robust construction ensures consistent performance even in the most demanding conditions.
With built-in diagnostics and seamless PLC integration, the 750-504 supports advanced material handling systems, robotic workcells, and process automation. Its Industry 4.0 compatibility makes it ideal for innovative manufacturing applications, helping optimize productivity while reducing downtime in modern industrial facilities.
4.2Building Management Systems
The WAGO 750-504 module efficiently controls lighting, HVAC systems, and access control in smart buildings. Its reliable digital outputs manage pumps, fans, and alarms, while the compact design saves space in electrical cabinets. With robust performance and easy integration, it enhances energy efficiency and Automation in modern building management systems.
5. Why Choose Wago 750 504?
Choosing the Wago 750 504 means investing in a reliable, efficient, and flexible solution for your automation needs. Its integration capabilities, coupled with robust performance, make it a preferred choice for professionals looking to enhance their control systems. Whether you are setting up a new system or upgrading an existing one, the Wago 750 504 offers the Reliability and efficiency you need for optimal performance.
The Wago 750 504 is more than just a digital output module; it’s a key component in achieving efficient and reliable Automation. By understanding its features and applications, you can better leverage this technology to meet your specific industrial needs.
