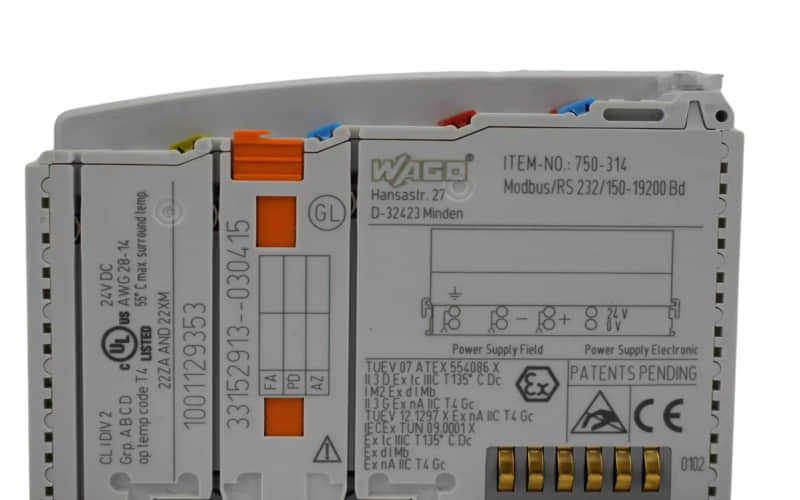

WAGO 750-314 Fieldbus Coupler MODBUS

General Description:

The WAGO 750-314 Fieldbus Coupler MODBUS is designed to connect the WAGO I/O SYSTEM 750 as a slave to the MODBUS fieldbus. This coupler is capable of supporting all bus modules and automatically configuring to create a local process image, which can include a mix of digital and analog signals

Technical Specifications of 750-314 MODBUS:

l MODBUS/RS 485 Interface

l RS 232 Connection

l Baud Rate: 19.2 kBd

l DIN Rail Mounting

l IP20 Protection Rating

l Voltage: 24 VDC

l Current: 700 mA

Detailed Features of 750-314 MODBUS :

1. The 750-314 Fieldbus Coupler MODBUS offers a universal, compact, and economical solution for connecting WAGO Series 750 to various fieldbus systems

2. . It automatically detects all connected I/O modules and creates a local process image, simplifying the integration process and reducing configuration time.

Applications:

This coupler is suitable for various industrial automation applications requiring MODBUS communication. It can be used in new installations or to retrofit existing systems, providing a reliable interface for data exchange between the WAGO I/O SYSTEM 750 and MODBUS-compatible devices.

Installation of 750-314 MODBUS :

The WAGO 750-314 installation involves mounting it on a DIN rail and connecting it to the WAGO I/O SYSTEM 750 and the MODBUS Fieldbus. The coupler's design allows easy integration into existing systems, with clear instructions in the WAGO manual to ensure proper connection and configuration.

Related Part Numbers of the Same Series:

l 750-312: MODBUS/RS 485 Interface

l 750-315: MODBUS/RS 485 Interface

l 750-316: MODBUS/RS 485 Interface
