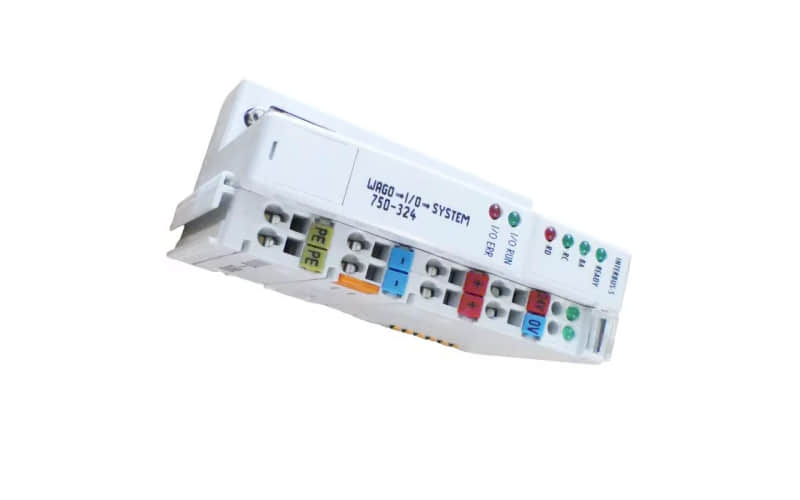

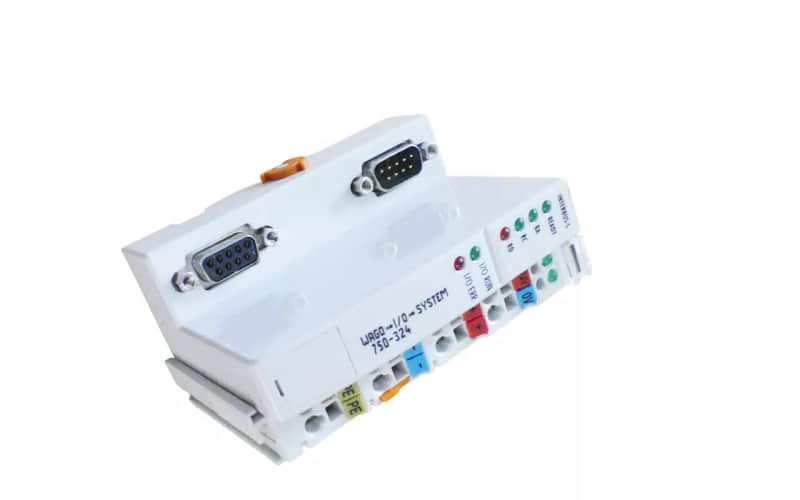

WAGO 750-324 Interbus S-Coupler

General Description:

The WAGO 750-324 Interbus S-Coupler is a fieldbus coupler designed to connect the WAGO I/O SYSTEM 750 as a slave to the INTERBUS fieldbus. This coupler can support all digital bus modules. It automatically configures to create a local process image, including digital process data or low volumes of analog process data.

1. Technical Specifications:

l INTERBUS Fieldbus Coupler with data rate up to 500 baud

l Supports digital signals

l System supply is provided directly by the coupler

l Field supply is provided via a separate supply module

l Recognizes all connected I/O modules and creates a local process image

Detailed Features of WAGO 750-324 :

The 750-324 Interbus S-Coupler allows the transfer of the process image via the INTERBUS fieldbus to the memory of the control system. The local process image is divided into two data zones containing the data received and the data to be sent. The process data can be sent via the INTERBUS fieldbus to a control system for further processing. The data of the analog modules is stored in the process image that is created automatically according to the order in which the modules are connected to the coupler.

Applications of WAGO 750-324 :

The WAGO 750-324 is suitable for applications with a low data width in the process image, primarily applications that use digital or only low volumes of analog process data. It is ideal for use in control systems where INTERBUS communication is required, ensuring efficient data transfer and system integration.

Installation of WAGO 750-324:

The WAGO 750-324 installation involves mounting it on a DIN rail and connecting it to the WAGO I/O SYSTEM 750 and the INTERBUS Fieldbus. The coupler's design allows easy integration into existing systems, with clear instructions in the WAGO manual to ensure proper connection and configuration.

Related Part Numbers of the Same Series:

l 750-344: Fieldbus Coupler INTERBUS; 500 kbit/s; ECO

l 750-304: Interbus Coupler
