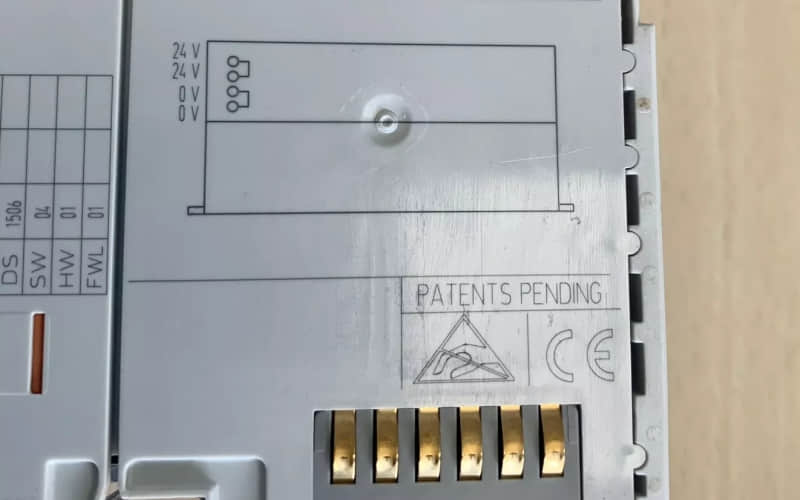

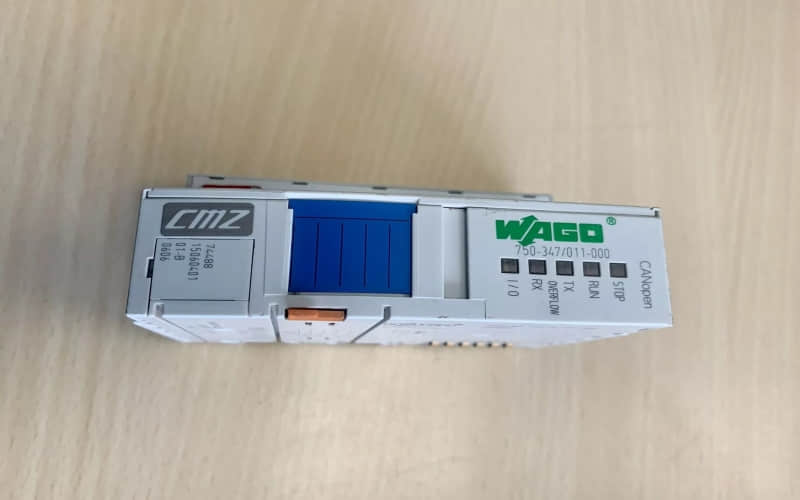

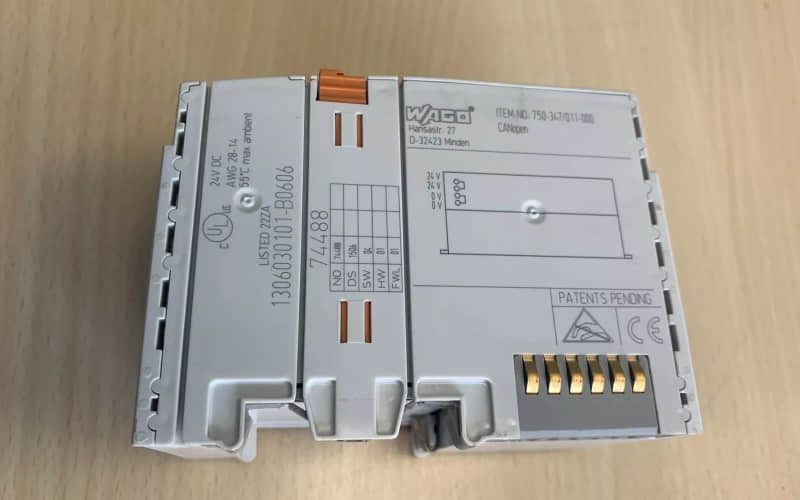

WAGO 750-347 Fieldbus Coupler CANopen

Technical Specifications of 750-347 Fieldbus :

l Communication: CANopen

l Number of fieldbus nodes on the master max.: 110

l Baud rate: 10 kBd to 1 MBd

l Fieldbus segment length max.: 1000 m

l Transmission medium: Shielded Cu cable 3 x 0.25 mm

l Number of modules per node max.: 64

l Other CANopen features: Lifeguarding

l No. of PDOs: 5 Tx / 5 Rx

l No. of SDOs: 1 server SDO

l COB ID distribution: SDO, standard

l Node ID distribution: DIP switches

l Communication profile: DS-301 V4.1

l Device profile: Programmable error response

l Input and output process image (Fieldbus) max.: 32 Byte/32 Byte

l System supply voltage: DC 24 V(-25% to +30%); via wiring level

l Current consumption, system supply (5 V): 350 mA

l Total current for system supply: 650 mA

l Input current type. at rated load (24 V): 260 mA

l Efficiency of the power supply (typ.) at nominal load (24 V): 80 %

l Connection technology: communication/Fieldbus: CANopen: 1 x 5-pole male connector

l Connection technology: system supply: 4 x CAGE CLAMP

l Connection technology: Device configuration: 1 x 4-pole male connector

Detailed Features of 750-347 Fieldbus :

The WAGO 750-347 Fieldbus Coupler CANopen is designed to detect all connected I/O modules and create a local process image. The regional process image is divided into two data zones containing the data received and the data to be sent. The process data can be sent via the CANopen bus to a control system for further processing. The data of the analog modules is stored in the PDOs according to the order in which the modules are connected to the coupler. The bits from the digital modules are sent byte by byte and also mapped in the PDOs. The coupler automatically starts with a new byte if the amount of digital I/O information exceeds eight bits. All object directory entries can be mapped as required in the five Rx PDOs and five Tx PDOs. The complete input and output process image can be transmitted using SDOs.

Applications of 750-347 Fieldbus:

The WAGO 750-347 is suitable for applications with a reduced scale I/O requirement, using digital-only process data or small amounts of analogs. It is ideal for control systems where CAN-open communication is required, ensuring efficient data transfer and system integration.

Installation:

The WAGO 750-347 is mounted on a DIN-35 rail and connected to the field bus and system supply. The coupler's design allows easy integration into existing systems, with clear instructions in the WAGO manual to ensure proper connection and configuration.

Related Part Numbers of the Same Series:

l 750-337: Fieldbus Coupler CANopen; MCS

l 750-337-025-000: Fieldbus Coupler CANopen; MCS; Ext. Temperature

l 750-348: Fieldbus Coupler CANopen; D-Sub; ECO

l 750-346: Fieldbus Coupler DeviceNet; ECO
