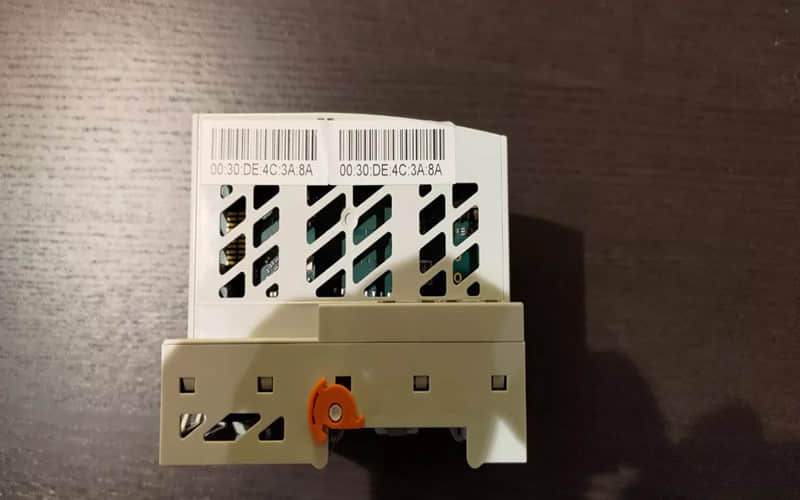

WAGO 750-362 PLC Module - Fieldbus Coupler Modbus TCP

General Description:

The WAGO 750-362 PLC Module, also known as the Fieldbus Coupler Modbus TCP, is a fourth-generation device that connects Ethernet to the modular WAGO I/O System. It detects all connected I/O modules and creates a local process image, ensuring efficient communication within industrial automation setups.

Technical Specifications:

l The coupler is designed for Fieldbus communication in Modbus networks and supports various standard Ethernet protocols.

l It features two Ethernet interfaces that support auto-negotiation and Auto-MDI(X), which can be used for IP address assignment (DHCP, BootP, static).

l The coupler provides the system supply directly, while the field supply is provided via a separate supply module.

l The coupler also includes an integrated Webserver for user configuration and status display.

Detailed Features of 750-362:

1. The 750-362 Modbus TCP/UDP Fieldbus Coupler connects Ethernet to the WAGO I/O System, creating a local process image by detecting all connected I/O modules.

2. The coupler has two Ethernet interfaces and an integrated switch, which allows for a line topology wiring, eliminating the need for additional network devices.

3. It supports auto-negotiation and Auto-MDI(X) on both interfaces and can be configured using a DIP switch for the last byte of the IP address.

4. The coupler is designed to work with a wide range of standard Ethernet protocols, enhancing its compatibility with various network systems.

Applications:

The WAGO 750-362 PLC Module is ideal for machine and plant construction, process industry, and building technology applications. It provides reliable communication in MODBUS networks and supports various standard Ethernet protocols, making it a versatile solution for industrial automation.

Installation of 750-362 :

Installing the WAGO 750-362 PLC Module involves connecting it to the WAGO I/O System and configuring the IP address using the DIP switch or through the integrated Webserver. The coupler can be easily mounted on a DIN rail, and the system supply is provided directly by the coupler. In contrast, the field supply is provided via a separate supply module.

Related Part Numbers of 750-362:

l 750-362: Standard Fieldbus Coupler Modbus TCP

l 750-362/040-000: Extreme version of the Fieldbus Coupler Modbus TCP, designed for operation in extreme environments with extended temperature range, greater immunity to impulse voltages and electromagnetic interference, and higher vibration and shock resistance.
