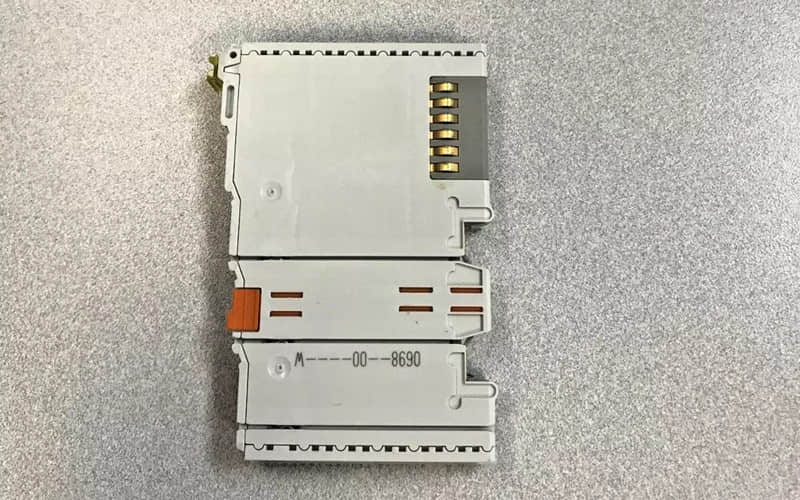

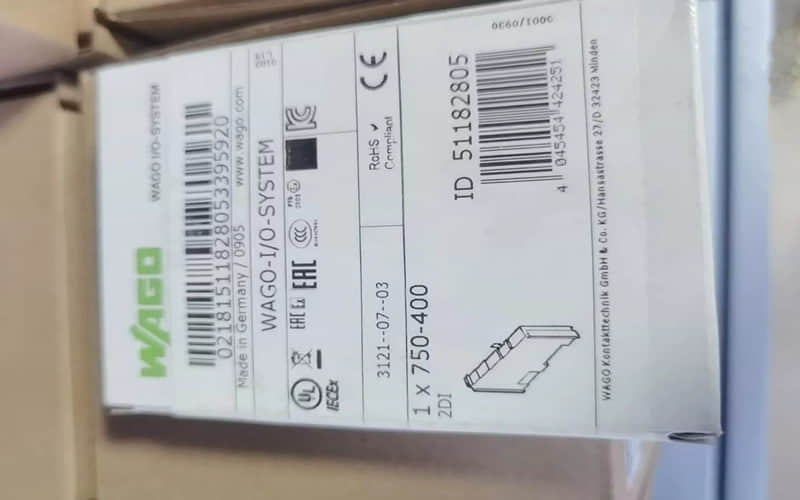

WAGO 750-400 2-Channel Digital Input Module

General Description:

The WAGO 750-400 is a 2-channel digital input module that receives control signals from field devices such as sensors. It is part of the WAGO I/O System 750, designed for industrial automation and control applications where reliable signal processing is crucial. The module is known for its noise rejection capabilities and electrical isolation between field and system levels, ensuring safety and accurate signal transmission.

Technical Specifications:

l The module is designed for 24 VDC operations with a response time of 3 ms.

l It features a noise-rejection filter for each input to prevent interference and ensure clean signal reception.

l Electrical isolation is provided between the field and system levels for added safety.

l The module supports a 2- to 4-conductor connection, offering flexibility in wiring options.

Detailed Features of 750-400 :

1. The 750-400 module is a 2-channel, 4-conductor device that can be used with sensors that require a ground connection.

2. It has a built-in noise-rejection filter to mitigate the effects of electrical noise in the environment.

3. The module provides electrical isolation, which helps prevent ground loops and protects against voltage surges.

4. The 750-400 is compatible with various digital field devices and can be easily integrated into the WAGO I/O System.

Applications of 750-400 :

The WAGO 750-400 2-Channel Digital Input Module is suitable for a variety of applications in industrial automation, including but not limited to machine control, process monitoring, and building automation systems. Its ability to receive control signals from digital field devices makes it ideal for precise signal detection applications.

Installation:

The WAGO 750-400 module installation involves mounting it on a DIN rail and connecting it to the power supply and field devices. The module's design allows for easy integration with other components of the WAGO I/O System, simplifying the overall installation process.

Related Part Numbers of 750-400 :

l 750-400: Standard 2-channel digital input module with a 3 ms response time.

l 750-400/025-000: This 750-400 module variant is designed for operation in extended temperature ranges, providing additional flexibility in harsh industrial environments.
