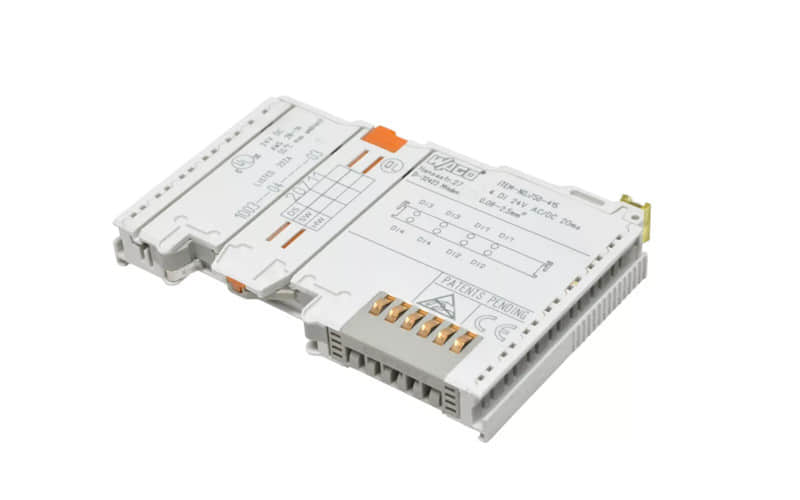

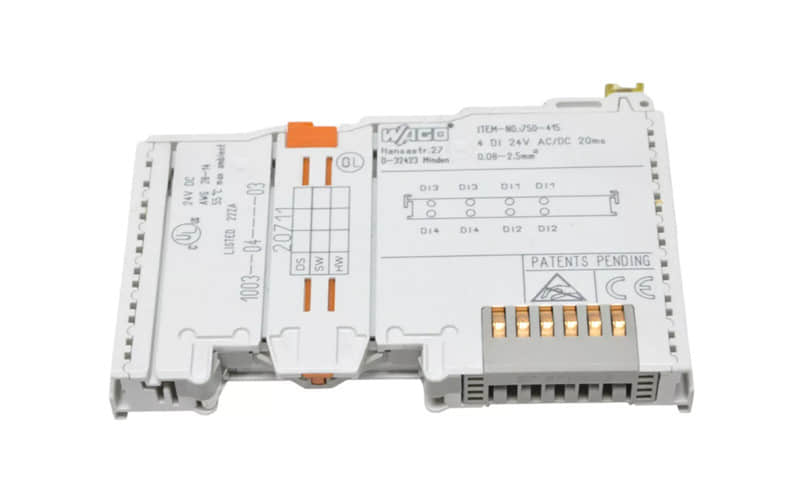

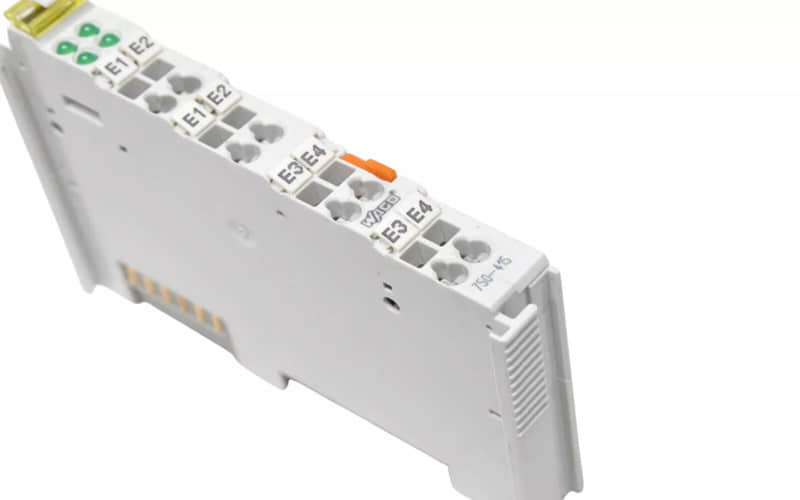

WAGO 750-415 4-Channel Digital Input Module

General Description:

The WAGO 750-415 is a 4-channel digital input module designed to receive control signals from field devices such as sensors. It is part of the WAGO I/O System 750 and is known for its versatility in handling AC and DC voltages, noise rejection capabilities, and electrical isolation for enhanced safety.

Technical Specifications of 750-415 :

l The module is designed for 24V AC/DC operation with a response time of 20 ms.

l Each input channel has a bridge rectifier, capacitor, and current limitation for reliable AC/DC operation.

l The module features a noise-rejection filter with an integrated time constant of 20 ms for each input.

l Field and system levels are electrically isolated, and all inputs are isolated for safety.

l The module consumes an internal current of 10 mA and has an input current of 7.5 mA DC and 9.5 mA AC.

Detailed Features of 750-415 :

1. The 750-415 module receives signals from digital field devices and is designed for 2-conductor connections.

2. It includes an optocoupler for electrical isolation between the bus and field side, ensuring safety and preventing ground loops.

3. The module is compatible with the WAGO I/O System 750 and can be used with all couplers/controllers within this system.

Applications:

The WAGO 750-415 is ideal for industrial automation applications where digital signals must be processed reliably. It is suited for machine control, process monitoring, and building automation systems where accurate signal detection is critical.

Installation of 750-415:

The WAGO 750-415 installation involves mounting it on a DIN rail and connecting it to the power supply and field devices. The module's design allows for easy integration with other components of the WAGO I/O System, simplifying the overall installation process.

Related Part Numbers:

l 750-415: 4-channel digital input module with a 20 ms response time for AC/DC 24V operations.

l 753-415: This variant of the 750-415 module is designed for operation without a connector.
