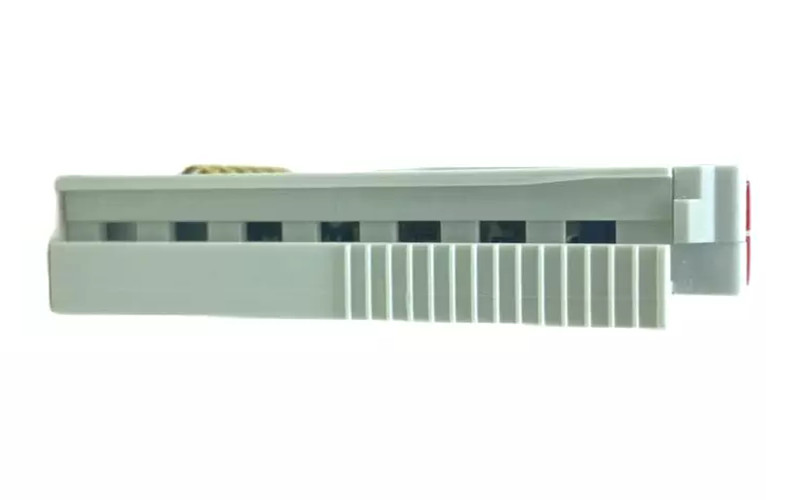

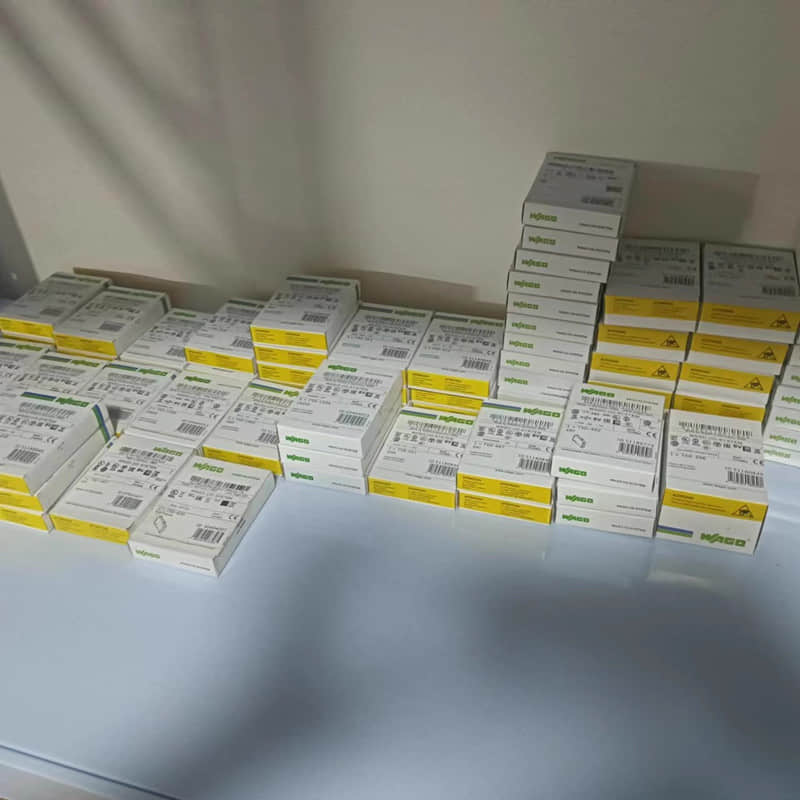

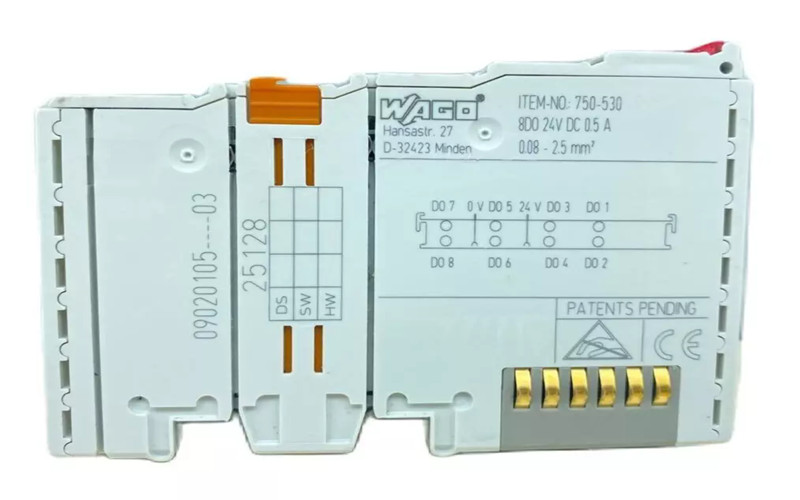

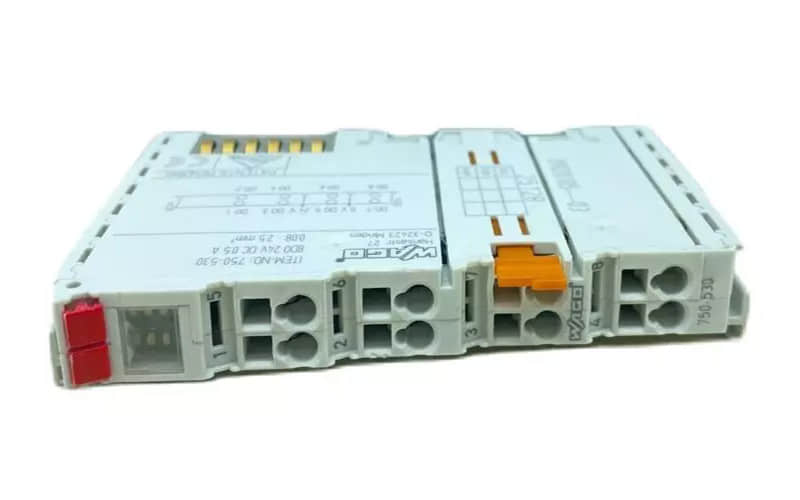

WAGO 750-530 8-Channel Digital Output 24 VDC 0.5 A Technical Guide
Wago 750 530 DataSheet or datenblatt in pdf:
General Description
The WAGO 750-530 (frequently referenced in procurement documentation as 750-530 wago or 750530) is an industry-standard 8-channel digital output module engineered for modern industrial automation systems. As a core component of the WAGO I/O System 750, it is globally recognized for its exceptional reliability, space-saving modular architecture, and robust field performance. Whether you are integrating a brand-new control cabinet or sourcing components matching legacy internal tracking codes like 750 53008, wago 750 530032, or wago 750-530011, this module provides precise, high-density switching for automated manufacturing lines, material handling systems, and packaging machinery.
Technical Specifications & Datasheet Reference
For engineers and procurement teams auditing system requirements or reviewing official documentation—such as reference PDFs like A700000011330296.pdf or searching for an official wago 750 530 datasheet—the core electrical and mechanical parameters are structured below:
| Technical Parameter | Specification Standard |
| Product & Series | WAGO I/O System 750 (750 530 wago) |
| Signal Type (Voltage) | 24 VDC nominal field supply |
| Output Current Per Channel | 0.5 A continuous load capacity |
| Channel Density | 8 digital output channels |
| Protection Features | Electronic short-circuit protection on all outputs |
| Electrical Isolation | Optoelectronic isolation between field and system levels |
| Module Width | 12 mm (0.47 inch ultra-compact footprint) |
| Height & Profile | 67.8 mm / 2.669 inch |
| Operating Temperature Range | $0\text{ }^\circ\text{C}$ to $+55\text{ }^\circ\text{C}$ |
| Storage Temperature Range | $-40\text{ }^\circ\text{C}$ to $+85\text{ }^\circ\text{C}$ |
| Protection Rating & Environment | IP20; Pollution Degree 2 per IEC 61131-2; 95% max relative humidity (non-condensing) |
| Vibration & Shock Resistance | Vibration: 4g per IEC 60068-2-6; Impact: 15g per IEC 60068-2-27 |
| EMC & Compliance | EN 61000-6-2 (Immunity); EN 61000-6-4 (Emission for industrial & marine applications) |
Core Features & Operational Benefits
High-Density Output Control: As a premier WAGO digital output module, it efficiently bridges controller logic with field actuators, transmitting control signals to electromagnetic valves, contactors, pilot relays, and indicator lamps.
Space-Saving 12 mm Profile: Delivers 8 independent output channels within a remarkably narrow 12 mm width, maximizing DIN-rail real estate in high-density control cabinets.
Built-In Diagnostic Safety: Equipped with automatic short-circuit protection on every output channel, safeguarding internal circuitry and preventing cascading hardware failures during field wiring faults.
Galvanic Isolation: Electrical isolation between system logic and field power minimizes electromagnetic interference (EMI), ensuring stable communication in harsh industrial facilities.
Typical Industrial Applications
The WAGO 750-530 module is trusted across diverse engineering sectors requiring reliable discrete control signal distribution:
Automated manufacturing cells and CNC machining centers
High-speed packaging machinery and automated sorting systems
Material handling conveyors, automated storage and retrieval systems (AS/RS)
Process control panels requiring compact modular bus couplers
Installation & Wiring Guide
Mechanical Mounting: Align the module on a standard 35 mm DIN rail and push downward until the locking mechanism engages securely.
CAGE CLAMP® Connection Technology: Utilize WAGO’s maintenance-free spring pressure connection technique. Insert solid or ferruled conductors directly into clamping units without requiring special hand tools, ensuring secure vibration-proof contact.
Power and Field Wiring: Connect the 24 VDC field power supply to the designated power jumper contacts, ensuring proper polarity and adherence to system bus specifications.
Functional Testing: Power on the node controller, verify module LED status indicators, and execute test commands through your PLC programming environment to confirm channel switching accuracy.
Part Number Cross-Reference & Inventory Management
When maintaining legacy automated equipment, auditing bills of materials, or matching internal enterprise resource planning (ERP) strings—such as looking up variant codes like wago 750 530032, wago 750-530011, 750 53008, 750 530 wago, or specialized internal references like 750/1.0501750 5—compatibility relies strictly on verifying buscoupler protocol compatibility, operating voltage, and physical pinout geometry.
If you require official WAGO datasheets, terminal jumper accessories, or competitive bulk quotations for your industrial automation project, please contact our technical support team.
